Alloy Artifacts

Later Contract-Production Socket Sets

An earlier section provided an introduction to the Billings Early Socket Sets, and in this section we'll look at their later offerings in this category, from about 1930 onward.

Billings relied on outside contract manufacturers to produce all of their sockets and most of their drive tools from 1930 onward. Based on a careful examination of tool examples, the major producers of Billings-marked sockets and drive tools have been identified as Walden, Herbrand, and Wright, in approximate chronological order. In addition, New Britain Machine has recently been identified as a secondary provider of socket tools, beginning in the earlier years when Walden was the major supplier and continuing into the 1950s.

Walden was the primary supplier for Billings from 1930 through at least the early 1940s, with New Britain Machine playing a secondary role. Herbrand became the major supplier in the mid 1940s and continued until at least the mid 1950s.

Wright appears to have become a supplier of drive tools initially in the late 1940s, overlapping with Herbrand during this period. By the mid to late 1950s Wright was probably the primary supplier of sockets, and continued in this role even after Billings was acquired by Crescent Niagara. During the 1950s New Britain Machine continued as the supplier of 1/4-drive sockets, with catalog illustrations clearly showing their socket design.

Continuing the framework set out in the earlier section, we'll divide the late production into two periods.

The sections below will show examples from each of these periods.


Chrome Alloy Period

By 1930 Billings had switched to the industry standard female drive for its sockets. A catalog from this year entitled "Socket Wrenches and Handle Units" shows a number of Billings socket sets and drive tools, with drive sizes of 1/2 square, 3/4 square, and 1 inch hex drive, and with sockets made of alloy steel.

A 1931 Samuel Harris catalog (published in late 1930) also shows a similar collection of Billings socket sets. In addition, the Harris catalog offered two miniature socket sets for ignition service.

The sockets and tools supplied at this time bear a striking similarity to those produced by Walden-Worcester, allowing us to identify Walden as the contract manufacturer for most of these tools. In particular, Walden was the earliest known producer of tools with 1 inch hex drive, having offered these as early as 1928 (or before). Williams and Armstrong also produced 1 inch hex drive tools, but their production appears not to have commenced until 1931, and the somewhat earlier reference for the Billings tools of this size points to Walden.

5/16-Hex Drive No. 5200/5201 Ignition Socket Sets

[1931 Catalog Listing for Billings No. 5200 Ignition Socket Set]

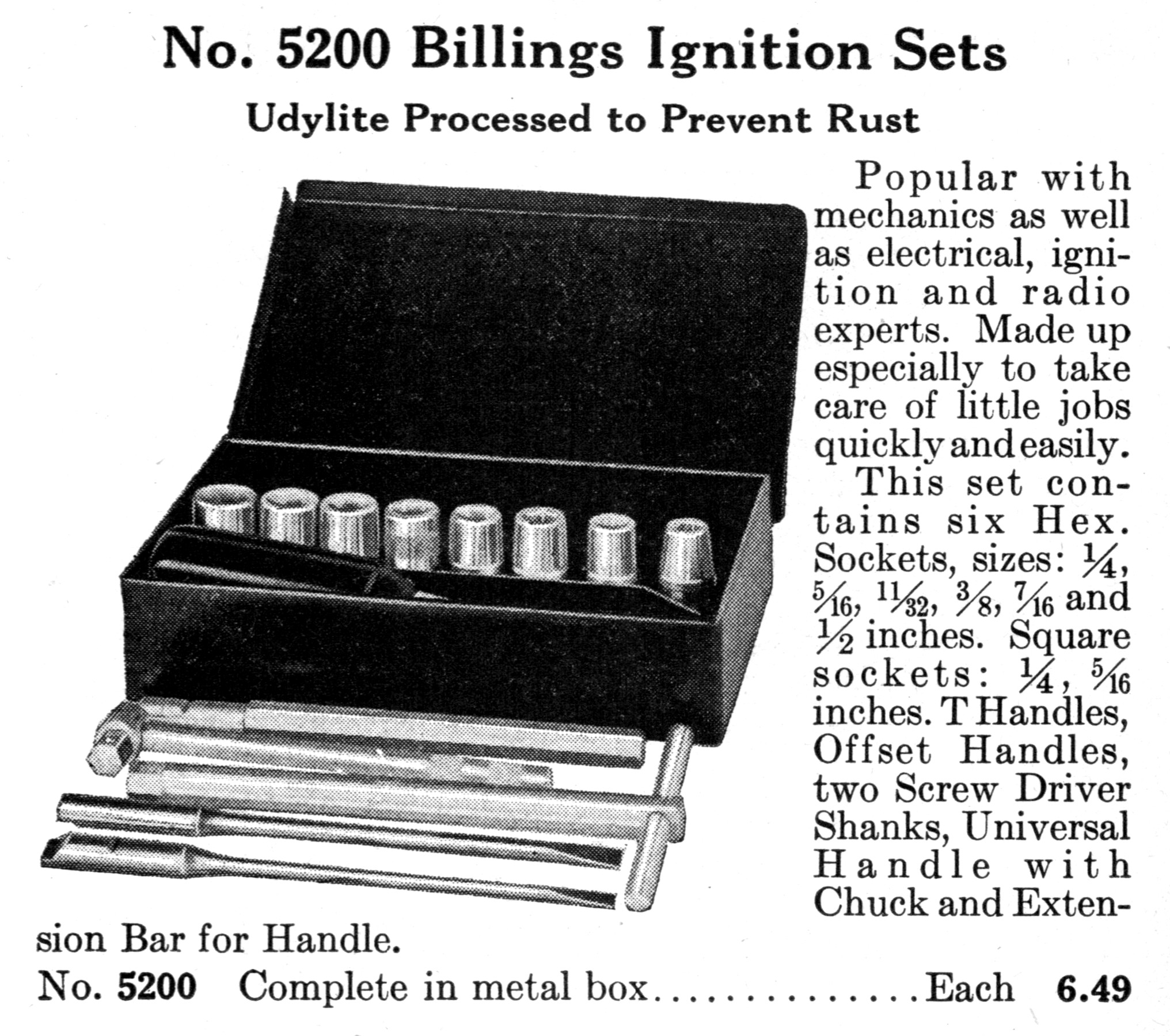

Fig. 256. 1931 Catalog Listing for Billings No. 5200 Ignition Socket Set.

The scan in Fig. 256 shows a listing for a Billings No. 5200 ignition socket set, as published on page 524 of the 1931 catalog No. 57 from Samuel Harris & Company of Chicago.

Although the drive size is not noted in the text, this set is believed to have been a repackaging of the Walden No. 68 5/16-Hex Drive Socket Set.

Billings also offered a similar No. 5201 ignition set, which substituted 10 chrome-vanadium ignition wrenches for the handle driver and screwdriver bits.


5824 1/2-Drive Chrome 12-Point Socket

[Billings Chrome 1/2-Drive 5824 3/4 Socket]

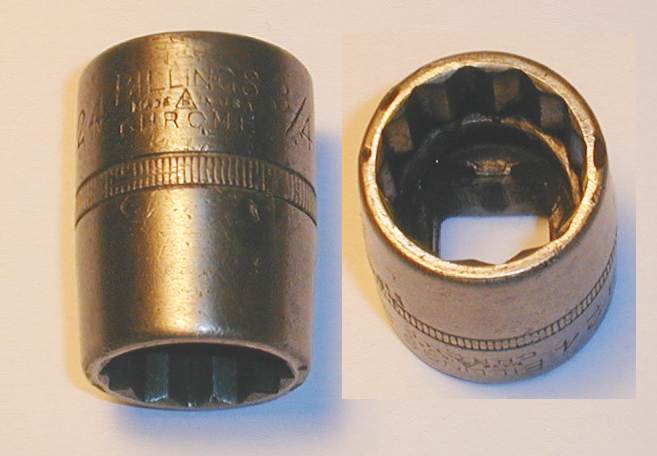

Fig. 257. Billings Chrome 1/2-Drive 5824 3/4 Socket, with Inset for Broaching, ca. 1930-1937.

Fig. 257 shows a 1/2-drive Billings 5824 3/4 socket, marked "Made in U.S.A." and "Chrome" with the B-Triangle logo. The socket has a knurled band around the center, and the upper part has tapered walls.

The finish is plain steel.

This socket is basically identical to the Walden 8xx series sockets in construction and dimensions, as can be seen from the Walden-Worcester 8xx Sockets. (We'll add a side-by-side comparison photograph at some point.)


5128 1/2-Drive Chrome 8-Point 7/8 Socket

[Billings 1/2-Drive 5128 8-Point 7/8 Socket]
Fig. 258. Billings Chrome 1/2-Drive 5128 8-Point 7/8 Socket, with Inset for Broaching, ca. 1930-1937.

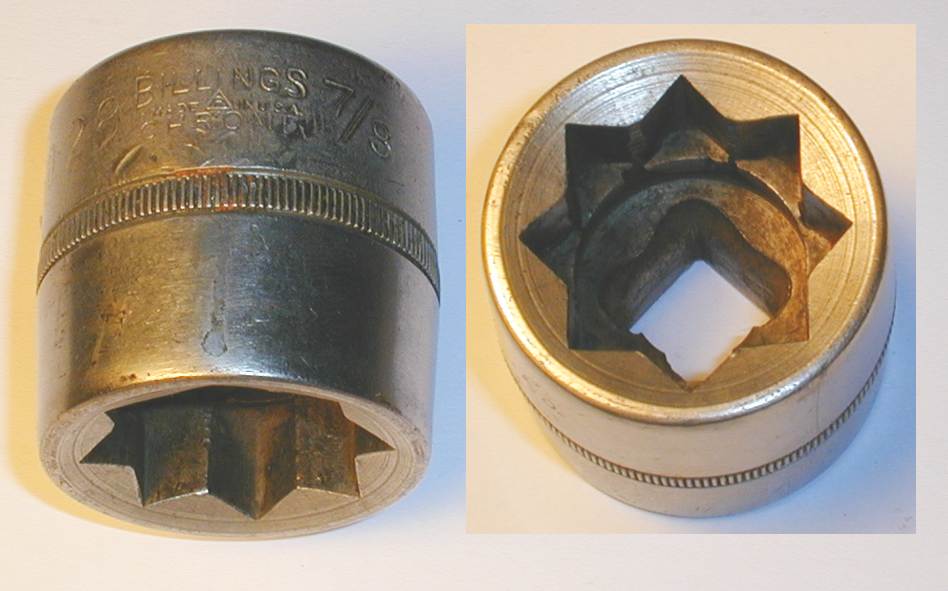

Fig. 258 shows a Billings "Chrome" 1/2-drive 5128 7/8 socket with an 8-point broaching, marked "Made in U.S.A." and "Chrome" with the B-Triangle logo.

The socket has a knurled band around the center, and the upper part has tapered walls.


5136 1/2-Drive Chrome 8-Point 1-1/8 Socket

[Billings 1/2-Drive 5136 8-Point 1-1/8 Socket]
Fig. 259. Billings 1/2-Drive 5136 8-Point 1-1/8 Socket, with Inset for Broaching, ca. 1930-1937.

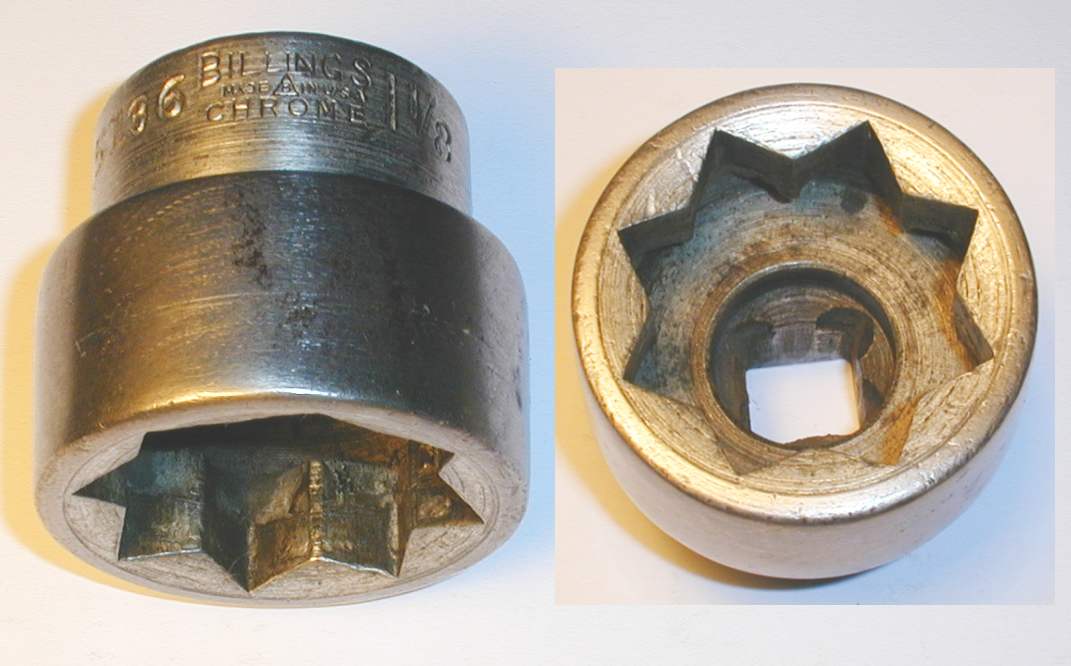

Fig. 259 shows a Billings "Chrome" 1/2-drive 5136 1-1/8 socket with an 8-point broaching, marked "Made in U.S.A." and "Chrome" with the B-Triangle logo.

The socket has a reduced base, and the upper part has straight walls.


5820 1/2-Drive Vitalloy 12-Point Socket

[Billings Vitalloy 1/2-Drive 5820 12-Point 5/8 Socket]
Fig. 260. Billings Vitalloy 1/2-Drive 5820 12-Point 5/8 Socket, with Insets for Broaching and Marking Detail, ca. 1937 to Early 1940s.

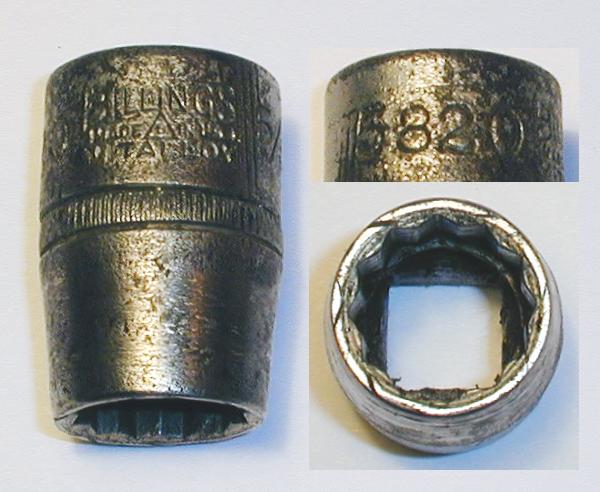

Fig. 260 shows a 1/2-drive Billings Vitalloy 5820 5/8 socket, marked "Made in U.S.A." with the B-Triangle logo and "Vitalloy" trademark.

The finish is chrome plating, though much has been lost to wear and rust.

The socket has a knurled band around the center, and the upper part has tapered walls.

Billings began using the "Vitalloy" trademark in 1937, allowing us to establish a somewhat later production date for the "Vitalloy" examples.


5132 1/2-Drive Vitalloy 8-Point 1 Inch Socket

[Billings Vitalloy 1/2-Drive 5132 8-Point 1 Inch Socket]
Fig. 261. Billings Vitalloy 1/2-Drive 5132 8-Point 1 Inch Socket, with Inset for Broaching, ca. 1937 to Early 1940s.

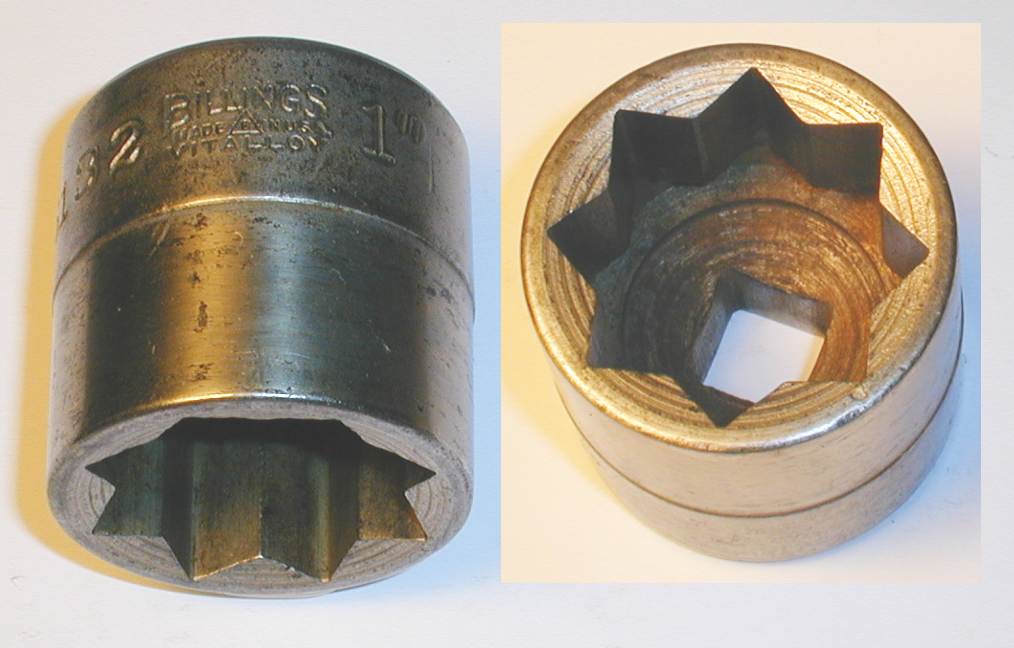

Fig. 261 shows a 1/2-drive Billings Vitalloy 5132 8-point (double-square) 1 inch socket, stamped "Made in U.S.A." with the B-Triangle logo and "Vitalloy" trademark. The finish is chrome plating.

The upper walls of the socket a slightly tapered.

Billings began using the "Vitalloy" trademark in 1937, allowing us to establish a somewhat later production date for the "Vitalloy" examples.


5856 1/2-Drive Extension

[Billings 1/2-Drive 5856 Extension]
Fig. 262. Billings 1/2-Drive 5856 Extension, with Inset for Logo, ca. 1930 to Early 1940s.

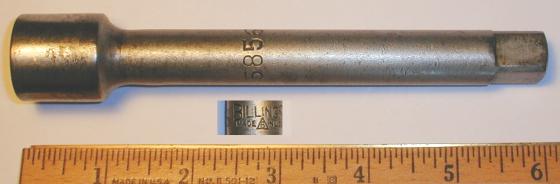

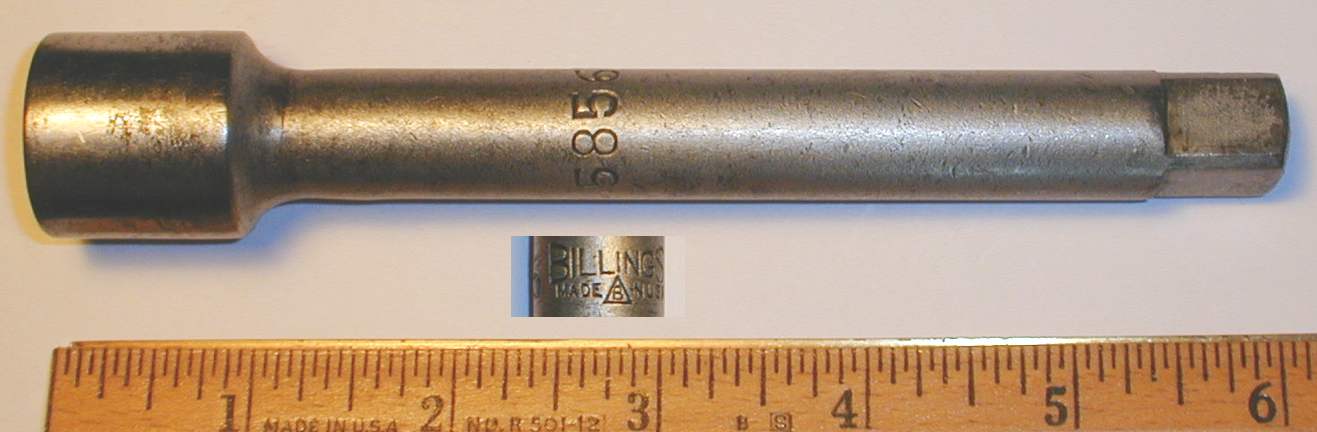

Fig. 262 shows a 1/2-drive Billings 5856 6 inch extension, stamped "Made in U.S.A." with the B-Triangle logo.

The overall length is 6.0 inches, and the finish is chrome plating.


5859 1/2-Drive Sliding Tee Head

[Billings 5859 1/2-Drive Sliding Tee Head]
Fig. 263. Billings 5859 1/2-Drive Sliding Tee Head, with Inset for Detail.

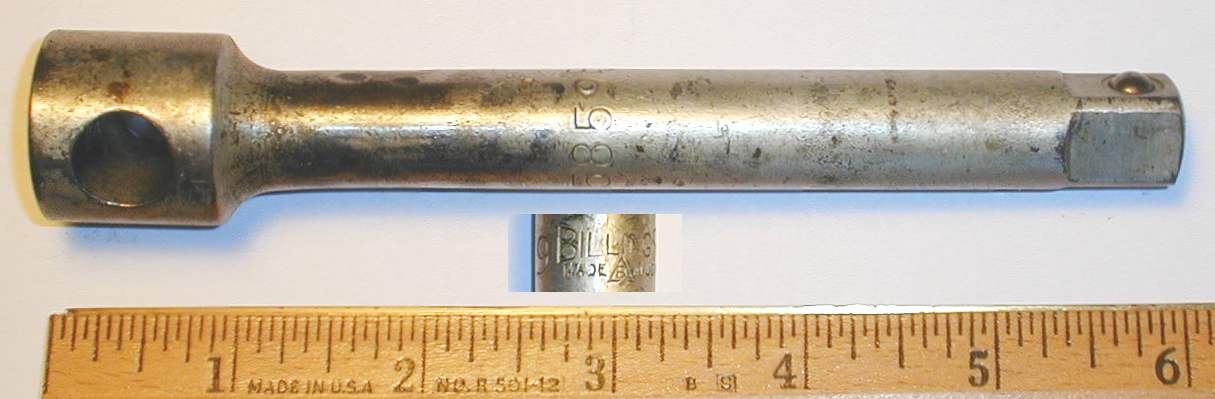

Fig. 263 shows a 1/2-drive Billings 5859 sliding Tee head, stamped "Made in U.S.A." with the B-Triangle logo.

The overall length is 6.0 inches, and the finish is chrome plating.


5861 1/2-Drive Ratchet Drive Plug

[Billings 5861 1/2-Drive Ratchet Drive Plug]
Fig. 264. Billings 5861 1/2-Drive Ratchet Drive Plug, with Inset for Back Side.

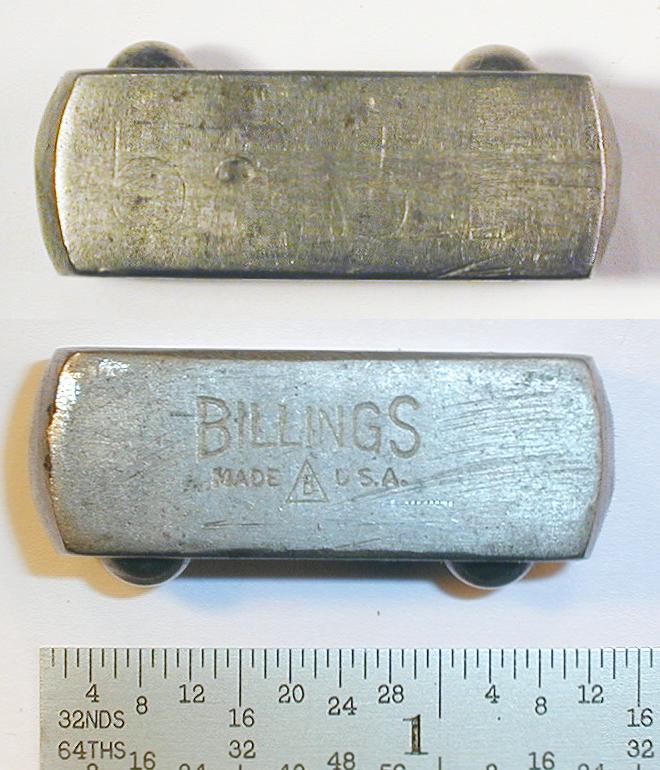

Fig. 264 shows a 1/2-drive Billings 5861 ratchet drive plug, stamped "Made U.S.A." with the B-Triangle logo, and with the model number on the back side.

The overall length is 1.4 inches, and the finish is plain steel or possibly cadmium plating.


5475 1/2-Drive Socket Set

This next figure shows a Billings No. 5475 socket set, a substantial collection of 1/2-drive tools recommended for garages, industrial plants, factories, and machine shops. As toolboxes were optional with Billings socket sets -- and our set was acquired without a box -- we've taken the liberty of presenting it in an older (non-Billings) toolbox.

[Billings 5475 1/2-Drive Socket Set]
Fig. 265. Billings 5475 1/2-Drive Socket Set, ca. Early 1930s.

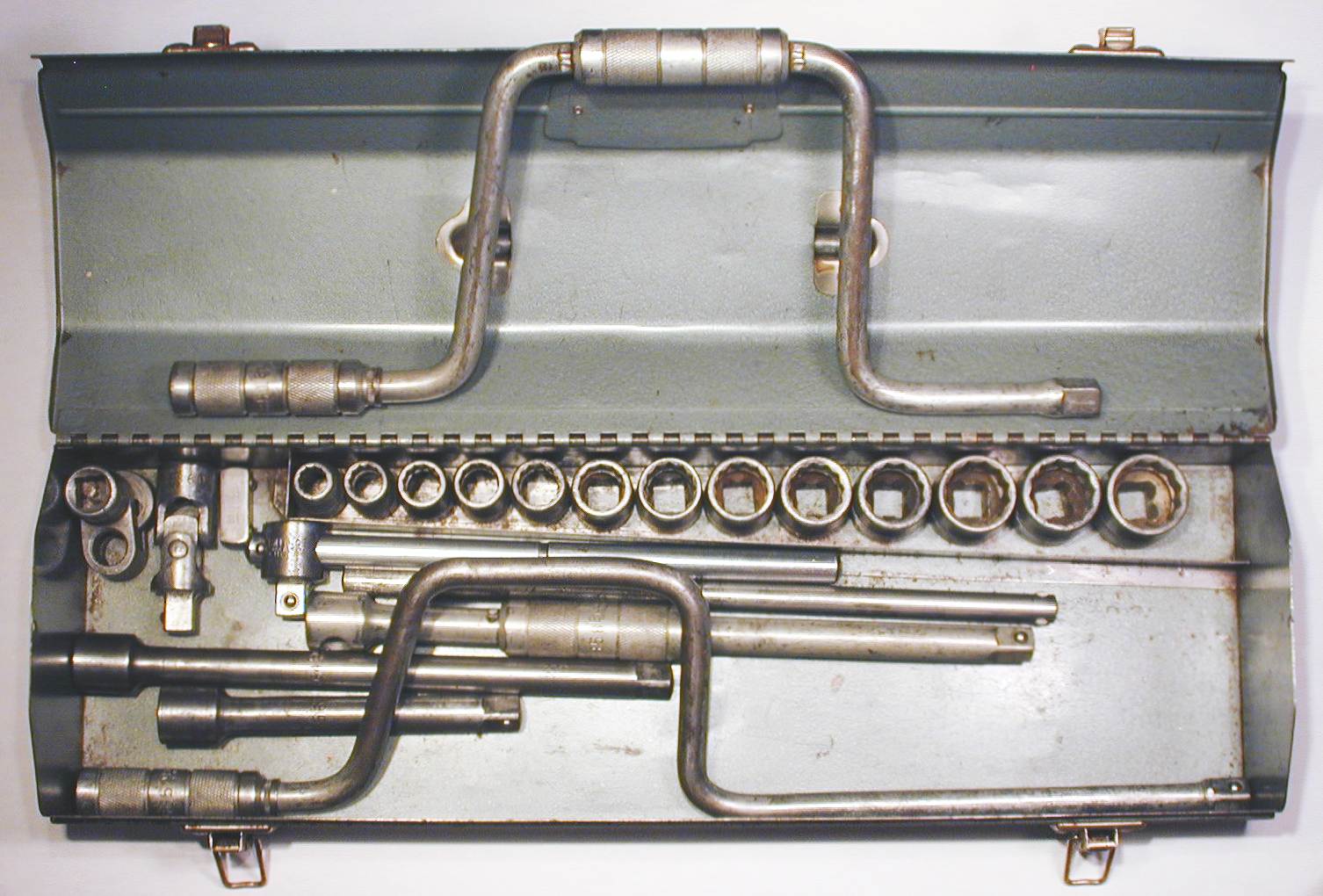

Fig. 265 shows a Billings No. 5475 1/2-drive socket set, a collection of 1/2-drive tools and sockets with components summarized in the table below.

The set as acquired was missing several pieces, most notably the 5850 ratchet. The crossbars for the two sliding Tee heads were also missing, and these pieces were replaced with unmarked but similar tools for the photograph.

The socket models and sizes are, from the left, 5814 (7/16), 5816 (1/2), 5818 (9/16), 5819 (19/32), 5820 (5/8), 5822 (11/16), 5824 (3/4), 5825 (25/32), 5826 (13/16), 5828 (7/8), 5830 (15/16), 5831 (31/32), and 5832 (1 Inch). All of the sockets are marked "Chrome" and "Made in U.S.A." with the B-Triangle logo, and the finish is cadmium plating.


The table below shows the standard components for three similar 1/2-drive Billings "Garage Set" socket set models. The No. 5475 set was the smallest of the three, with the No. 6450 and No. 5455 sets offering progressively more features. Basically the 6450 set added double-square sockets to the base set, and the 5455 set added both double-square sockets and open-end wrenches to the base. Billings also offered a 5480 set (not shown in the table) which added open-end wrenches to the base set.

Our earliest reference for the No. 5475 and related sets is the Billings "Socket Wrenches and Handle Units" catalog from 1930. The illustrations in this catalog are identical (except for markings) to the Walden production of that time, and we have therefore cross-referenced Walden's tool models in the table. Later Billings catalogs sometimes show a Billings ratchet in the socket sets, instead of the Walden model.

Comparison of Billings 1/2-Drive Socket Sets No. 5475, No. 6450, and No. 5455
Billings
Model
Walden
Model
Description
No. 5475
Included in Set?
No. 6450

No. 5455
Examples/Notes
5850 916 Ratchet YesYesYes Walden 916 Ratchet
5851 1115 Speeder, 14-1/2 Inch YesYesYes Billings 5851 Speeder
5852 1119 Speeder, 20 Inch YesYesYes Billings 5852 Speeder
5854 N/A Sliding Tee Handle, 15 Inch Bar YesYesYes Billings 5853 Sliding Tee
5855 1142 Offset Handle, 10-1/2 Inch YesYesYes Missing from set.
5856 1135 Extension, 5 Inch YesYesYes Billings 5856 Extension
5858 1127 Sliding Tee Head, 12 Inch Shank YesYesYes Billings 5858 Sliding Tee Head
5860 1102 Universal YesYesYes Billings 5860 Universal
5861 1109 Drive Plug YesYesYes Billings 5861 Drive Plug
5864 1139 Extension, 9 Inch YesYesYes Billings 5864 Extension
5866 1126 Stud Driver YesYesYes Billings 5866 Stud Driver
5867 N/A Swivel Offset Handle, 10-1/2 Inch YesYesYes Missing from set.
5814-5832 814-832 Double-Hex Sockets (13), 7/16 to 1 Inch YesYesYes Billings 58xx Double-Hex Sockets
5112-5132 112-132 Double-Square Sockets (7), 3/8 to 1 Inch NoYesYes Billings 5828 Double-Square Socket
M1723 N/A Open-End Wrench, 3/8x7/16 NoNoYes
M1025 N/A Open-End Wrench, 1/2x19/32 NoNoYes Billings M-1025 Open-End Wrench
M1027C N/A Open-End Wrench, 9/16x11/16 NoNoYes Billings M-1027C Open-End Wrench
M1028S N/A Open-End Wrench, 5/8x25/32 NoNoYes
M1731A N/A Open-End Wrench, 3/4x7/8 NoNoYes
5251 N/A Toolbox OptionOptionOption Specified by "B" suffix to model.

Billings socket sets were generally offered with the toolbox as an optional feature, a convenience for those customers that didn't need another box. For customers that did want a toolbox, any of the sets listed above could be ordered with a No. 5251 toolbox by appending a "B" suffix to the model number.


58xx "Chrome" 1/2-Drive Sockets

[Billings 58xx 1/2-Drive Sockets]
Fig. 266. Billings 58xx 1/2-Drive Sockets, with Inset for Broaching, ca. 1931-1935.

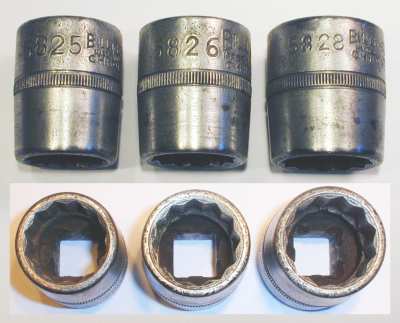

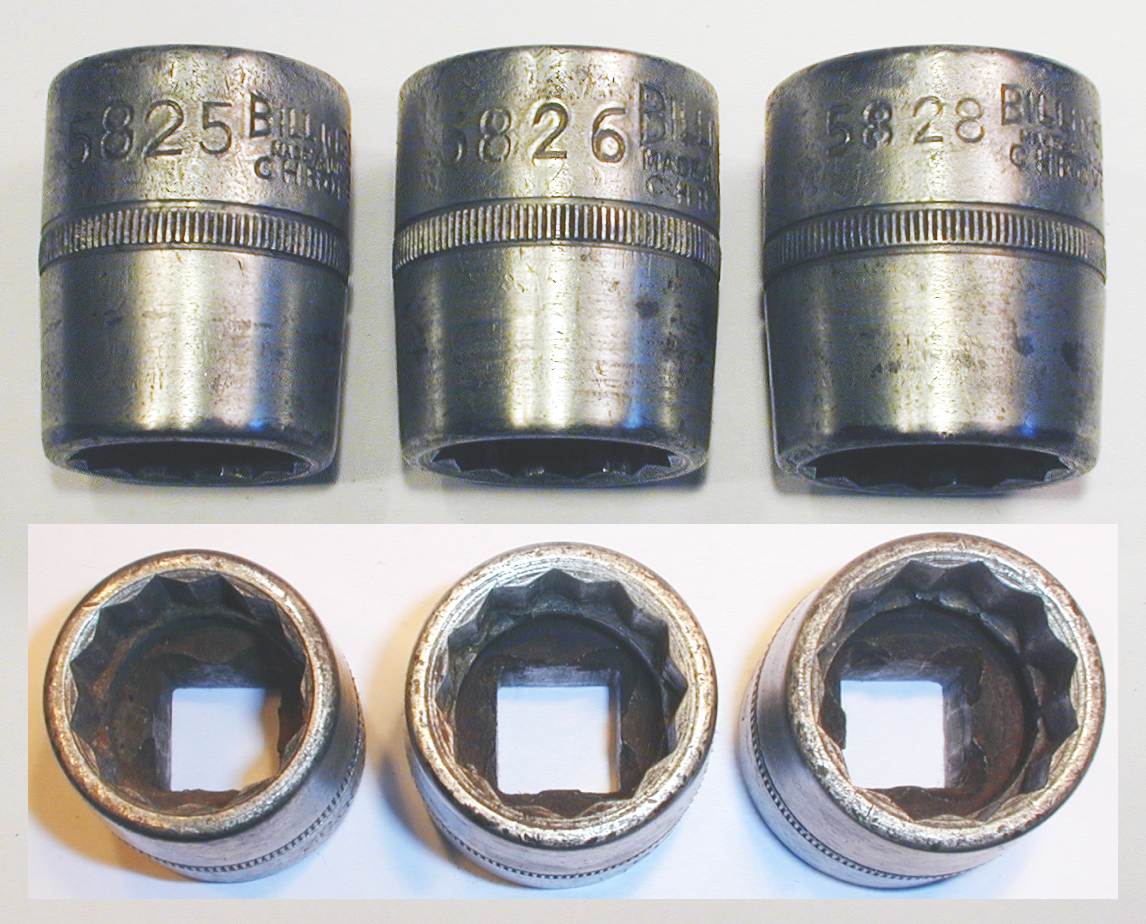

Fig. 266 shows a group of three 1/2-drive Billings 58xx series sockets from the No. 5475 socket set, each stamped "Billings" and "Made in U.S.A." with the B-Triangle logo, and with "Chrome" below.

The model numbers and sizes are, from the left, 5825 (25/32), 5826 (13/16), and 5828 (7/8). The finish is cadmium plating.


5851 1/2-Drive Short Speeder

[Billings 5851 1/2-Drive Short Speeder]
Fig. 267. Billings 5851 1/2-Drive Short Speeder, with Inset for Marking Detail, ca. 1931-1935.

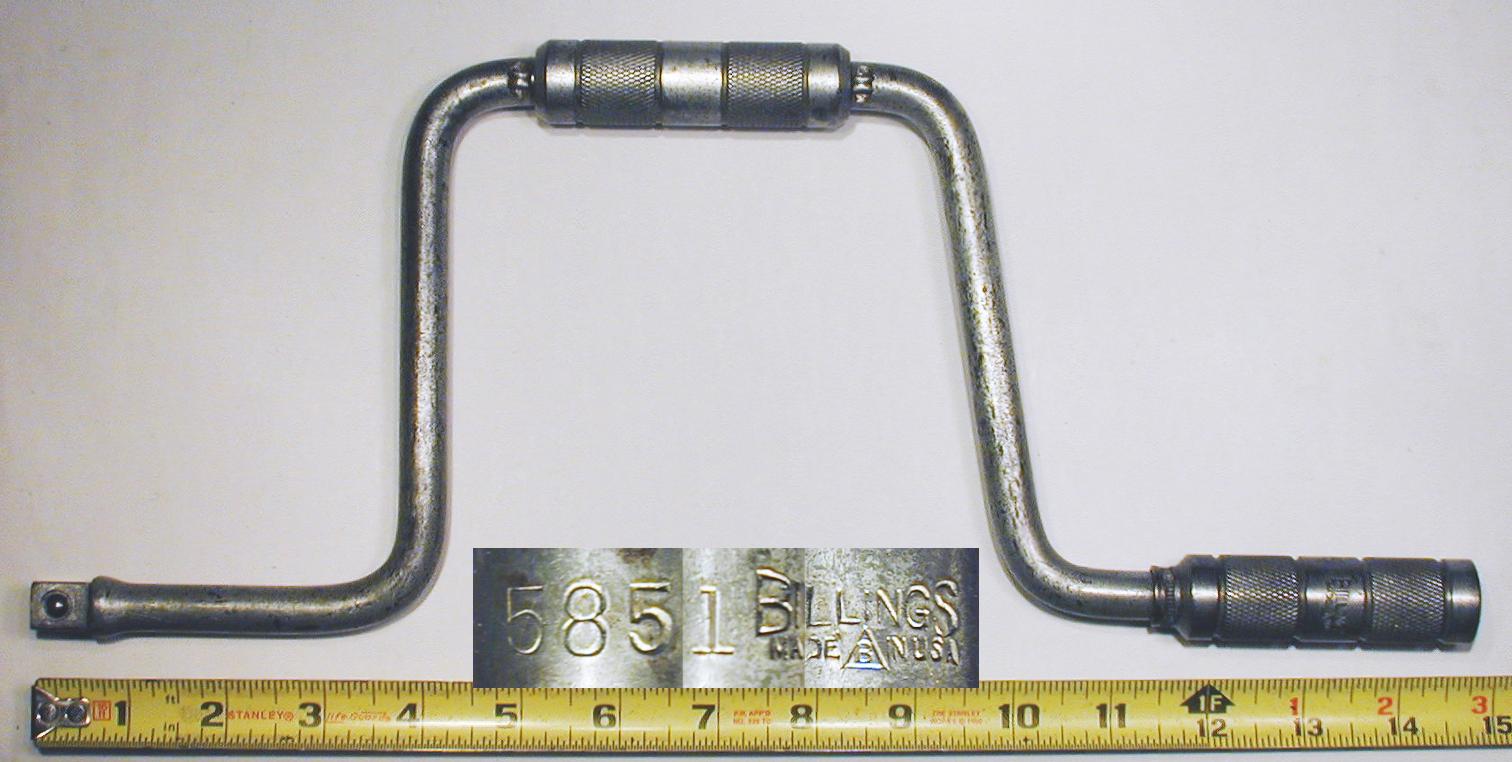

Fig. 267 shows the 1/2-drive Billings 5851 short speeder (or brace) from the No. 5475 socket set, marked "Billings" and "Made in U.S.A." with the B-Triangle logo.

The overall length is 14.7 inches, and the throw is 5.3 inches. The finish is cadmium plating.


5852 1/2-Drive Long Speeder

[Billings 5852 1/2-Drive Long Speeder]
Fig. 268. Billings 5852 1/2-Drive Long Speeder, with Inset for Marking Detail, ca. 1931-1935.

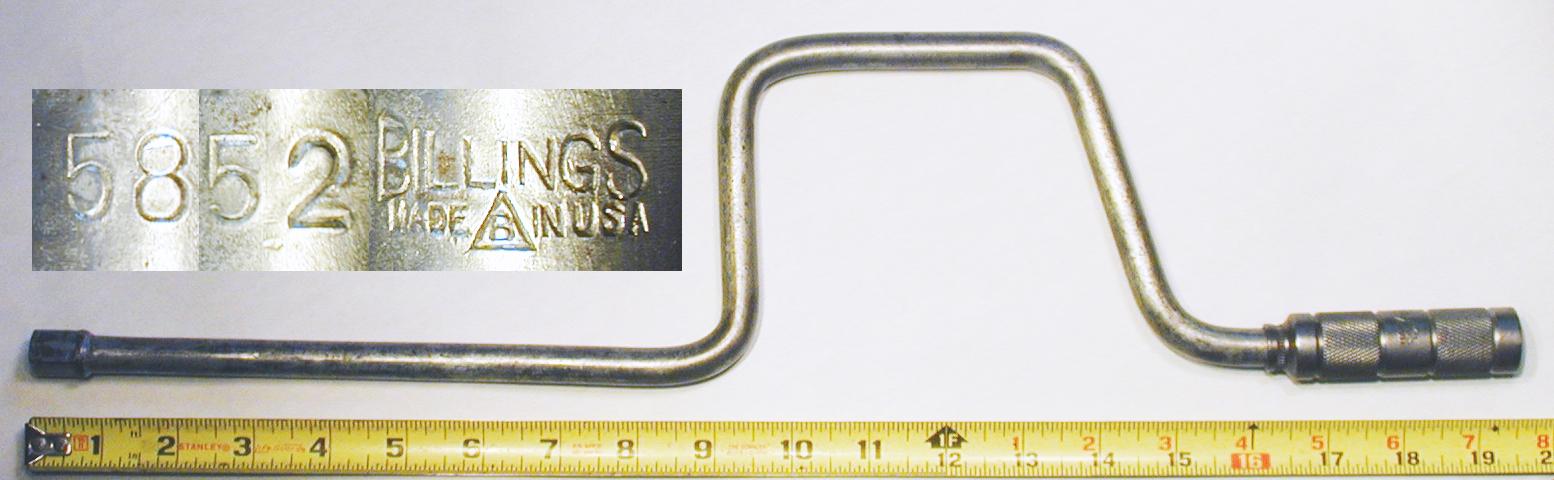

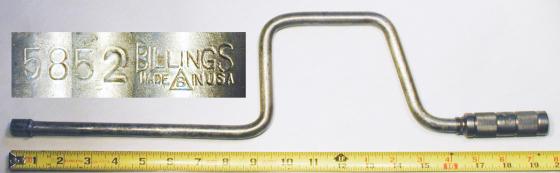

Fig. 268 shows the 1/2-drive Billings 5852 long speeder from the No. 5475 socket set, marked "Billings" and "Made in U.S.A." with the B-Triangle logo.

The overall length is 19.5 inches, and the finish is cadmium plating.


5853 "Chrome" 1/2-Drive Sliding Tee Handle

[Billings 5853 1/2-Drive Sliding Tee Handle]
Fig. 269. Billings 5853 1/2-Drive Sliding Tee Handle, with Insets for Marking Detail, ca. 1931-1935.

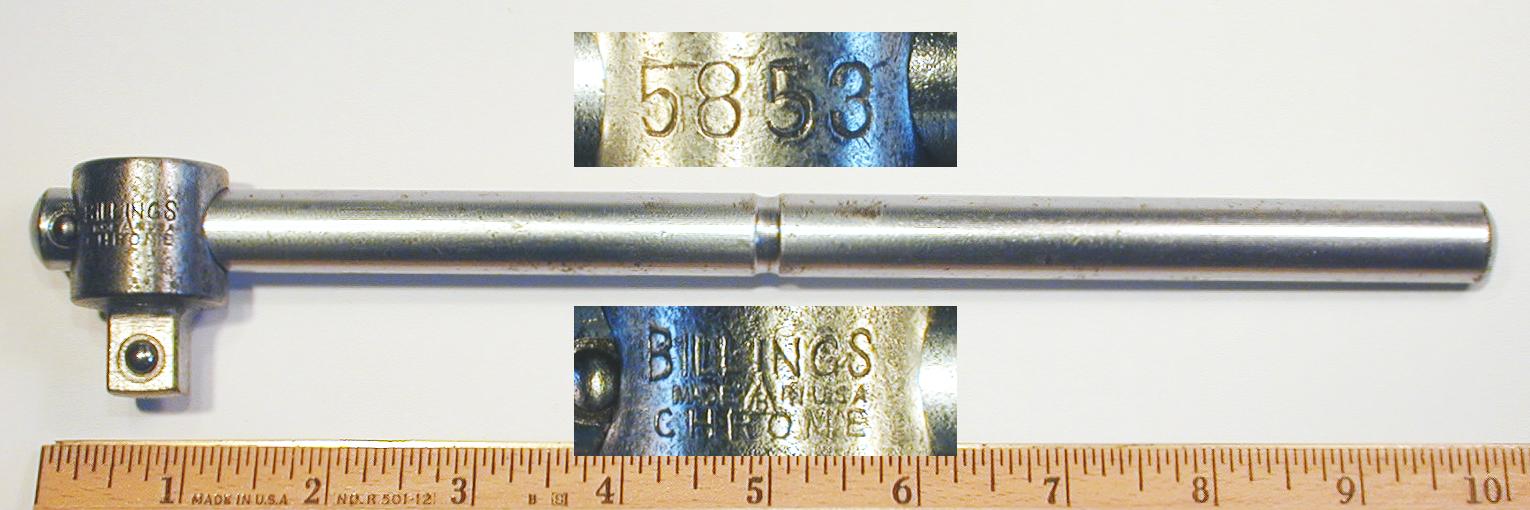

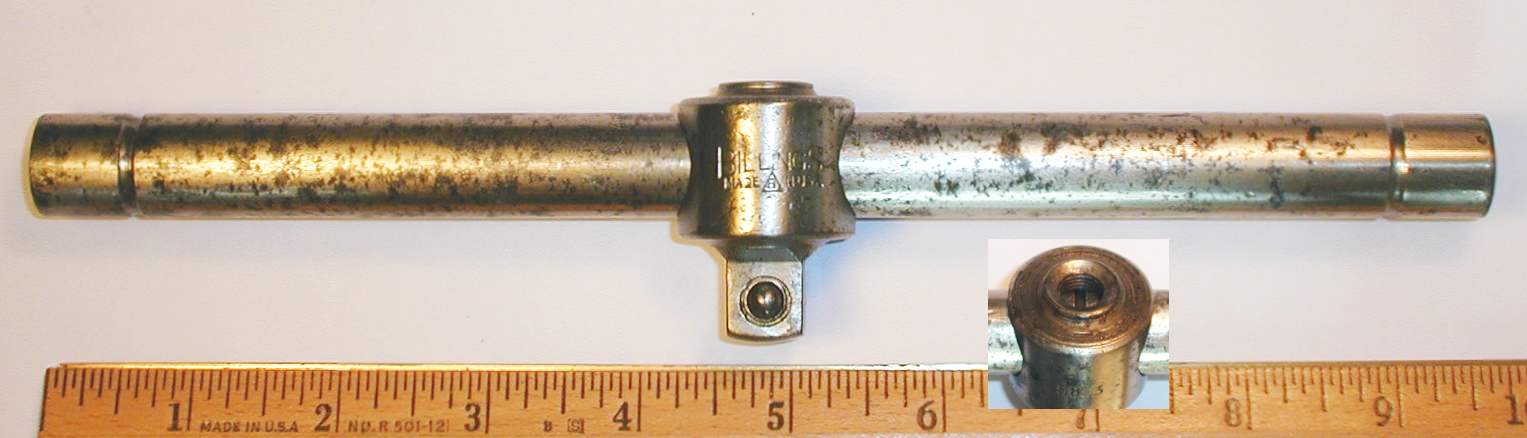

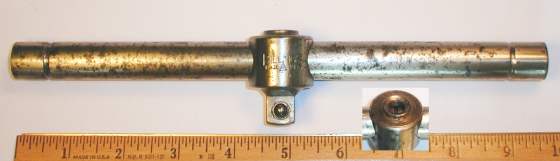

Fig. 269 shows the 1/2-drive Billings 5853 sliding Tee handle acquired with the No. 5475 socket set, stamped "Billings" and "Made in U.S.A." with the B-Triangle logo, and with "Chrome" below.

The overall length of the bar is 9.9 inches, and the height of the sliding head is 1.6 inches. The finish of the sliding head is cadmium plating.

Several comments should be noted with this figure. First of all, the 9/16 diameter handle bar shown in the photograph is a replacement, as the original bar was missing from the set. This bar was borrowed from an S-K socket set and is probably quite similar to the standard 10 inch crossbar used with the Billings 5853 sliding Tee handle.

Another discrepancy to be noted is that the 5475 set normally included a model 5854 15 inch sliding Tee. At this point we're unsure whether the 5854 sliding Tee was simply a 5853 Tee head with a 5854 15 inch bar, or whether a former owner substituted the 5853 sliding Tee for the original piece.

We're also unsure of the exact Walden model corresponding to the 5853 (or 5854) sliding Tee. One possibility though is the Walden 1111 Sliding Tee Head shown in our article on Walden.

A somewhat later example of this tool can be seen as the Billing 5853 Sliding Tee Handle, although this example was probably made by a different company.


5858 1/2-Drive Sliding Tee Head

[Billings 5858 1/2-Drive Sliding Tee Head]

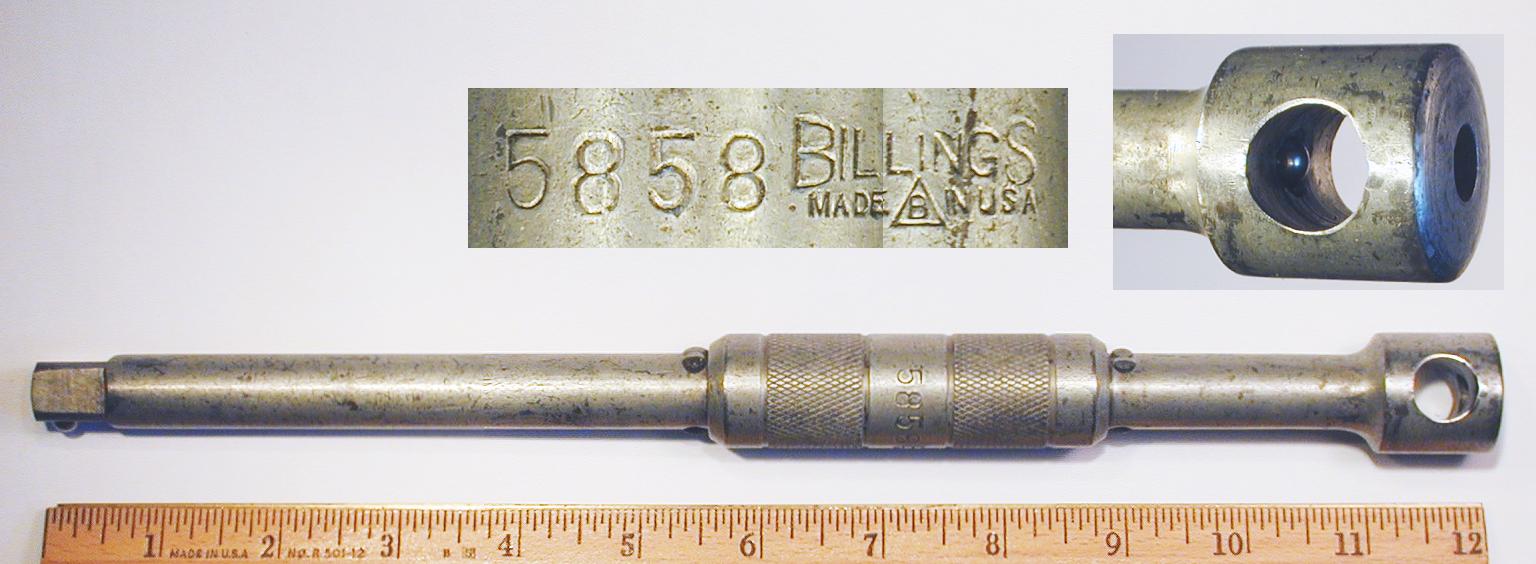

Fig. 270. Billings 5858 1/2-Drive Sliding Tee Head, with Insets for Construction and Marking Detail, ca. 1931-1935.

Fig. 270 shows the 1/2-drive Billings 5858 sliding Tee head from the No. 5475 socket set, stamped "Billings" and "Made in U.S.A." with the B-Triangle logo on the rotating hand grip.

The overall length is 12.1 inches, and the finish is cadmium plating.

The 5858 Tee head is drilled to accept a 1/2 diameter crossbar, and the hole is fitted with a detent ball to hold the bar (see upper left inset). The set as acquired was missing the original crossbar, and the bar shown in the photograph is an unmarked replacement.

The Billings 5858 Tee head is basically identical to the corresponding Walden model, the Walden 1127 Sliding Tee Head.


5860 1/2-Drive Chrome Universal

[Billings 5860 Chrome 1/2-Drive Universal]
Fig. 271. Billings 5860 "Chrome" 1/2-Drive Universal, with Inset for Marking Detail, ca. 1931-1935.

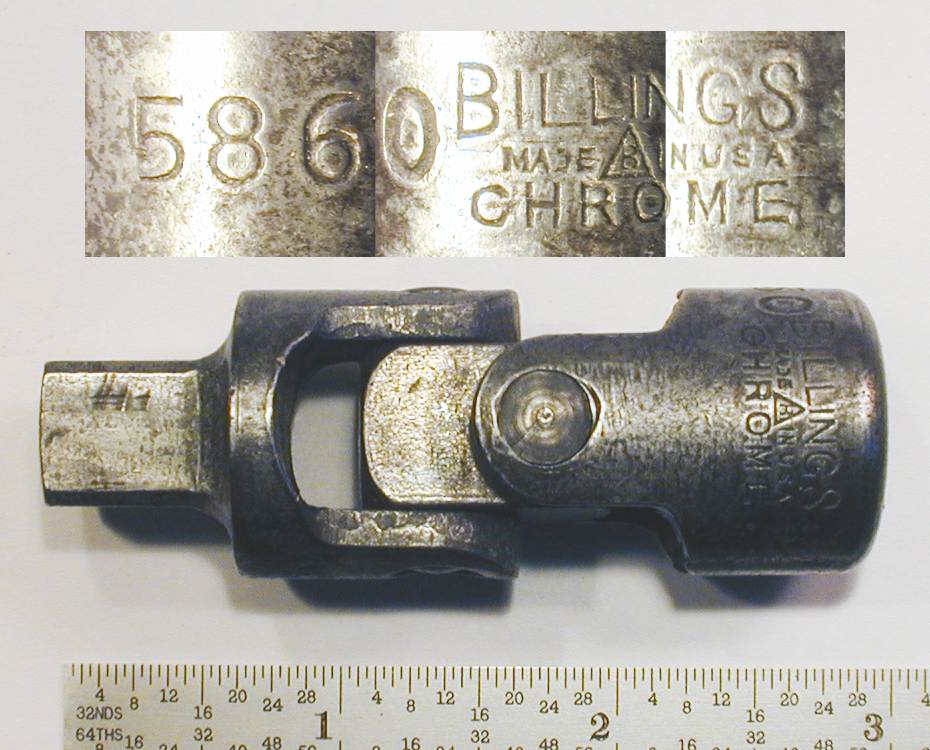

Fig. 271 shows the 1/2-drive Billings 5860 universal from the No. 5475 socket set, stamped "Billings" and "Chrome" with "Made in U.S.A." and the B-Triangle logo.

The overall length is 2.8 inches, and the finish is cadmium plating.

The corresponding Walden model can be seen as the Walden 1102 Universal.


5864 1/2-Drive 10 Inch Extension

[Billings 5864 1/2-Drive 10 Inch Extension]
Fig. 272. Billings 5864 1/2-Drive 10 Inch Extension, with Inset for Marking Detail, ca. 1931-1935.

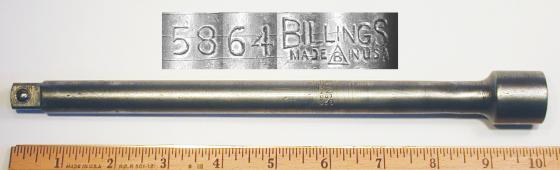

Fig. 272 shows the 1/2-drive Billings 5864 10 Inch extension from the 5475 set, stamped "Made in U.S.A." with the B-Triangle logo.

The overall length is 9.9 inches, and the finish is plain steel.


5866 1/2-Drive Stud Extractor

[Billings 5866 1/2-Drive Stud Extractor]
Fig. 273. Billings 5866 1/2-Drive Stud Extractor, with Insets for Top View and Marking Detail, ca. 1931-1935.

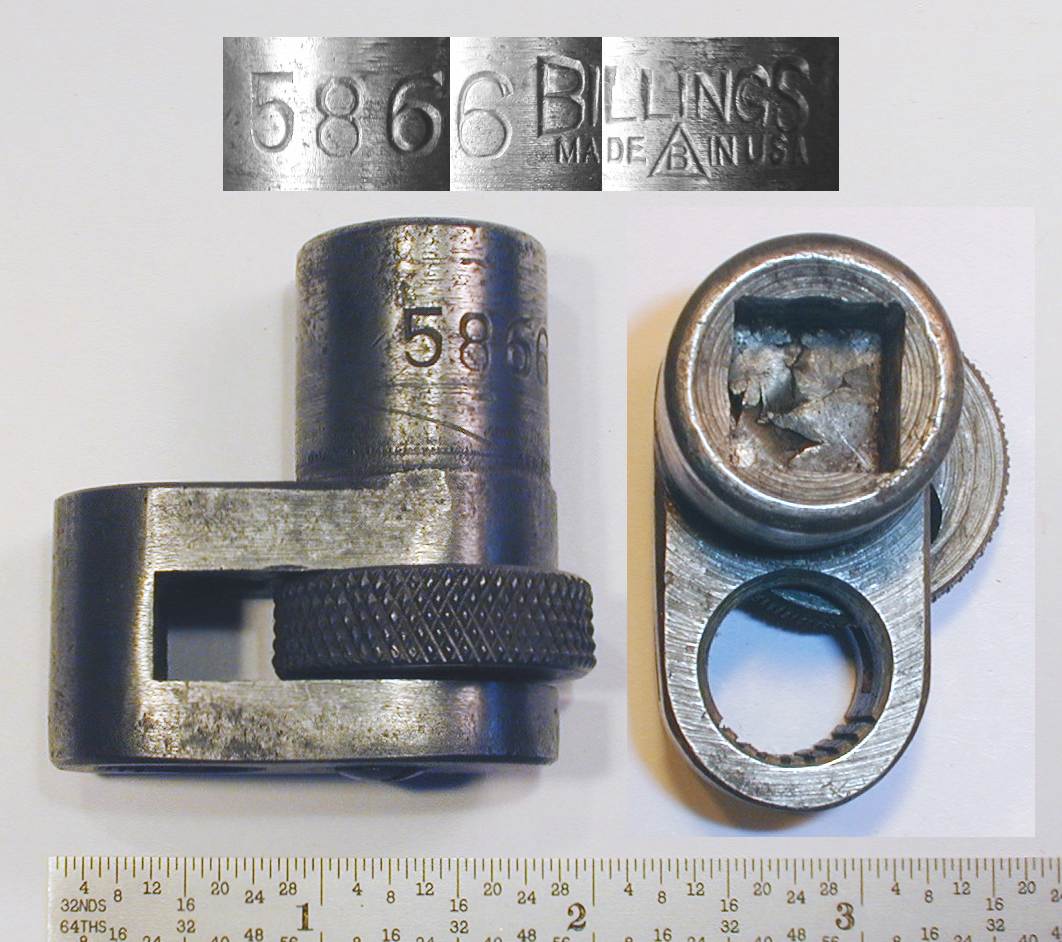

Fig. 273 shows the 1/2-drive Billings 5866 stud extractor (or driver) from the 5475 set, stamped "Made in U.S.A." with the B-Triangle logo.

The overall width is 1.8 inches and the height is 1.8 inches. The finish is cadmium plating.

Similar tools from other makers include the Herbrand 820 Stud Extractor, Plomb 4508 Stud Extractor, and Williams S-60C Stud Extractor.


5150B 1/2-Drive Socket Set

Our next socket set example shows a smaller and slightly later set.

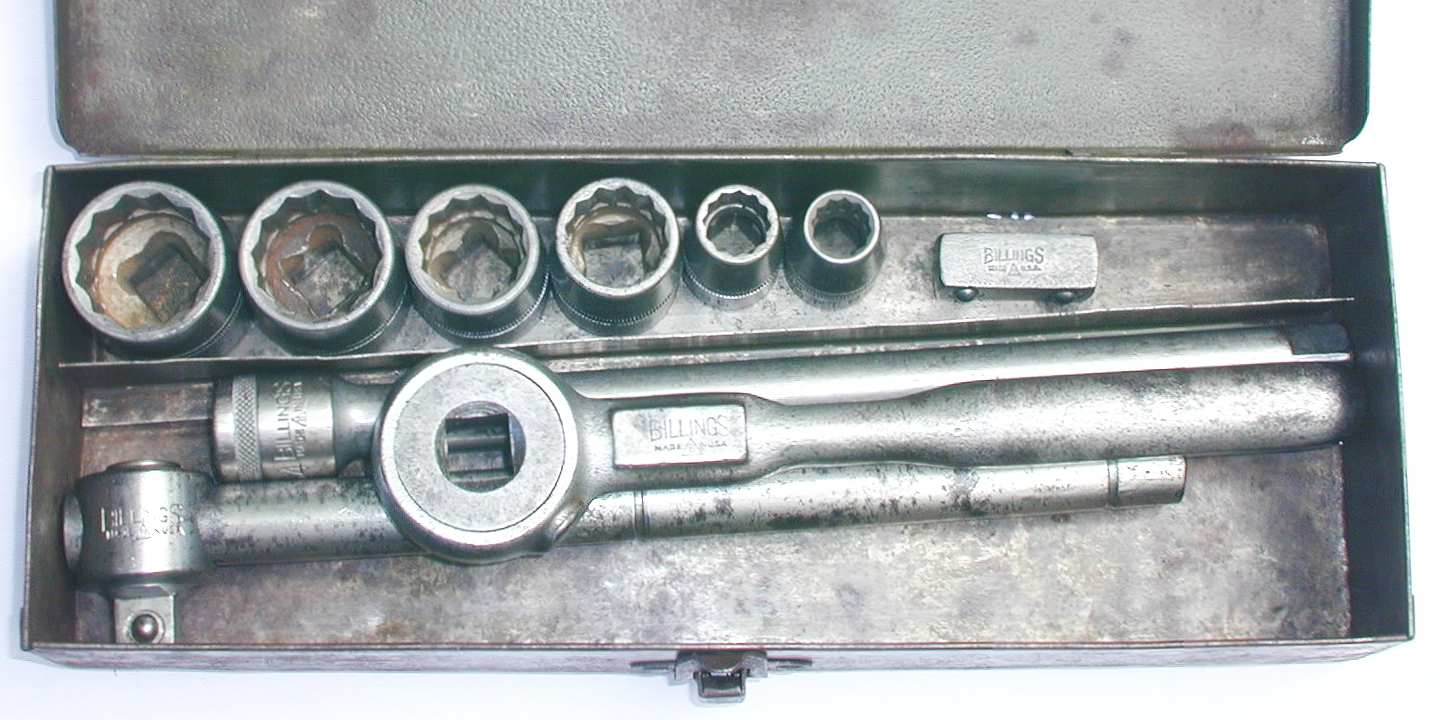

[Billings 5150B 1/2-Drive Socket Wrench Set]
Fig. 274. Billings 5150B 1/2-Drive Socket Wrench Set, ca. 1931-1935.

Fig. 274 shows a Billings No. 5150B 1/2-drive socket set, unmarked but identified as model 5150B by a catalog illustration.

Based on the description in the 1937 catalog, the original contents included a Model CB ratchet, 5861 ratchet plug, 5853 sliding Tee handle, 5864 extension, 5860 universal, and 12 double-hex sockets.

The set as acquired was missing the universal and several sockets.

The sockets in the set were from the Billings 58xx series of double-hex tapered-wall sockets, and the original sizes were listed as 7/16, 1/2, 9/16, 19/32, 5/8, 11/16, 3/4, 25/32, 13/16, 7/8, 15/16, and 1 inch. The set as acquired included models and sizes 5814 (7/16), 5816 (1/2), 5824 (3/4), 5825 (25/32), 5830 (15/16), and 5832 (1 inch).

All sockets are marked "Billings Chrome" and "Made in U.S.A." with the B-Triangle logo. The socket design includes a finely knurled band around the center, and the finish is chrome plating with polished upper walls. These sockets closely resemble the example shown above as the Billings Chrome 5824 Socket, but with a chrome plated finish.


5853 1/2-Drive Sliding Tee Handle

This next figure shows an unusual example of production for Billings attributed to Bog Manufacturing of Chicago.

[Billings 5853 1/2-Drive Sliding Tee Handle]
Fig. 275. Billings 5853 1/2-Drive Sliding Tee Handle, with Inset for Construction Detail.

Fig. 275 shows the 1/2-drive Billings model 5853 sliding Tee handle from the 5150B set, marked "Made in U.S.A." with the B-Triangle logo.

The overall length is 9.5 inches, and the finish is chrome plating with some loss due to rust.

This sliding Tee has some distinctive features not commonly seen in tools of this type. The sliding head has a threaded opening on the top, presumably for a thumbscrew (now missing) to lock the position of the slider. The oversize bar has a diameter of 11/16 and is not fitted with stops at the end, allowing the sliding head to be removed. This would allow the bar to be used with other accessories, although the current set does not have any other tools requiring a bar.

The unusual features of this tool are also noted in the nearly identical Bog No. 637 Sliding Tee Handle made by Bog Manufacturing, allowing us to identify Bog as another contract manufacturer for Billings. Although not widely known, Bog was an important supplier to the Western Auto Supply Company, a high-volume retailer of automobile parts and tools. (The two companies shared a family connection, as Bog Manufacturing was founded by the brother of the founder of Western Auto.)


5864 1/2-Drive 10 Inch Extension

[Billings 5864 1/2-Drive 10 Inch Extension]
Fig. 276. Billings 5864 1/2-Drive 10 Inch Extension, with Inset for Marking Detail.

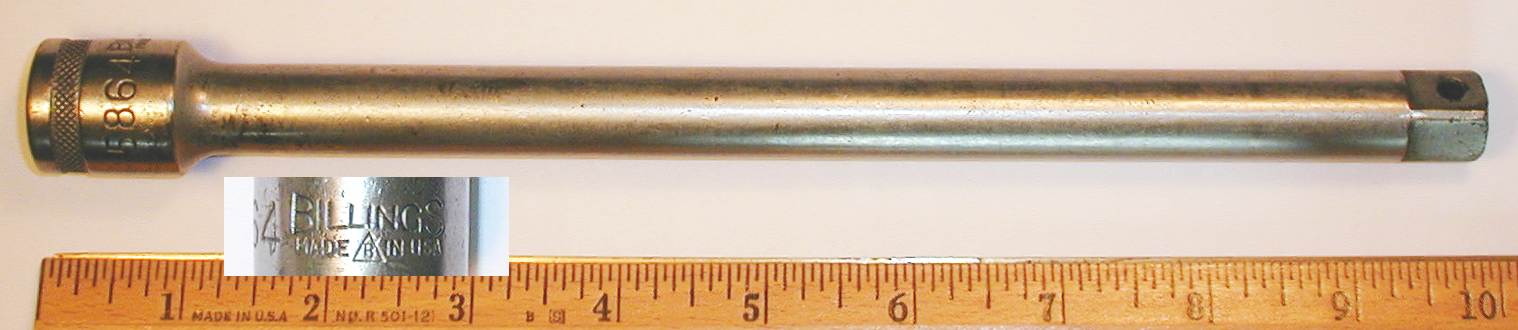

Fig. 276 shows a 1/2-drive Billings 5864 10 Inch extension from the 5150B set, marked "Made in U.S.A." with the B-Triangle logo.

The overall length is 9.8 inches, and the finish is chrome plating.

The extension has a decorative band of cross-hatched knurling around the drive end, a detail not previously seen in any Billings (or Walden) tools of this era. In fact, this extension closely resembles the models made during the 1930s by New Britain Machine, which were sold under various brands including None Better, Husky, and the Craftsman "BE" and H-Circle line. See for example the None Better and Craftsman Extensions in our article on the Craftsman tools.


5868 1/2-Drive Sliding Tee Handle

[Billings 5868 1/2-Drive Sliding Tee Handle]
Fig. 277. Billings 5868 1/2-Drive Sliding Tee Handle, with Inset for Marking Detail, ca. Early 1930s.

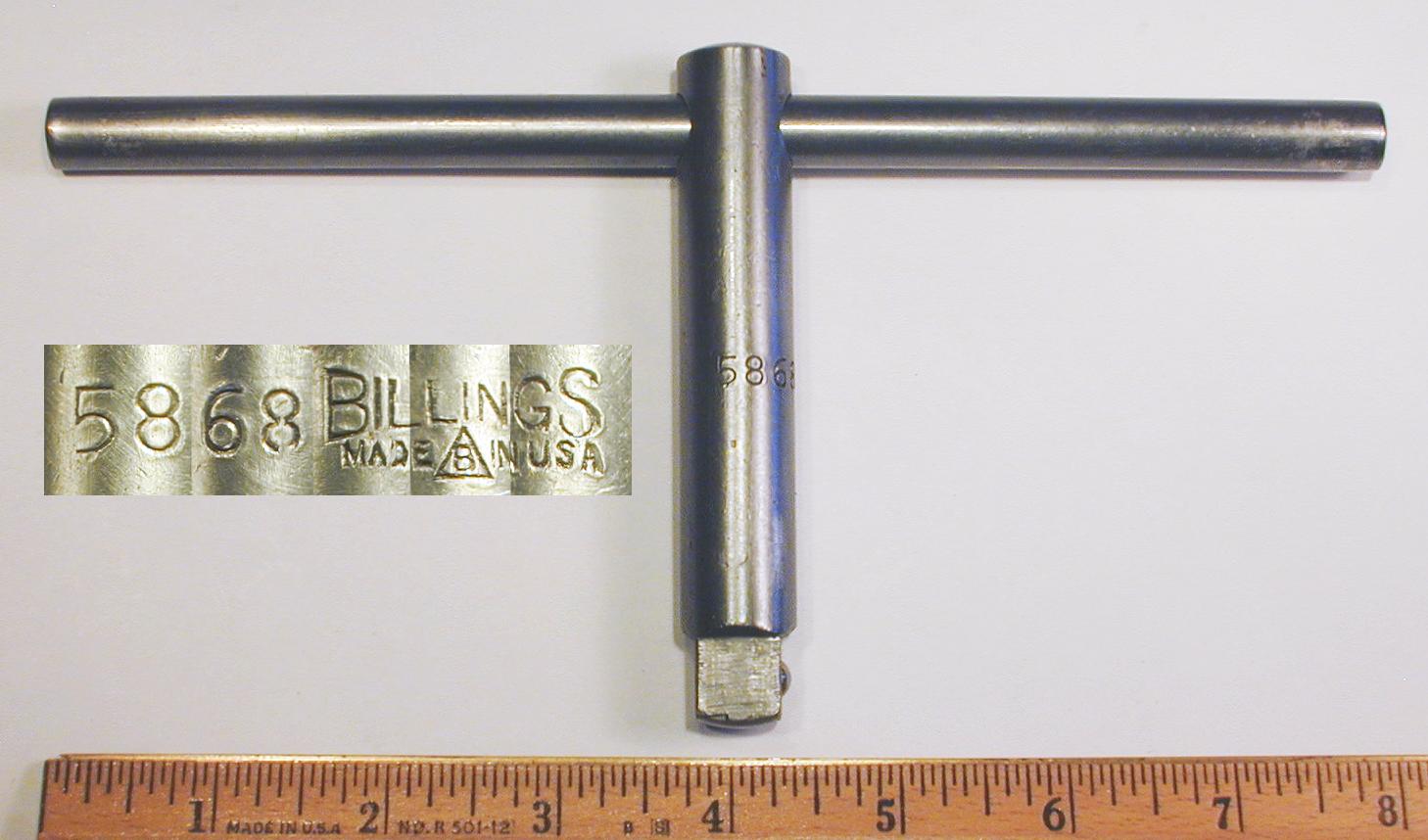

Fig. 277 shows a 1/2-drive Billings 5868 sliding Tee handle, stamped "Made in U.S.A." with the B-Triangle logo on the shank. The 7/16 diameter handle bar is unmarked.

The overall length of the bar is 8.0 inches, and the length of the drive shaft is 4.1 inches. The finish is plain steel.

This tool is basically identical (except for markings) to the Walden 1124 Sliding Tee Handle.


5531 1 Inch Hex Drive 31/32 Hex Socket

[Billings 5531 1 Inch Hex Drive 31/32 Hex Socket]
Fig. 278. Billings 5531 1 Inch Hex Drive 31/32 Hex Socket, with Insets for Construction and Marking Detail, ca. Early 1930s.

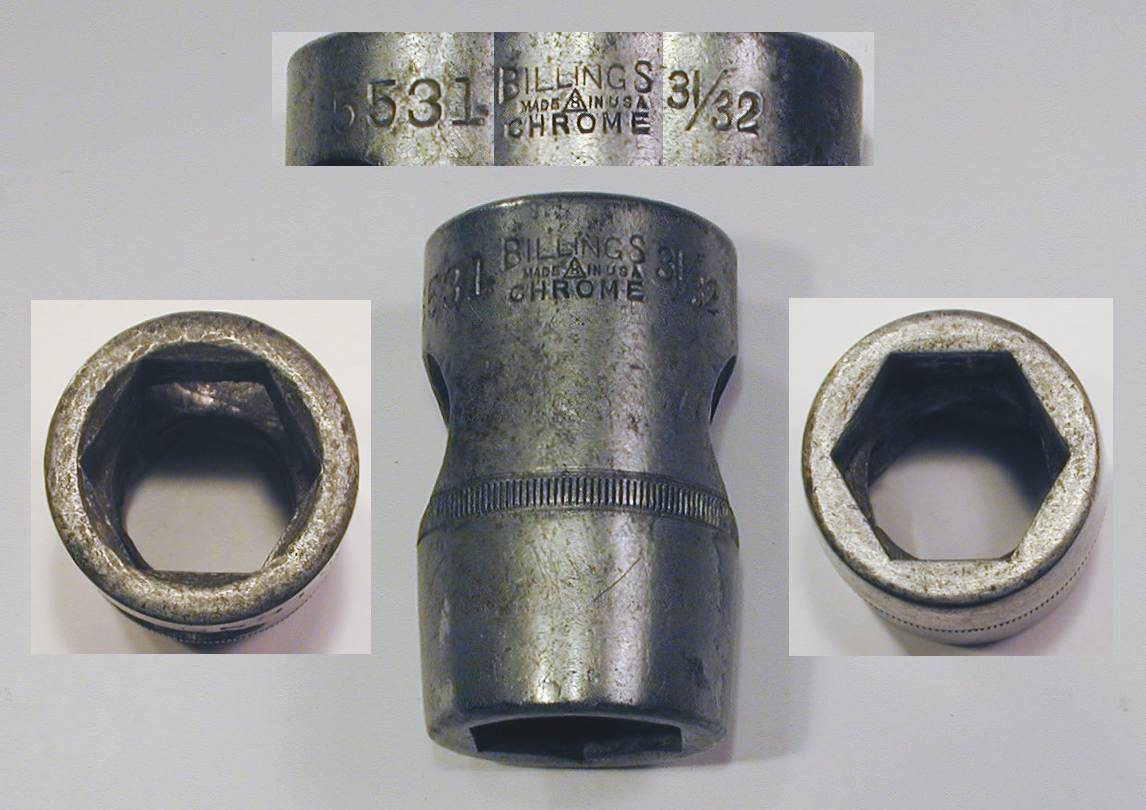

Fig. 278 shows a 1 inch hex drive Billings 5531 31/32 hex socket, stamped "Chrome" and "Made in U.S.A." with the B-Triangle logo.

The finish is cadmium plating.

The left inset shows the 1 inch hex drive opening, which is nearly the same size as the 31/32 service opening shown in the right inset. The socket is equipped with a cross-bar hole for a 7/8 diameter bar.


Modern Period

By the mid 1940s Billings had switched suppliers for its socket tools in favor of Herbrand. Herbrand was a high-volume producer of a full range of automotive and service tools, and their line of alloy-steel socket tools was very successful at that time. The identification of Herbrand as the producer for Billings is easily made based on the cross-hatched socket design and distinctive slide-shifter ratchets, both illustrated in later figures.

Wright Tool also became a supplier for Billings in the 1940s, probably initially for ratchets and possibly other drive tools, and later for sockets as well. Wright may have overlapped with Herbrand as a socket supplier during part of this period. Since Wright and Herbrand used similar hot-forging techniques for producing sockets, the sockets from the two companies are sometimes difficult to distinguish, at least after Herbrand dropped their decorative knurling in the mid 1950s.

But in the mid 1950s Wright changed the design of certain socket sizes from a reduced-base to a cylindrical form, whereas Herbrand maintained the reduced base for these same sizes. As the Billings sockets follow the later Wright design, it appears that Wright became the dominant socket supplier from the mid 1950s onward.


S-1222 1/2-Drive Socket

[Billings Vitalloy 1/2-Drive S-1222 11/16 Socket]

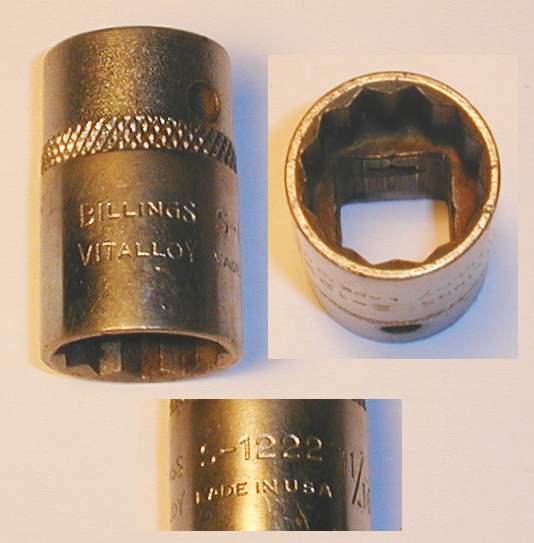

Fig. 279. Billings Vitalloy 1/2-Drive S-1222 11/16 Socket, with Insets for Broaching and Marking Detail.

Fig. 279 shows a 1/2-drive Billings Vitalloy S-1222 11/16 socket, marked with the "Billings Vitalloy" logo and "Made in U.S.A." (see lower inset).

This socket closely resembles the sockets made by Herbrand in the mid 1940s through early 1950s, as can be seen by comparison with the Herbrand S-1xx Sockets.


SD-1222 1/2-Drive Deep Socket

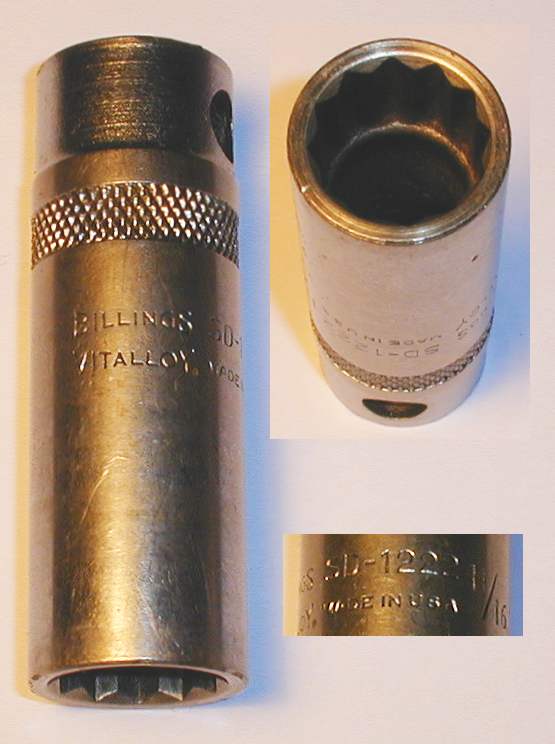

[Billings Vitalloy 1/2-Drive SD-1222 11/16 Deep Socket]
Fig. 280. Billings Vitalloy 1/2-Drive SD-1222 11/16 Deep Socket, with Insets for Broaching and Marking Detail.

Fig. 280 shows a 1/2-drive Billings Vitalloy SD-1222 11/16 deep socket, marked with the "Billings Vitalloy" logo and "Made in U.S.A." (see lower inset).

The socket is equipped with a cross-bar hole, a standard feature for earlier sockets intended for spark-plug service. The base of the socket has a band of cross-hatched knurling, perhaps useful for an improved grip.

This socket closely resembles the Herbrand deep sockets of the mid 1940s to mid 1950s, as can be seen by a comparison with the Herbrand DS-26 Deep Socket.


S-824 1/2-Drive 8-Point Socket

[Billings Vitalloy 1/2-Drive S-824 8-Point 3/4 Socket]
Fig. 281. Billings Vitalloy 1/2-Drive S-824 8-Point 3/4 Socket, with Insets for Broaching and Marking Detail.

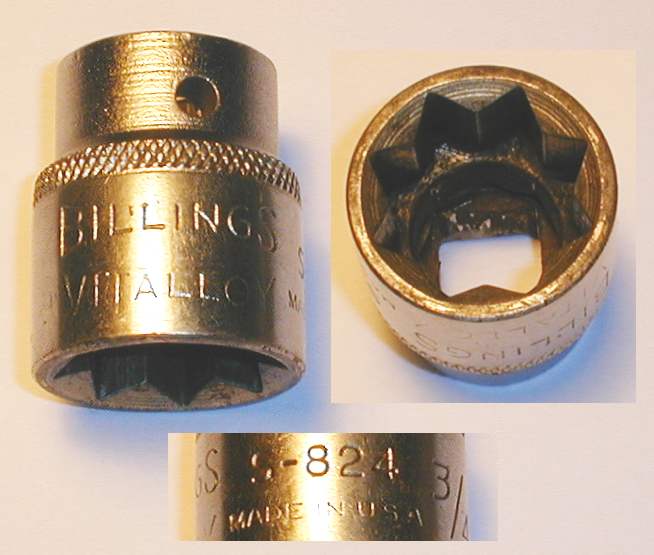

Fig. 281 shows a 1/2-drive Billings Vitalloy S-824 8-Point 3/4 socket, marked with the "Billings Vitalloy" logo and "Made in U.S.A." (see lower inset).


H-1254 3/4-Drive Socket

[Billings 3/4-Drive H-1254 Socket]
Fig. 282. Billings 3/4-Drive H-1254 Socket, with Insets for Broaching and Detail, ca. 1945-1953.

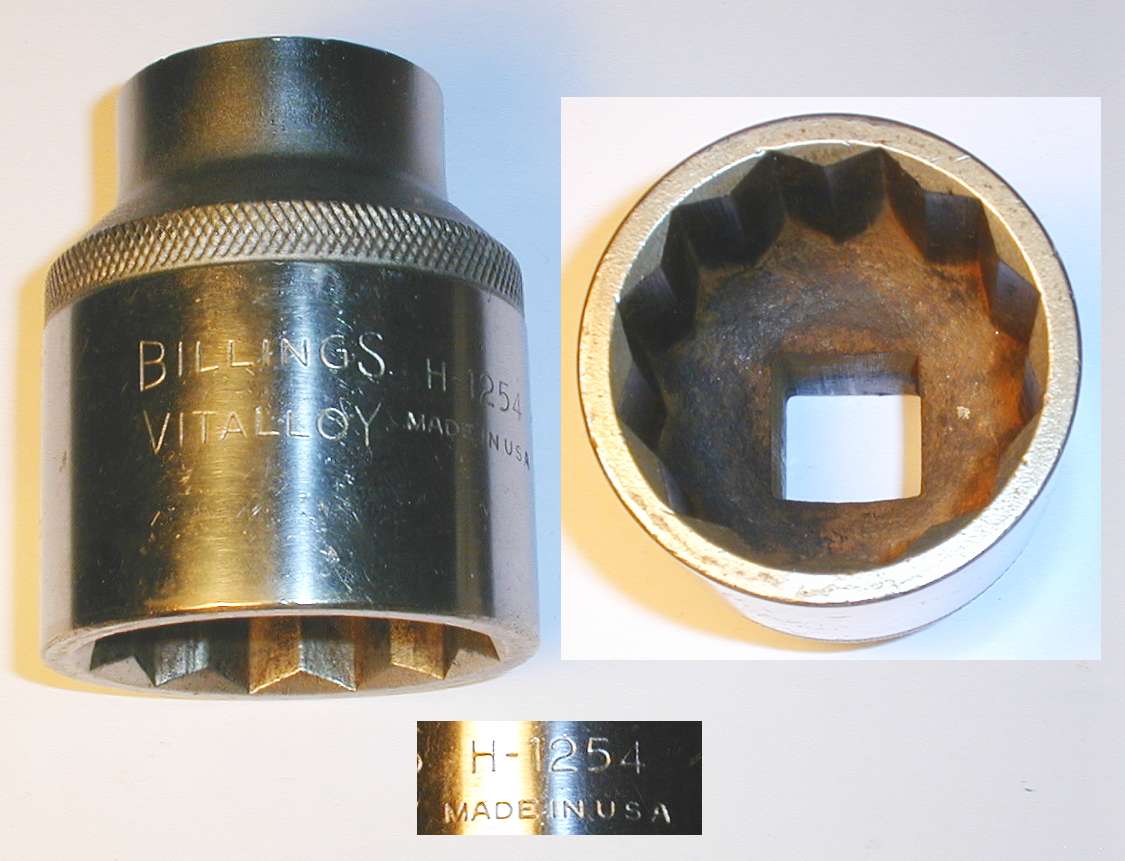

Fig. 282 shows a 3/4-drive Billings H-1254 1-11/16 socket, marked with the "Billings Vitalloy" logo and "Made in USA". The finish is chrome plating, with polished upper walls and a satin finish on the base.

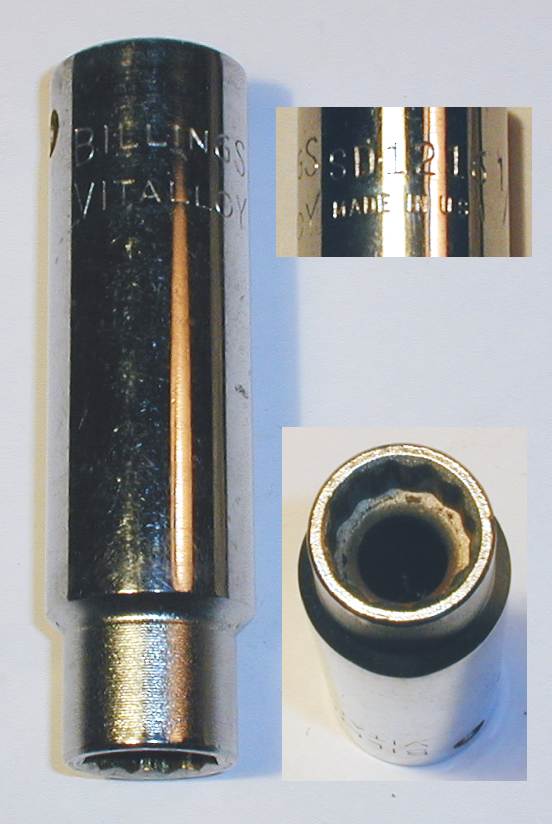

SD-1216 1/2-Drive Deep Socket

[Billings Vitalloy 1/2-Drive SD-1216 1/2 Deep Socket]
Fig. 283. Billings Vitalloy 1/2-Drive SD-1216 1/2 Deep Socket, with Insets for Broaching and Marking Detail.

Fig. 283 shows a later 1/2-drive Billings Vitalloy SD-1216 1/2 deep socket, stamped with the "Billings Vitalloy" logo and "Made in USA" (see upper inset).

This socket closely resembles the production by Wright from the mid 1950s onward.


Model CB 1/2-Drive Ratchet

[Billings 1/2-Drive CB Ratchet]
Fig. 284. Billings 1/2-Drive CB Ratchet.

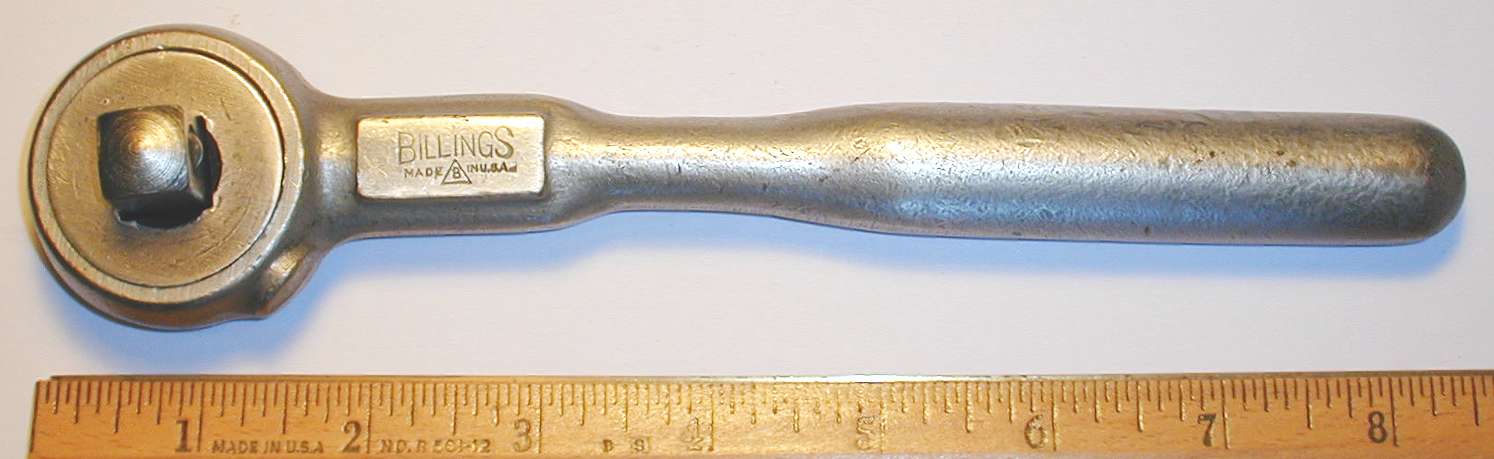

Fig. 284 shows a 1/2-drive Billings model CB ratchet, marked with "Made in U.S.A." and the B-Triangle logo stamped on the shank.

The overall length is 8.4 inches.

The ratchet is constructed with a heavy forged handle, hardened all over, and a relatively softer rotating gear with 11 circular arc teeth. The ratchet was equipped with a double-male drive plug, model SP-150 for this example, but a model 5681 drive plug in earlier years.

The model CB ratchet was the successor to the Model CA Ratchet and is very similar to that earlier tool. These ratchets were offered for many years, from before 1920 until at least 1961.


S-1112 Vitalloy 1/2-Drive Flex-Head Handle

[Billings Vitalloy 1/2-Drive S-1112 Flex-Head Handle]
Fig. 285. Billings Vitalloy 1/2-Drive S-1112 Flex-Head Handle, with Insets for Design Details.

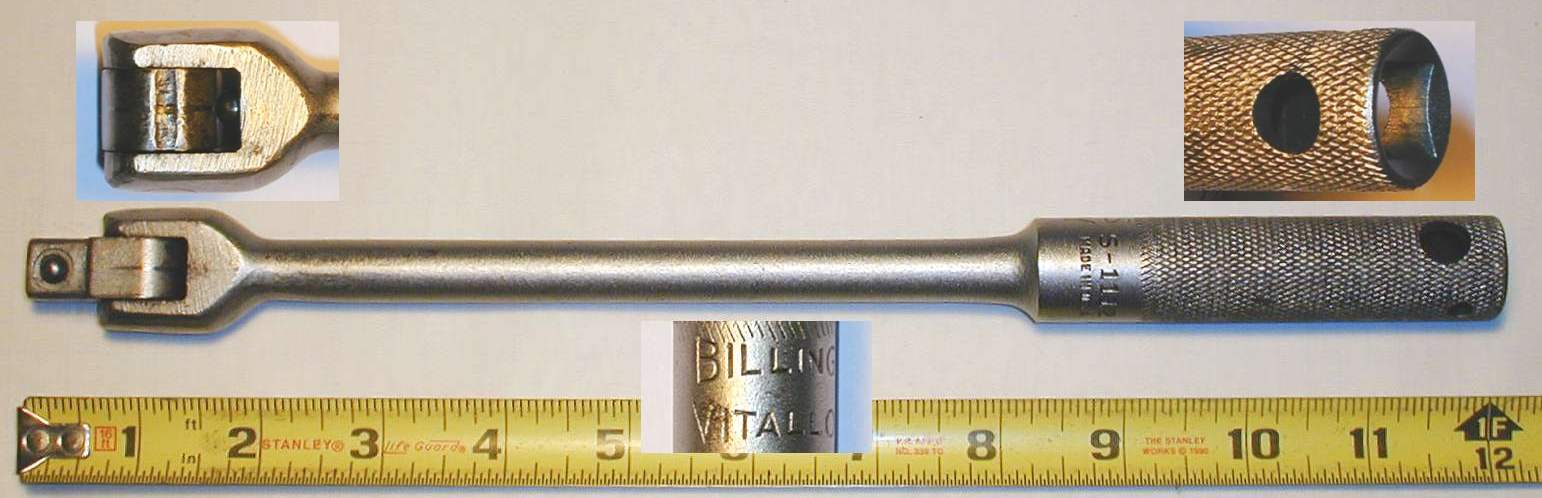

Fig. 285 shows a 1/2-drive Billings Vitalloy S-1112 flex-head handle, marked "Made in U.S.A." on the knurled handle, and with "Billings Vitalloy" in a distinctive form (see center inset).

The overall length is 12.0 inches, and the finish is chrome plating.

The left inset shows a close-up of the flex head, illustrating the groove used to provide a positive detent for the straight position.

The handle is equipped both with a cross-bar hole and a 1/2-drive end broaching, as shown in the right inset. These features allow the breaker to function as a T-handle (with a bar inserted) or as an extension, increasing the utility of the tool.

This breaker bar closely resembles the Herbrand S-13 model of late 1930s to mid 1940s production, as the design and dimensions are almost identical.

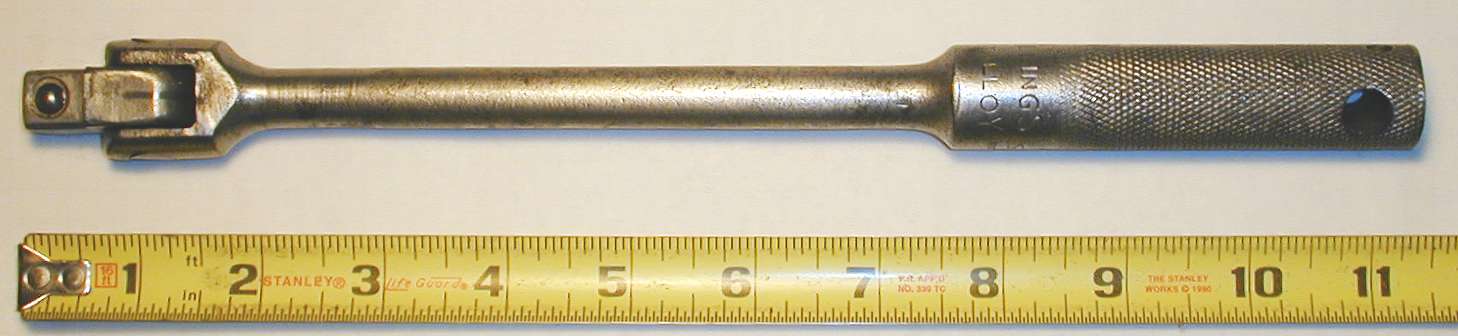

S-1112 Vitalloy 1/2-Drive Flex-Head Handle, Short Version

[Billings Vitalloy 1/2-Drive S-1112 Flex-Head Handle]
Fig. 286. Billings Vitalloy 1/2-Drive S-1112 Flex-Head Handle (Short Version).

Fig. 286 shows another 1/2-drive Billings S-1112 flex-head handle, very similar to the previous figure but slightly shorter in length.

The overall length is 11.3 inches, and the finish is chrome plating, now missing in many areas due to wear and rust.


S-1211 Vitalloy 1/2-Drive Sliding Tee Handle

[Billings Vitalloy 1/2-Drive S-1211 Sliding Tee Handle]
Fig. 287. Billings Vitalloy 1/2-Drive S-1211 Sliding Tee Handle, with Insets for Top View and Marking Detail.

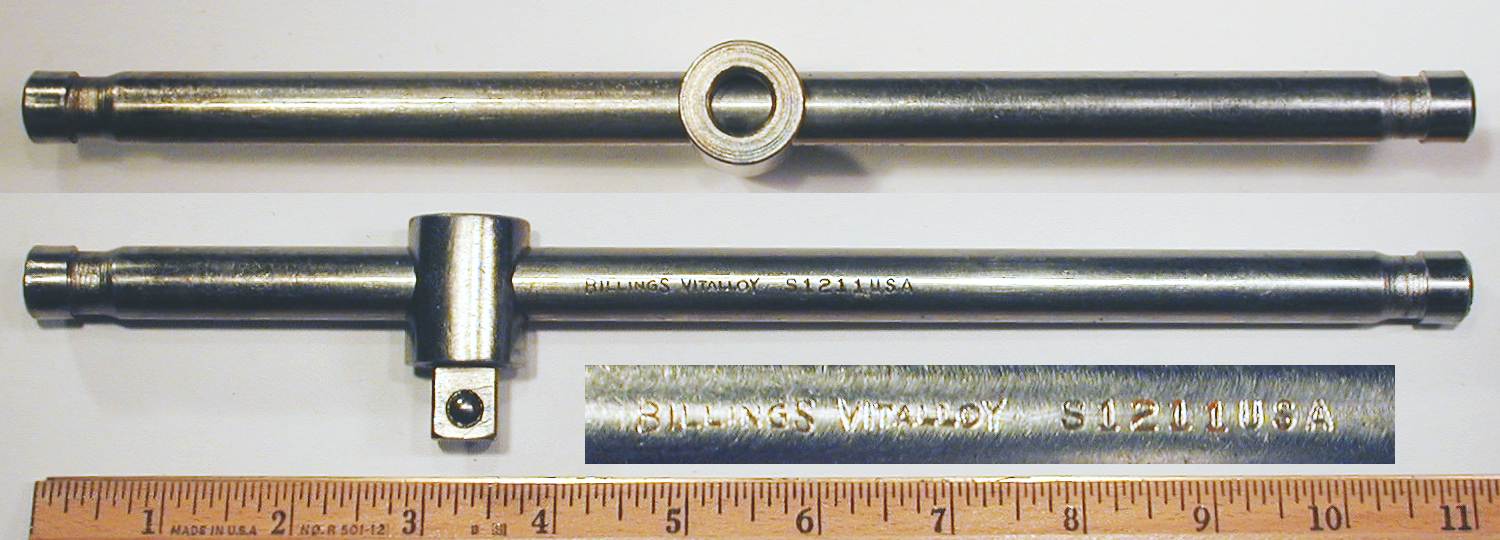

Fig. 287 shows a 1/2-drive Billings S-1211 sliding Tee handle, stamped "Vitalloy" and "USA" on the bar.

The overall length is 11.0 inches, and the finish is chrome plating.

This sliding Tee handle has a distinctive design using stepped grooves to retain the sliding head, rather than the more familiar stop-balls. The walls of each groove have a sharp step on the outside and a gradual slope on the inside, so that the head can easily slide to the inside, but can't clear the outer step.

Sliding Tee handles of this design are shown in the 1957 Wright catalog, making Wright the likely manufacturer for this example. It's likely that this breaker bar design was patented at some point; however, the patent is not yet known.


S-1410 Vitalloy 1/2-Drive Ratchet

[Billings Vitalloy S-1410 1/2-Drive Ratchet]

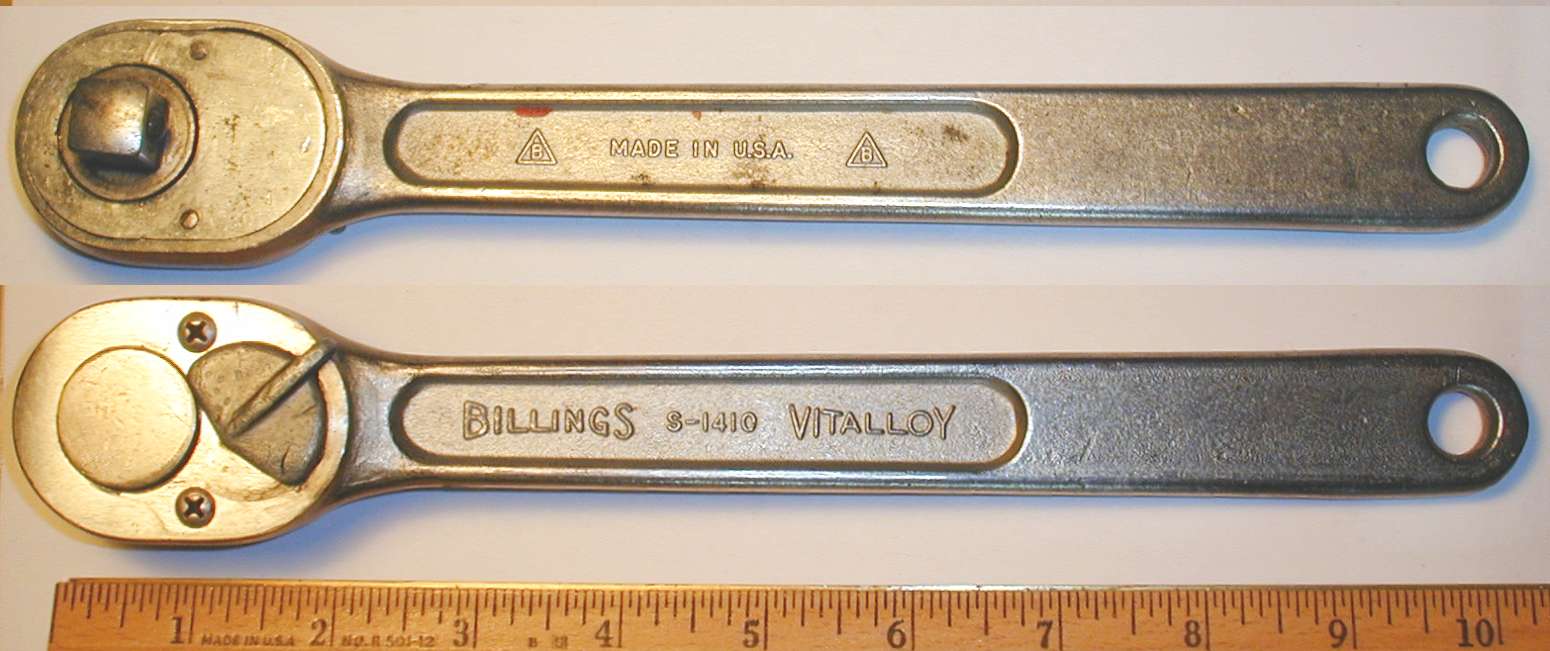

Fig. 288. Billings Vitalloy S-1410 1/2-Drive Ratchet, with Inset for Back Side.

Fig. 288 shows a 1/2-drive Billings Vitalloy S-1410 ratchet, marked "Vitalloy" in forged raised letters, with "Made in U.S.A." and the B-Triangle logo on the back side. The overall length is 10.3 inches.

The ratchet mechanism uses a 24-tooth main gear with dual pawls, and the shift lever operates a lobed cam to alternately deactivate one pawl.

This type of mechanism provides simple and reliable operation with very low back-drag, and has been used by a number of other tool companies, notably Armstrong and Plomb/Proto.

This ratchet is almost certainly one of Billings' own production, as the forged flat handle doesn't resemble any other known examples, and raised-letter markings would be unlikely for contract production. Based on a review of catalogs, this ratchet model had been introduced by 1949 or earlier, and remained in production at least through 1961.


LS-1410 Life-Time 1/2-Drive Ratchet

The next two figures show Billings ratchets marked with the Life-Time trademark and bearing the same model number, but with very different design and construction.

[Billings Life-Time 1/2-Drive LS-1410 Ratchet]
Fig. 289. Billings Life-Time 1/2-Drive LS-1410 Ratchet, with Inset for Back Side.

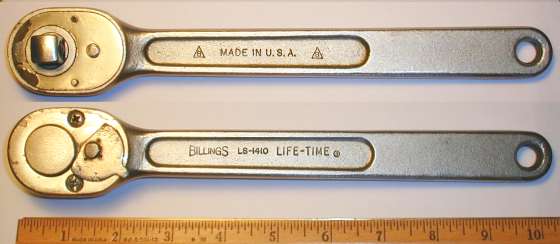

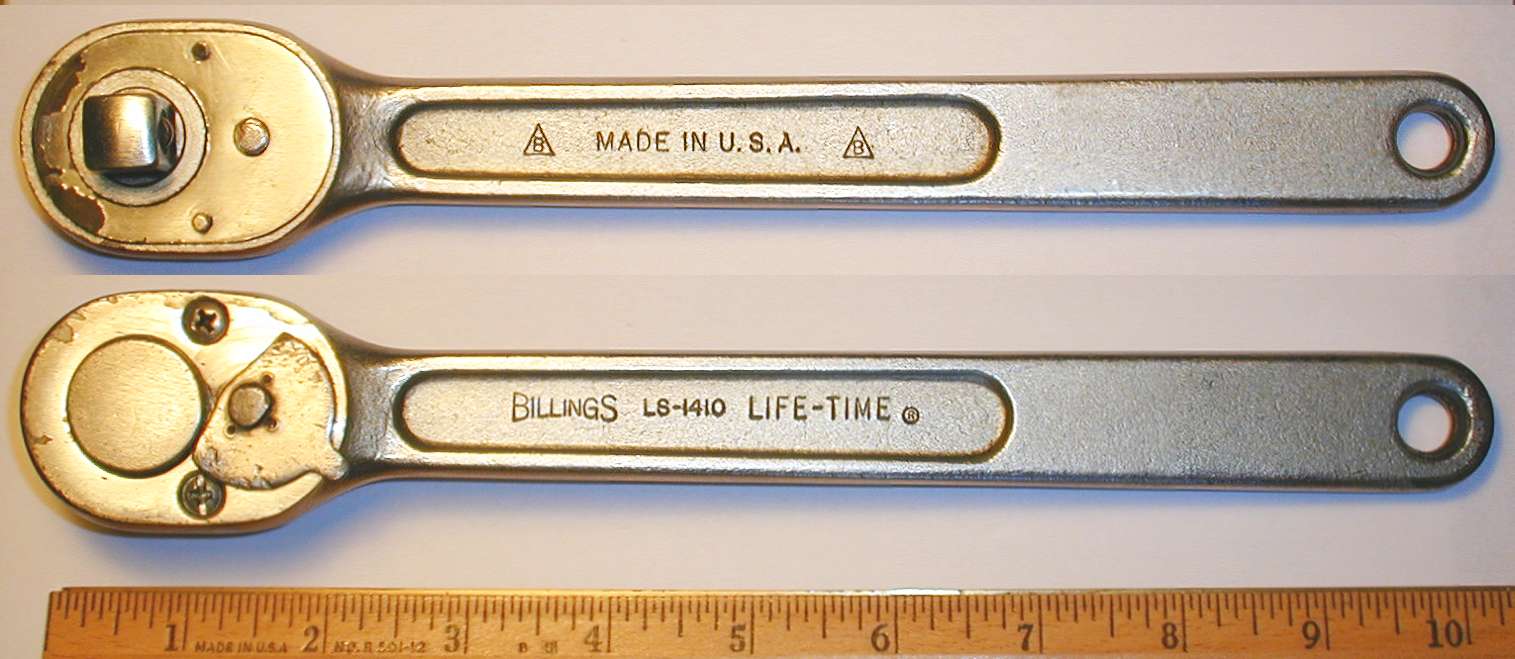

Fig. 289 shows a 1/2-drive Billings LS-1410 ratchet with a forged flat handle, with stamped markings "Billings" and "Life-Time" on one side, and "Made in U.S.A." with the B-Triangle logo on the back side. The overall length is 10.2 inches.

This ratchet is nearly identical to the S-1410 Ratchet shown above, but note that the markings here are stamped rather than forged into the handle.


LS-1410 Life-Time 1/2-Drive Transverse Slide-Shift Ratchet

[Billings Life-Time 1/2-Drive LS-1410 Transverse Slide-Shift Ratchet]
Fig. 290. Billings Life-Time 1/2-Drive LS-1410 Transverse Slide-Shift Ratchet, with Inset for Back Side, ca. 1954.

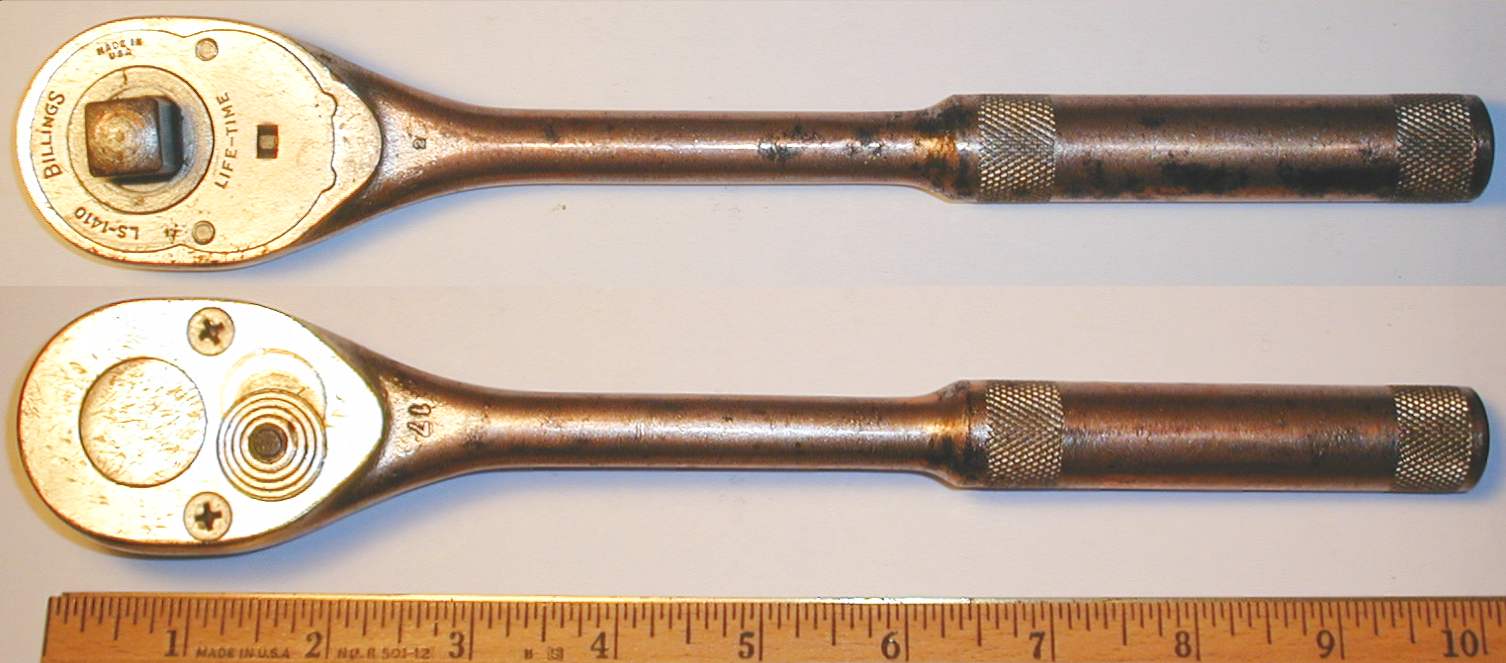

Fig. 290 shows a 1/2-drive Billings LS-1410 ratchet with a distinctive transverse slide shifter, marked "Life-Time" and "Made in U.S.A." on the back side cover plate.

The overall length is 10.0 inches. The original finish was chrome plating, but it has now worn away over most areas to expose the underlying copper plating. (Chrome plating on steel is usually done as three layers, chrome over nickel over copper.) This extensive but uniform loss of plated finish likely indicates a problem with the plating process.

The design and construction of the ratchet is virtually identical to the Herbrand S-5 Ratchet from around 1954, confirming that this ratchet was made for Billings by Herbrand. Earlier Herbrand ratchets used a longitudinal slide shifter that required asymmetrical pawls of a special contour, but by the mid-1950s Herbrand had changed to a transverse slide of the type shown here.

In addition to the design similarities, Herbrand ratchets of this era are also known to exhibit the loss of finish evident here. See for example the Herbrand J-5 Ratchet, a very similar 3/8-drive model.


S-102 Vitalloy 1/2-Drive 2 Inch Extension

[Billings Vitalloy 1/2-Drive S-102 2 Inch Extension]

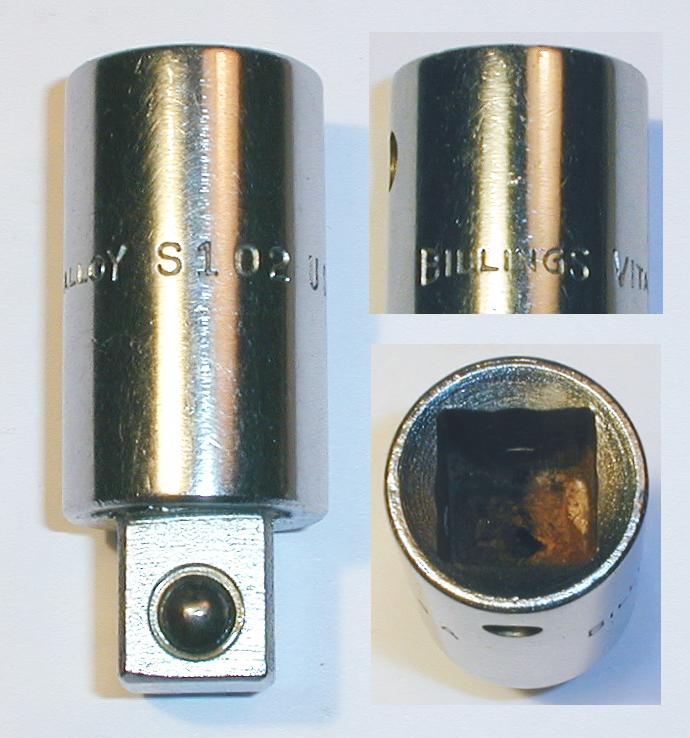

Fig. 291. Billings Vitalloy 1/2-Drive S-102 2 Inch Extension, with Insets for Detail.

Fig. 291 shows a 1/2-drive Billings S-102 2 inch extension, marked "Vitalloy" and "USA" on the shank.

The overall length is 2.0 inches, and the finish is polished chrome.

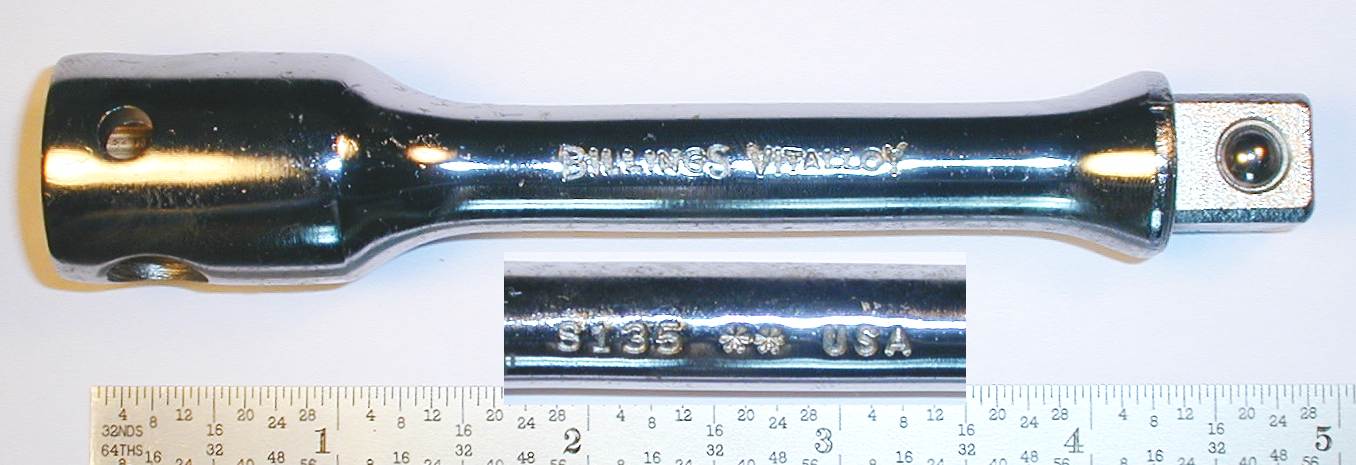

S-135 Vitalloy 1/2-Drive 5 Inch Extension

[Billings Vitalloy 1/2-Drive S-135 5 Inch Extension]
Fig. 292. Billings Vitalloy 1/2-Drive S-135 5 Inch Extension, with Inset for Marking Detail.

Fig. 292 shows a 1/2-drive Billings S-135 5 inch extension, marked "Vitalloy" with "Made in U.S.A." on the back side.

The overall length is 4.8 inches, and the finish is polished chrome.

The drive end is equipped with a cross-bar hole, allowing use as a T-handle as well as an extension.


LS-135 Life-Time 1/2-Drive Extension

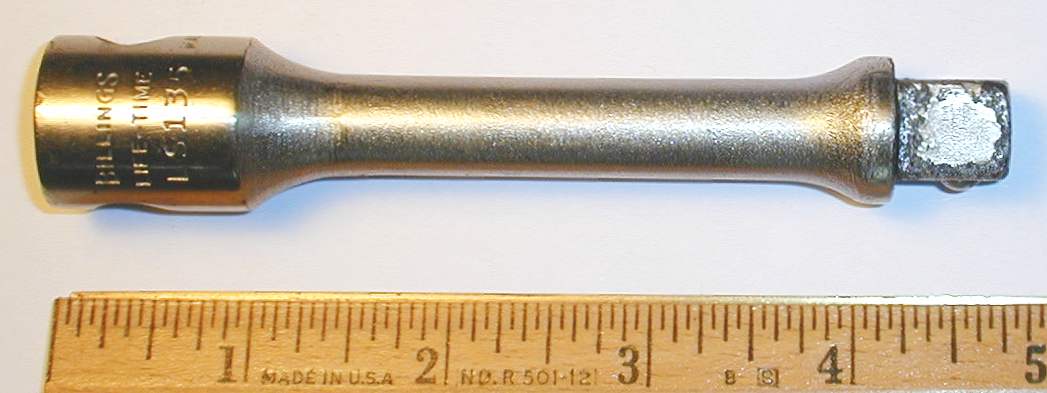

[Billings Life-Time 1/2-Drive LS-135 5 Inch Extension]
Fig. 293. Billings Life-Time 1/2-Drive LS-135 5 Inch Extension.

Fig. 293 shows a 1/2-drive Billings LS-135 5 inch extension, marked "Life-Time" and "Made in U.S.A." on the head.

The overall length is 4.7 inches, and the finish is plated chrome.

The drive end is bored for a cross-bar hole to allow use as a T-handle.

This extension closely resembles the Wright N12 Extension shown in our article on Wright Tool & Forge.


LS-1310 Life-Time 1/2-Drive Extension

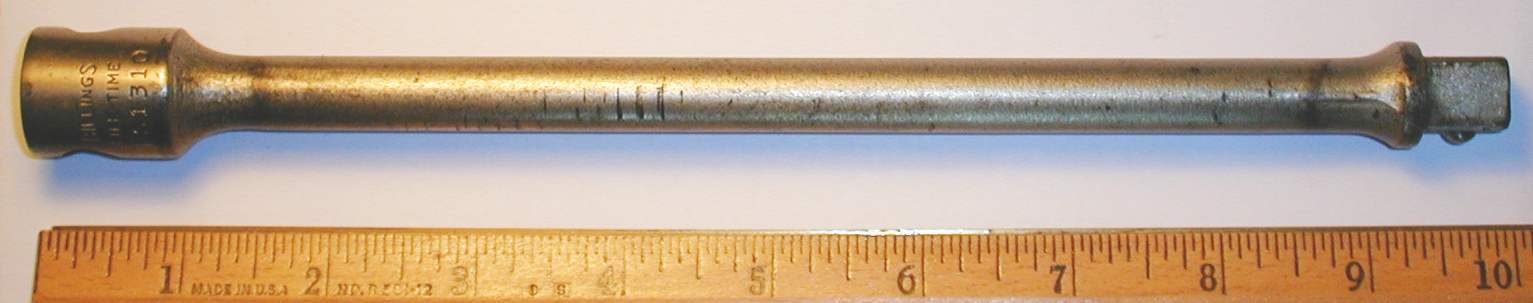

[Billings Life-Time 1/2-Drive LS-1310 10 Inch Extension]
Fig. 294. Billings Life-Time 1/2-Drive LS-1310 10 Inch Extension.

Fig. 294 shows a 1/2-drive Billings LS-135 10 inch extension, marked "Life-Time" and "Made in U.S.A." on the head. The overall length is 9.8 inches, and the finish is plated chrome.

The drive end is bored for a cross-bar hole to allow use as a T-handle.

The drive stud end of the extension shows a small raised ridge left by the forging operation, showing that the fluted end was shaped by the forging die rather than by turning.


LS-9A Life-Time 1/2-Drive Socket Set

The previous figures have shown several examples of tools in the Billings Life-Time series, and we'll now show a socket set incorporating some of these tools. Billings packaged its tools into a number of different sets, with varying numbers of sockets and drive tools for every application and budget. Our example here is one of the smaller sets.

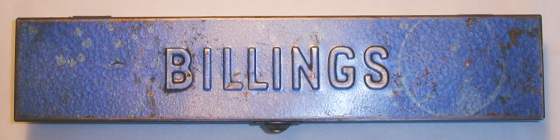

[Cover of Billings Life-Time LS-9A Socket Set]
Fig. 295. Cover of Billings Life-Time LS-9A Socket Set.

Fig. 295 shows the top cover of the Billings Life-Time LS-9A socket set, with the Billings name embossed on the top.


[Billings Life-Time LS-9A 1/2-Drive Socket Set]

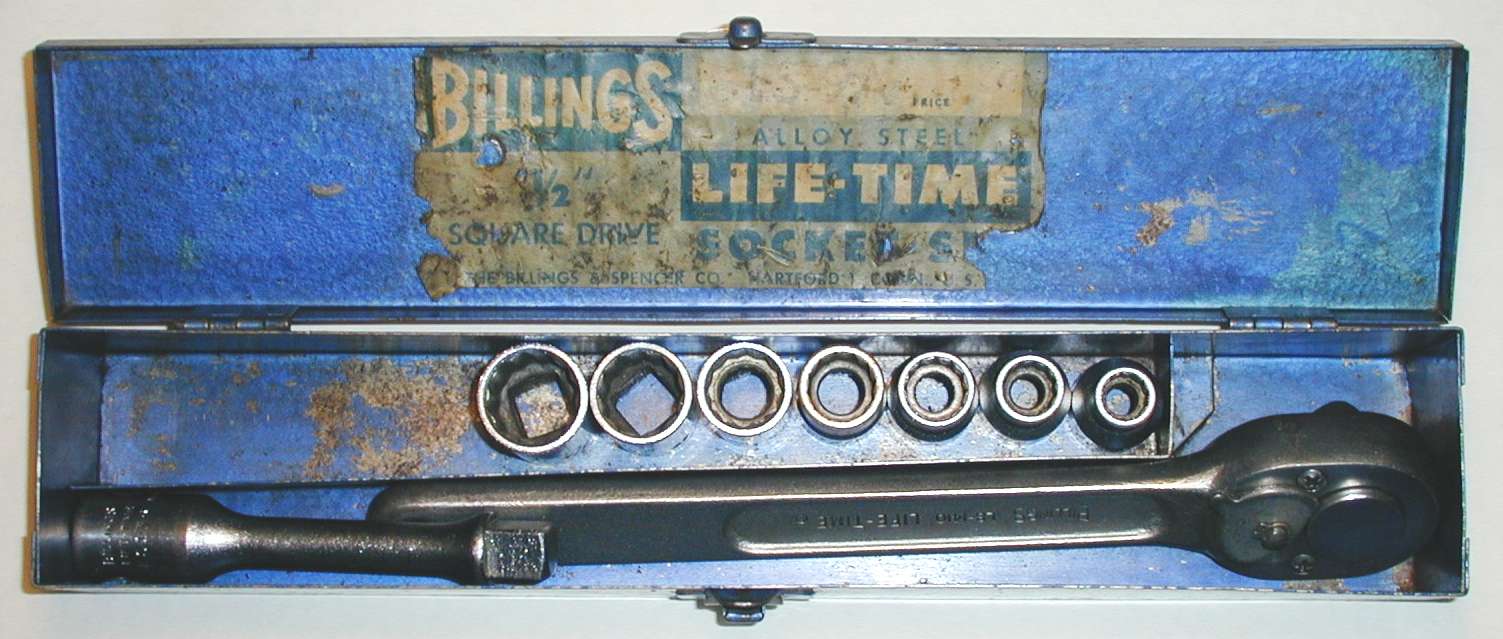

Fig. 296. Billings Life-Time LS-9A 1/2-Drive Socket Set, ca. 1960.

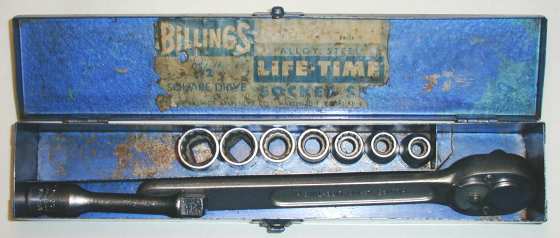

Fig. 296 shows the Billings Life-Time LS-9A 1/2-drive socket set in its metal box. The paper label on the lid is somewhat tattered, but includes the text "Billings Life-Time Alloy Steel" and "1/2 Square Drive Socket Set". (The model number "LS-9A" is faintly stamped at the top.)

The set consists of a LS-1410 ratchet in the Billings-made flat-handle style, a LS-135 extension, and seven sockets in the LS12xx series. The sockets are, from the left, LS1224 (3/4), LS1222 (11/16), LS1220 (5/8), LS1218 (9/16), LS1216 (1/2), LS1214 (7/16), and LS1212 (3/8). The box includes space for more sockets, but this starter set included only this modest selection of sizes.


[Billings Life-Time 1/2-Drive LS-12xx Sockets]
Fig. 297. Billings Life-Time 1/2-Drive LS-12xx Sockets, ca. 1960.

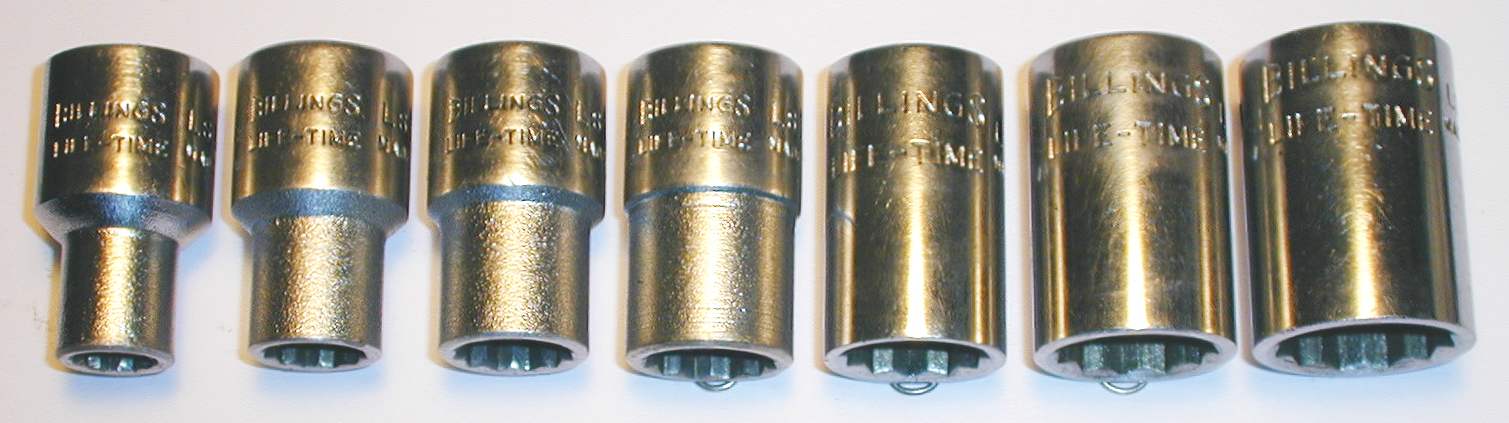

Fig. 297 shows the seven sockets from the LS-9A set, all marked "Billings Life-Time" and "Made in U.S.A." with LS12xx model numbers. The models and sizes are, from the left, LS1212 (3/8), LS1214 (7/16), LS1216 (1/2), LS1218 (9/16), LS1220 (5/8), LS1222 (11/16), and LS1224 (3/4).

These sockets closely resemble the sockets produced by Wright Tool, as can be seen by comparison with the Wright 1/2-Drive Smaller Sockets and Wright 1/2-Drive Larger Sockets. The sockets made by Wright and Herbrand are often quite similar in appearance and construction; however, after 1955 Wright changed its design to use a cylindrical form for sizes 5/8 to 1 inch, but Herbrand continued using a reduced base for these sizes. The 1/2-drive Billings sockets of this era all have a cylindrical form in the larger sizes, indicating that the production was most probably by Wright Tool.


H-1121 Vitalloy 3/4-Drive Flex-Head Handle

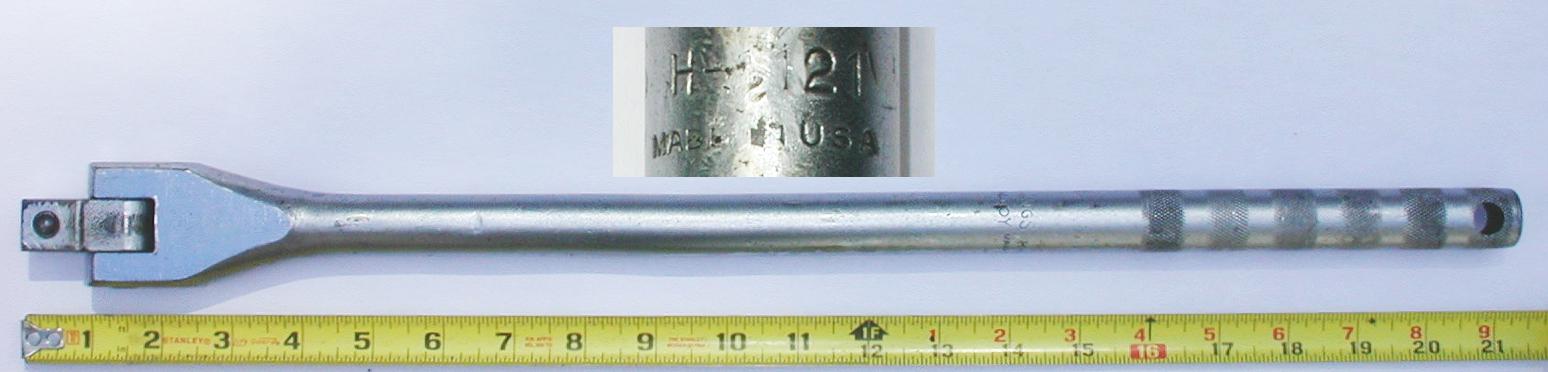

[Billings 3/4-Drive H-1121 Flex-Head Handle]
Fig. 298. Billings 3/4-Drive H-1121 Flex-Head Handle, with Inset for Marking Detail.

Fig. 298 shows a Billings 3/4-Drive H-1121 flex-head handle, stamped "Vitalloy" and "Made in USA" on the shank (see inset).

The overall length is 21.2 inches, and the finish is chrome plating.

The distinctive design of this tool closely resembles the Herbrand H-15 Breaker Bar shown in our article on Herbrand. Particular points of similarity include the massive wedge-shaped fork, the use of a spring-loaded plunger to control the head movement, and the banded knurling on the handle.


H-1220 3/4-Drive Sliding Tee Handle

[Billings 3/4-Drive H-1220 Sliding Tee Handle]

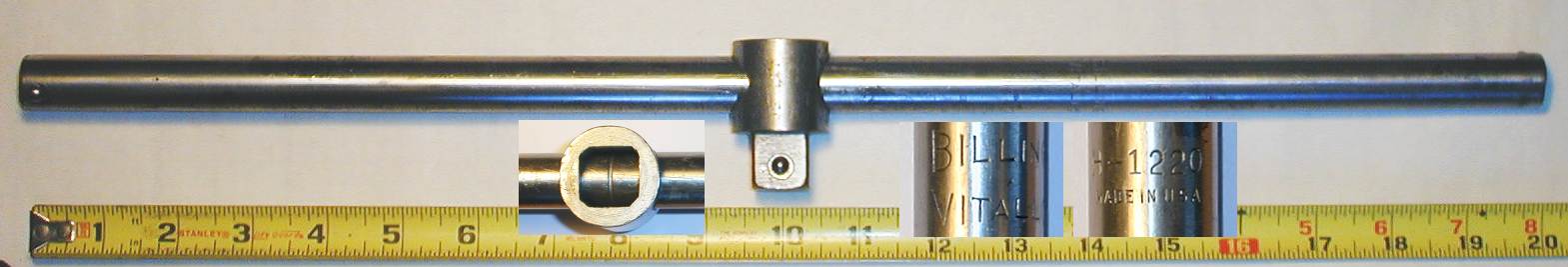

Fig. 299. Billings 3/4-Drive H-1220 Sliding Tee Handle, with Insets for Top and Marking Detail.

The overall length is 20.0 inches, and the finish is chrome plating.


H-1421 Vitalloy 3/4-Drive Slide-Shifter Ratchet

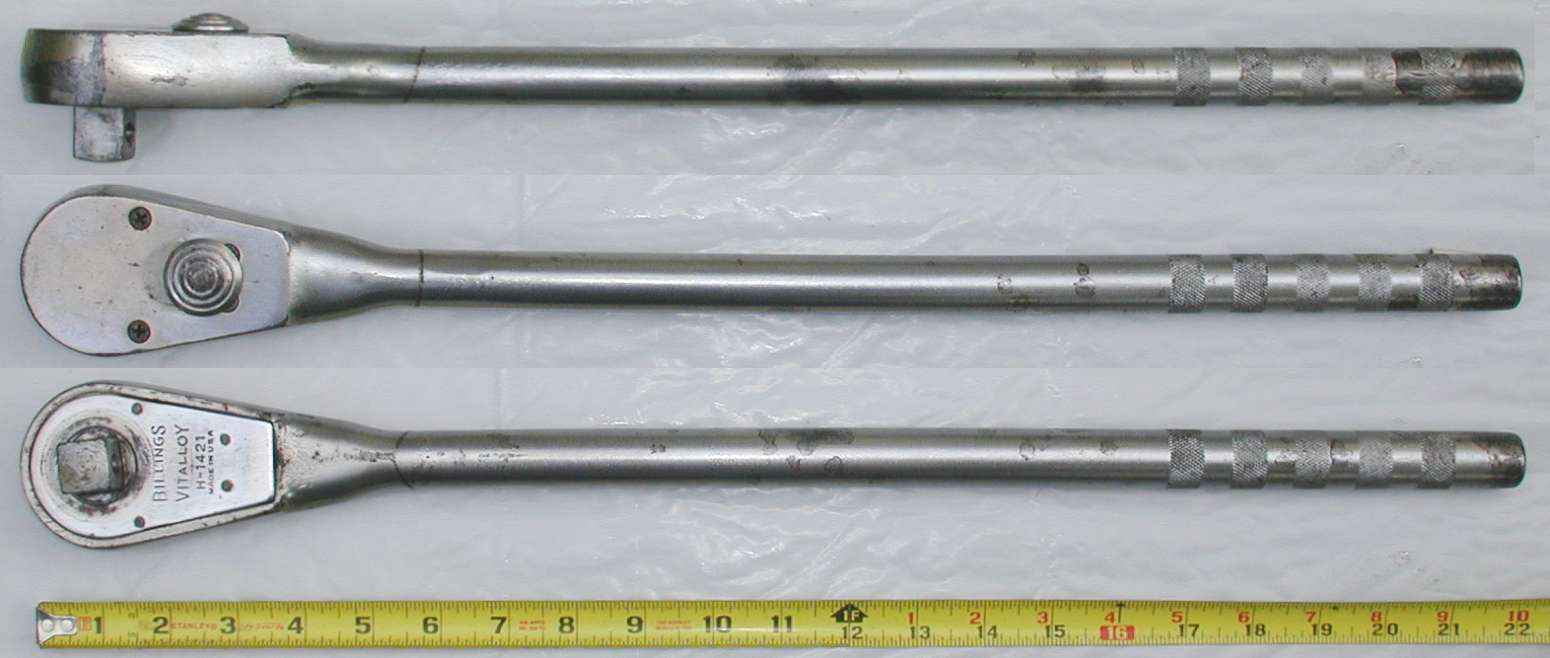

[Billings 3/4-Drive H-1421 Slide-Shifter Ratchet]
Fig. 300. Billings 3/4-Drive H-1421 Slide-Shifter Ratchet, with Insets for Side View and Back Side, ca. 1958-1962.

Fig. 300 shows a 3/4-drive Billings H-1410 ratchet with a sliding shift button, marked "Vitalloy" and "Made in U.S.A." on the back side cover plate.

The overall length is 22.1 inches, and the finish is chrome plating.

The design and construction of this ratchet match the description of the Herbrand model H-11 ratchet shown in Herbrand catalogs from 1954 and 1960. In particular, the five knurled bands on the handle are characteristic of this time period. (The Herbrand H-11 ratchets from the 1940s had a fully knurled handle.)

The Billings catalog from 1955 shows a different style for their H-1421 ratchet, but by 1961 the catalog illustration matches the Herbrand model exactly, right down to the five bands on the handle and the distinctive shift button.

The ratchet mechanism uses a 30-tooth main gear with dual pawls, and the asymmetric pawls have a special contoured surface so that the movement of the shifter stud will alternately deactivate one pawl. Herbrand developed this mechanism sometime in the late 1930s or early 1940s, and used it on ratchets from 3/8 up to 3/4-drive.

An example of the Herbrand linear slide shifter can be seen in the Herbrand S-10 Ratchet. Herbrand's later production (by the mid-1950s) changed to a transverse slide shifter for the 1/2-drive and smaller sizes, probably to avoid the need for asymmetric pawls.

This ratchet has a smooth, quiet action with remarkably low back-drag for its size, and the generously long handle gives great leverage.


H-1421 Vitalloy 3/4-Drive Fine-Tooth Ratchet

The next figure shows another example of the H-1421 ratchet, but made by Wright Tool and Forge, and with a completely different round-head fine-tooth design.

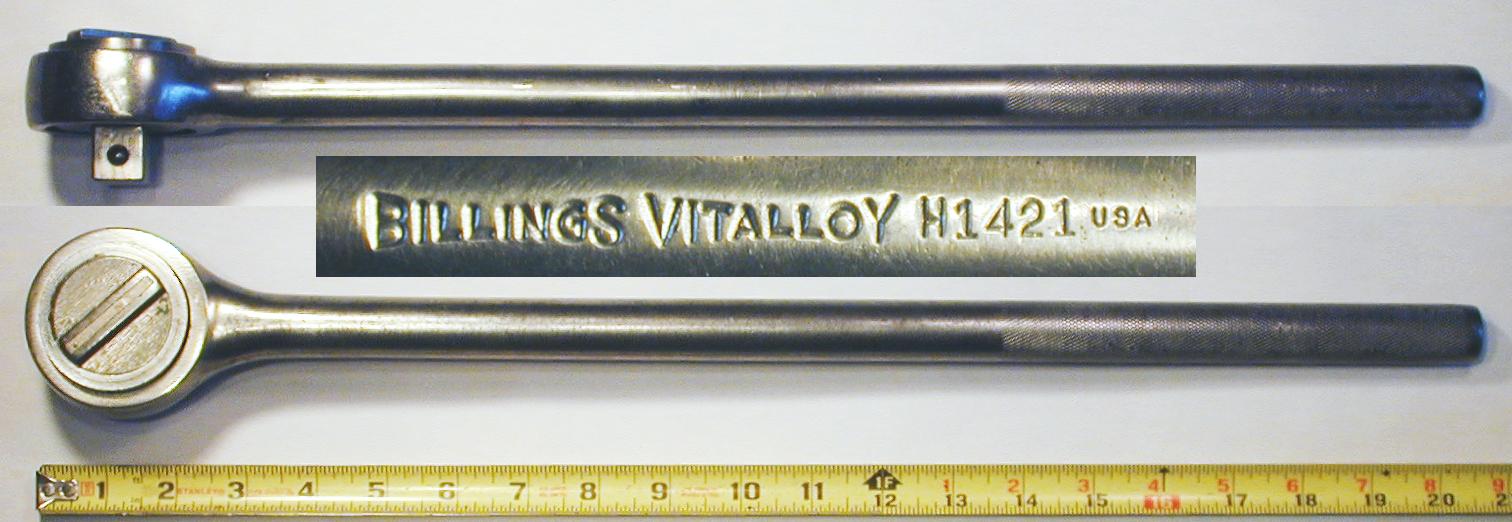

[Billings 3/4-Drive H-1421 Fine-Tooth Ratchet]
Fig. 301. Billings 3/4-Drive H-1421 Fine-Tooth Ratchet, with Insets for Side View and Back Side Detail, ca. 1960s.

Fig. 301 shows another example of the model H-1421 ratchet, a 3/4-drive Billings H-1421 round-head fine-tooth ratchet. The shank is stamped "Vitalloy" and "USA" on the back side.

The overall length is 20.5 inches, and the finish is chrome plating, with losses due to wear and rust.

The construction details for this ratchet close resemble the round-head fine-tooth models made by Wright Tool and Forge, and the ratchet mechanism has a 60-tooth gear in the head.


C-118 Vitalloy 3/8-Drive Flex Handles

The next two figures show examples of the Billings C-118 3/8-drive flex-head handle.

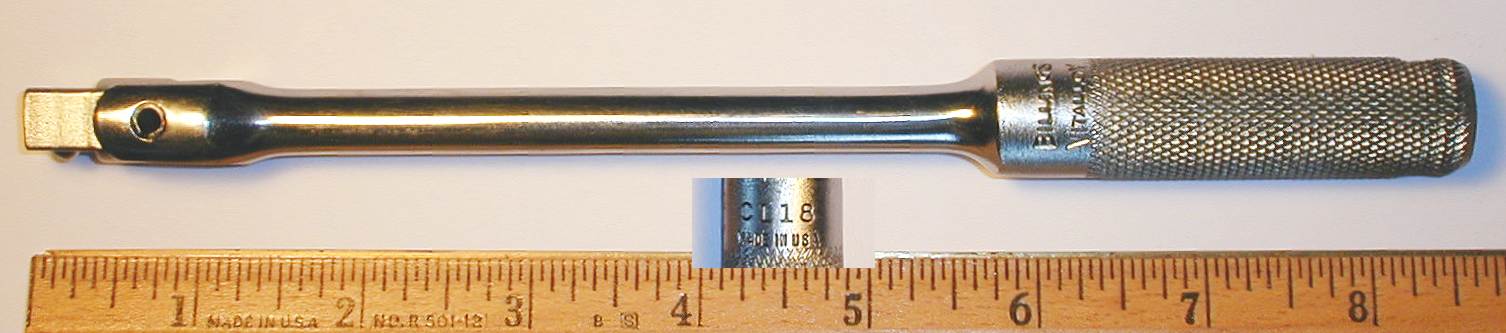

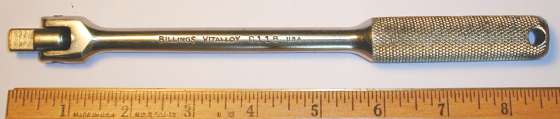

[Billings 3/8-Drive C-118 Flex Handle]
Fig. 302. Billings 3/8-Drive C-118 Flex Handle.

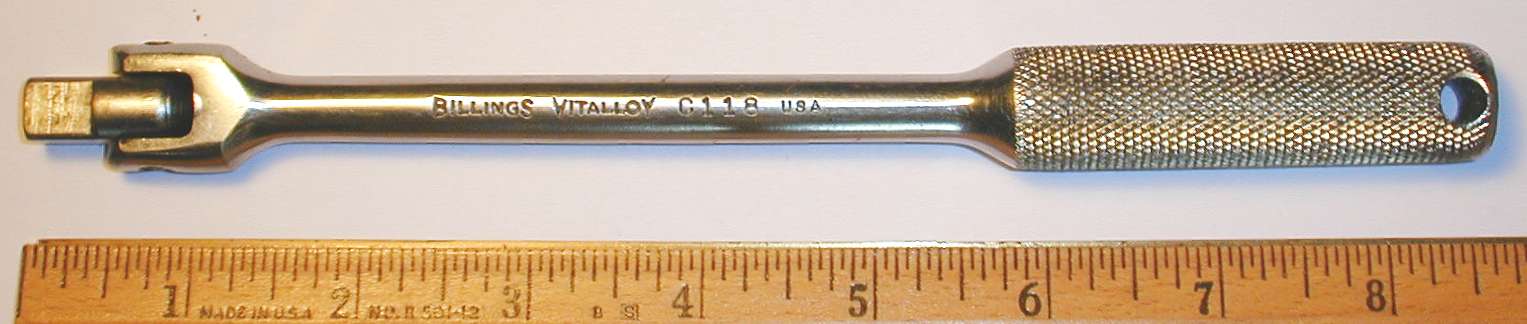

Our first example is shown in Fig. 302 at the left, a 3/8-drive Billings C-118 flex-head handle, marked "Vitalloy" and "Made in USA" on the knurled handle.

The overall length is 8.5 inches, and the finish is chrome plating.

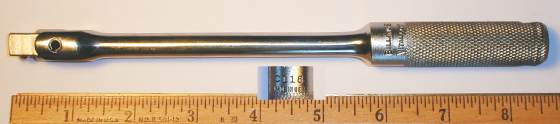

[Billings 3/8-Drive C-118 Flex-Head Handle]
Fig. 303. Billings 3/8-Drive C-118 Flex-Head Handle.

Fig. 303 shows a similar Billings C-118 flex-head handle, marked "Vitalloy" and "USA" on the shank.

The overall length is 8.5 inches, and the finish is chrome plating.


C-128 Vitalloy 3/8-Drive Sliding Tee Handle

[Billings 3/8-Drive C-128 Sliding Tee Handle]
Fig. 304. Billings 3/8-Drive C-128 Sliding Tee Handle.

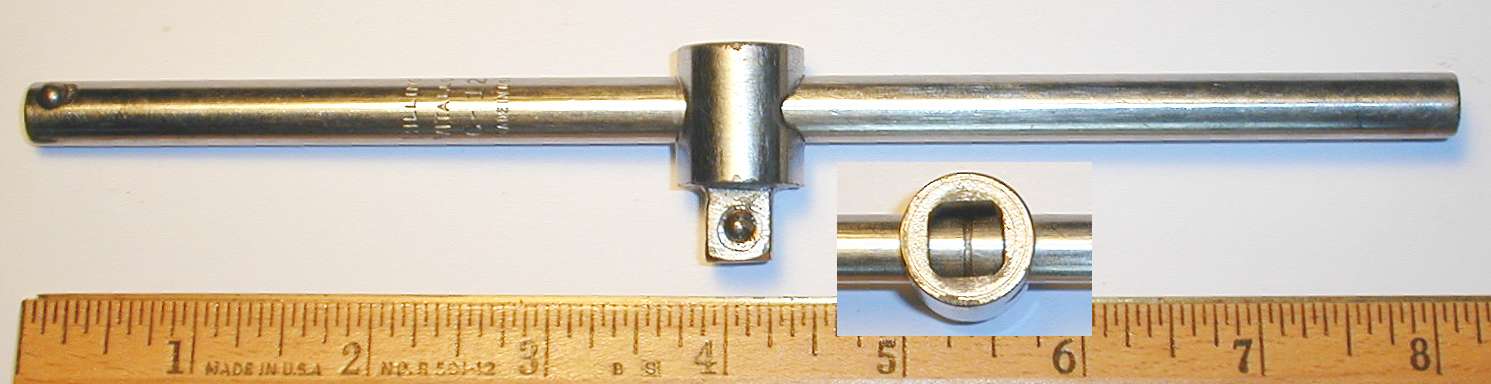

Fig. 304 shows a 3/8-drive Billings C-128 sliding Tee handle, marked "Vitalloy" and "Made in USA" on the bar.

The overall length is 8.0 inches, and the finish is chrome plating.

The inset shows the open form of the sliding head.


C-147 Vitalloy 3/8-Drive Ratchet

[Billings 3/8-Drive C-147 Ratchet]
Fig. 305. Billings 3/8-Drive C-147 Ratchet.

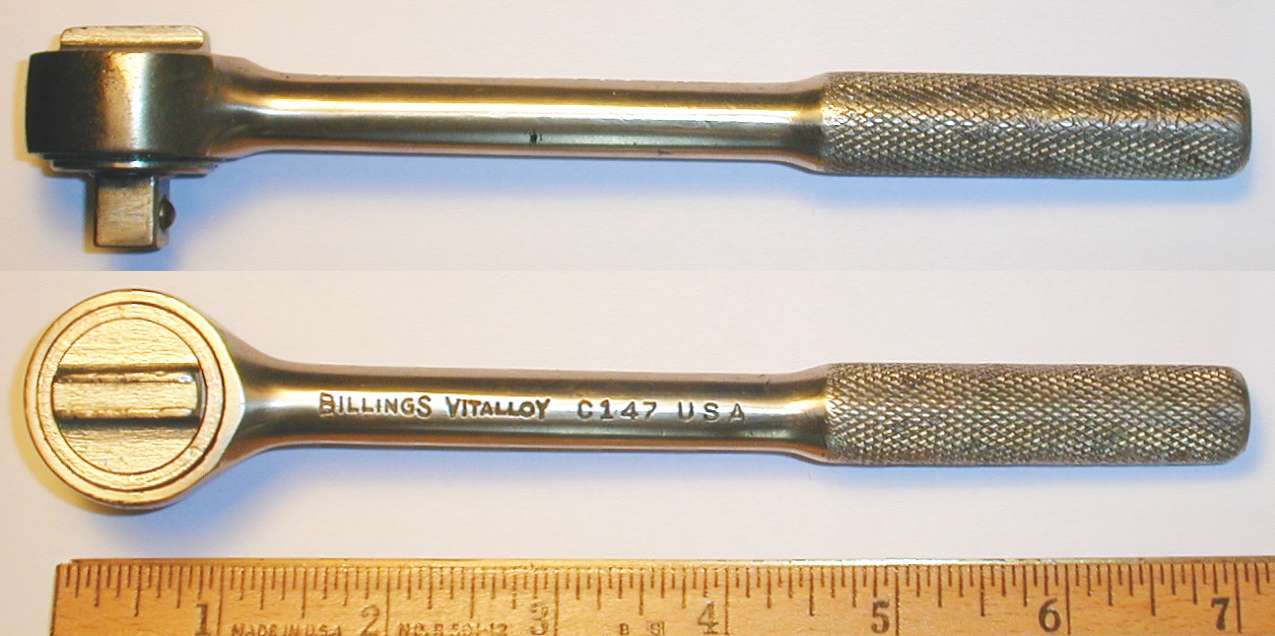

Fig. 305 shows a 3/8-drive Billings C-147 ratchet, marked "Vitalloy" and "USA" on the shank.

The overall length is 7.0 inches, and the finish is chrome plating.

This ratchet closely resembles the Wright 34xx ratchet series, except for the hand grip, as can be seen in the Wright 3400 Ratchet. The Wright soft-grip handles were introduced in the early 1960s, and prior to that the company did make ratchets with knurled handles.


1/4-Drive Tools

Based on a review of their catalogs, Billings didn't introduce 1/4-drive socket tools until sometime in the 1950s. Our earliest reference is the 1955 Billings catalog, and the illustrations of 1/4-drive tools in that catalog closely match the examples made by New Britain Machine for their Husky, None Better, and other brands.

New Britain Machine had been a secondary supplier to Billings back in the 1930s (see the 5864 Extension for an example), and the 1/4-drive line shows that New Britain continued as a supplier into the 1950s.


M-8xx 1/4-Drive 8-Point Sockets

[Billings M-8xx 1/4-Drive 8-Point Sockets]

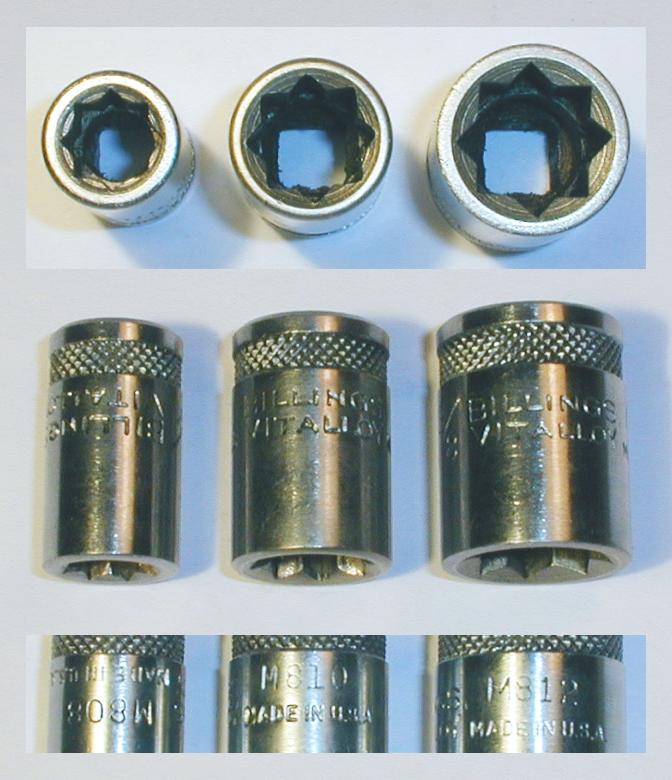

Fig. 306. Billings M-8xx 1/4-Drive 8-Point Sockets, with Insets for Broaching and Marking Detail, ca. 1950s.

Fig. 306 shows a group of three 1/4-drive Billings M-8xx 8-point sockets, stamped "Vitalloy" and "Made in U.S.A." on the base.

The models and sizes are, from the left, M-808 (1/4), M-810 (5/16), and M-812 (3/8). (For some reason, the markings on the 1/4 socket are upside-down compared to the other two.)

The finish is chrome plating.

These sockets have a distinctive band of cross-hatched knurling around the base, a decorative feature used on the sockets produced by New Britain Machine from the mid 1930s through the 1950s. Sockets in this style were widely sold under the New Britain, None Better, and Husky brands, and as the Craftsman "BE" and H-Circle brands as well.

These examples closely match the 1/4-drive sockets illustrated in the 1955 Billings catalog.


M-124 1/4-Drive Sliding Tee Handle

[Billings 1/4-Drive M-124 Sliding Tee Handle]
Fig. 307. Billings M-124 1/4-Drive Sliding Tee Handle, ca. 1950s.

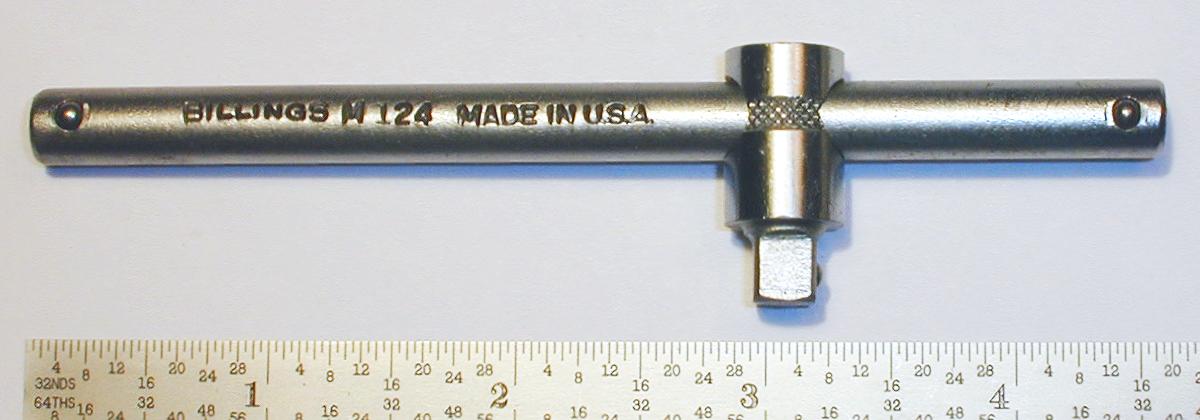

Fig. 307 shows a 1/4-drive Billings M-124 sliding Tee handle, stamped "Made in U.S.A." on the shank.

The overall length is 4.5 inches, and the finish is chrome plating.

The sliding head has a band of cross-hatched knurling, a decorative feature found on sockets and tools made by New Britain, identifying New Britain as the contract maker for this tool.

[Billings 1/4-Drive M-124 Sliding Tee Handle]
Fig. 308. Billings M-124 1/4-Drive Sliding Tee Handle, ca. 1950s.

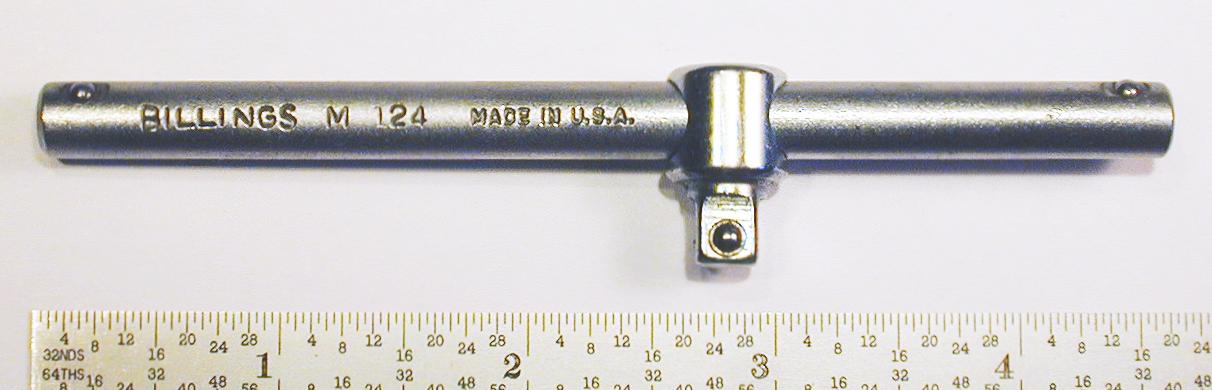

Fig. 308 shows another example of the 1/4-drive Billings M-124 sliding Tee handle, stamped "Made in U.S.A." on the shank.

The overall length is 4.5 inches, and the finish is chrome plating.


M-116 1/4-Drive Flex-Head Handle

[Billings M-116 1/4-Drive Flex-Head Handle]
Fig. 309. Billings M-116 1/4-Drive Flex-Head Handle, with Inset for Back Side Detail.

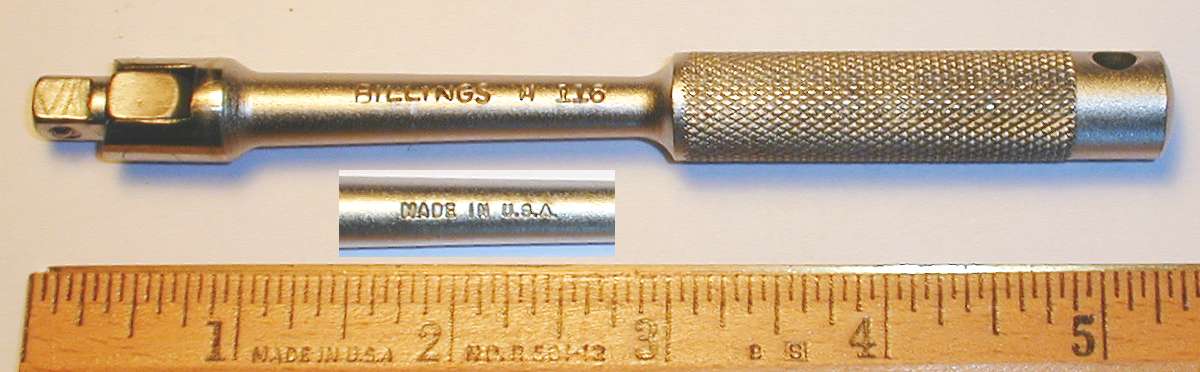

Fig. 309 shows a 1/4-drive Billings M-116 flex-head handle, marked "Made in U.S.A." on the shank.

The overall length is 5.3 inches, and the finish is chrome plating.

The knurled handle is equipped with a cross-bar hole.


M-206 1/4-Drive Handle

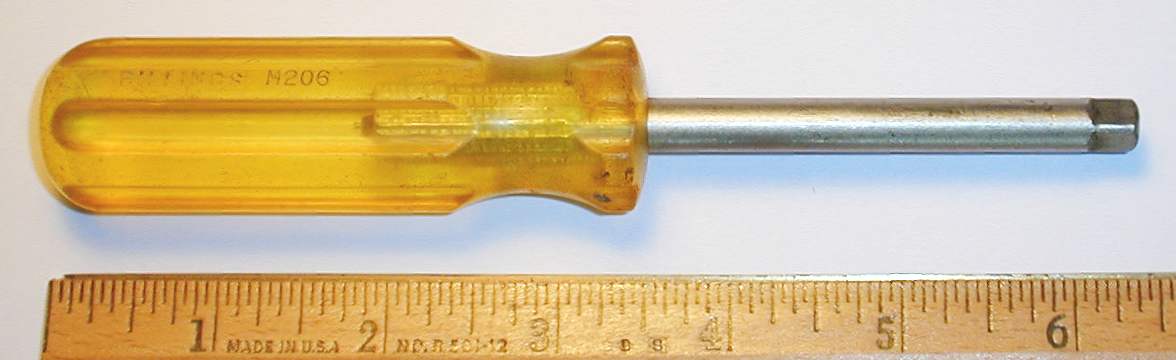

[Billings M-206 1/4-Drive Drive Handle]
Fig. 310. Billings M-206 1/4-Drive Drive Handle.

Fig. 310 shows a Billings M-206 1/4-drive drive handle, marked with just the company name and model.

The overall length is 6.3 inches, and the drive shank is finished in chrome plating.

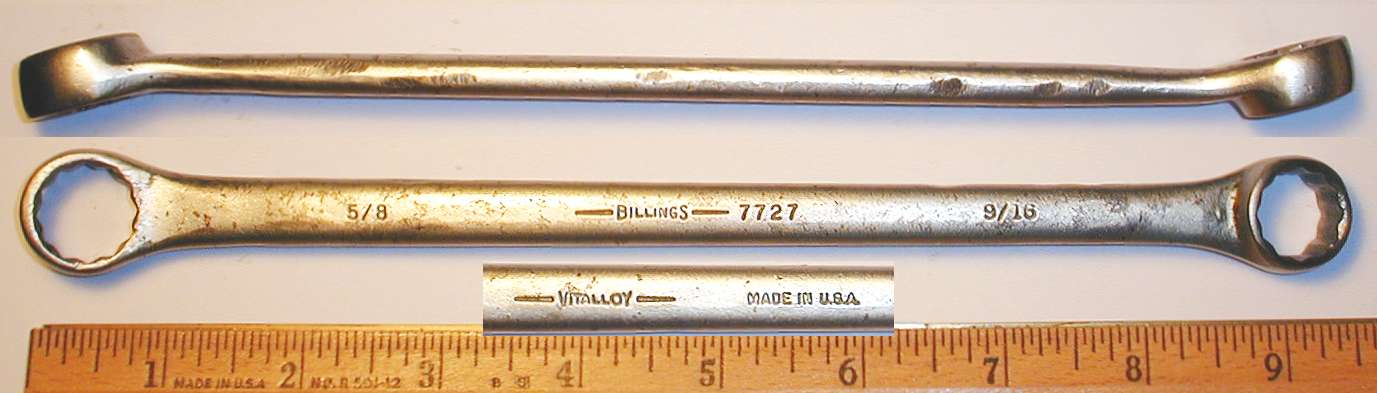

Later Vitalloy Wrenches

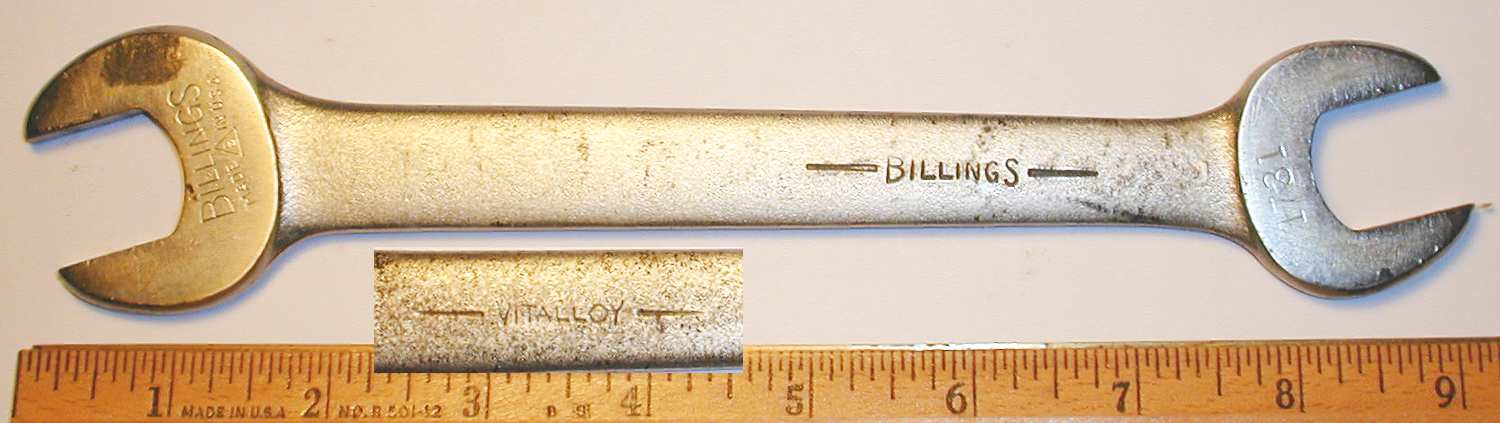

By 1948 Billings had updated its open-end wrench design to use an oval shank with stamped (rather than forged-in) markings. This would have greatly simplified their die-making operations, and the change was probably made to allow for more economical production.

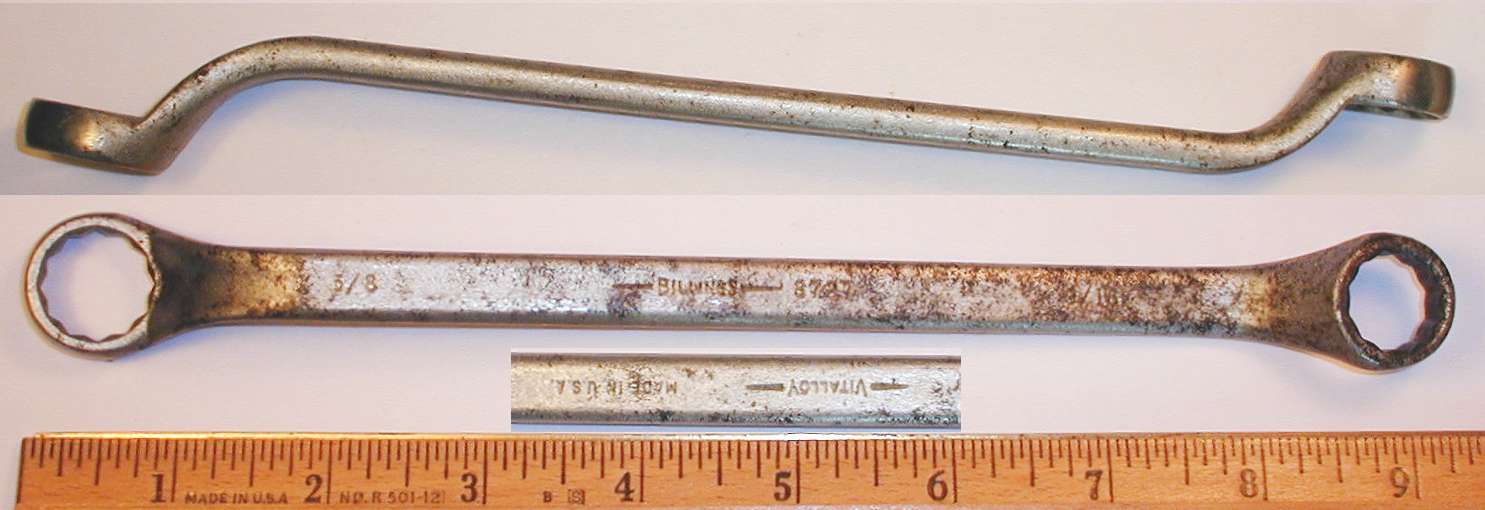

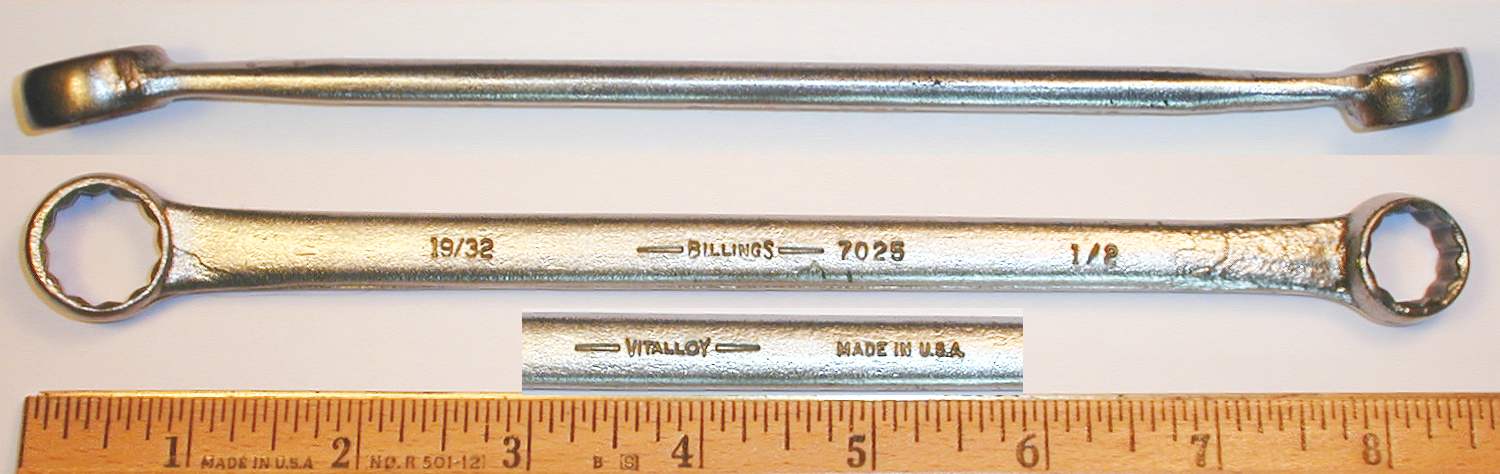

The offset box wrench design was also simplified to a flat or slightly convex shank around the same time. The straight angled wrench models didn't need to be changed much, as these models had used a convex shank with stamped markings all along.

The marking style for this period were changed to place the "Billings" and "Vitalloy" markings on opposite sides of the shank. Open-end and combination wrenches continued to use the Billings Modern face markings, including the B-Triangle mark. However, box-end wrenches were marked "Made in U.S.A." without a B-Triangle mark.

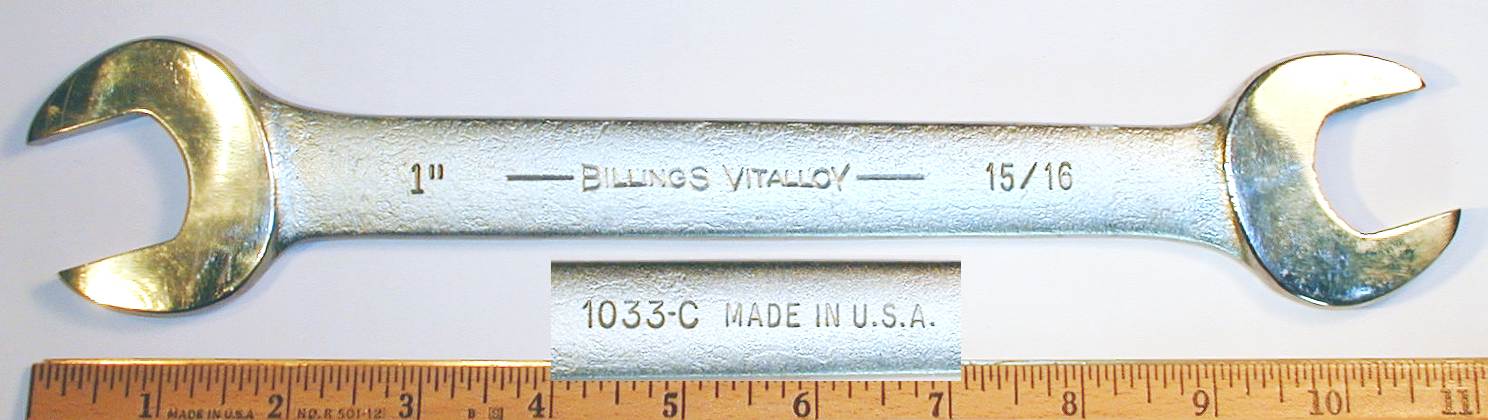

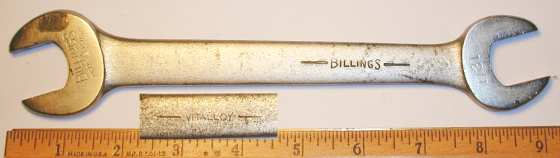

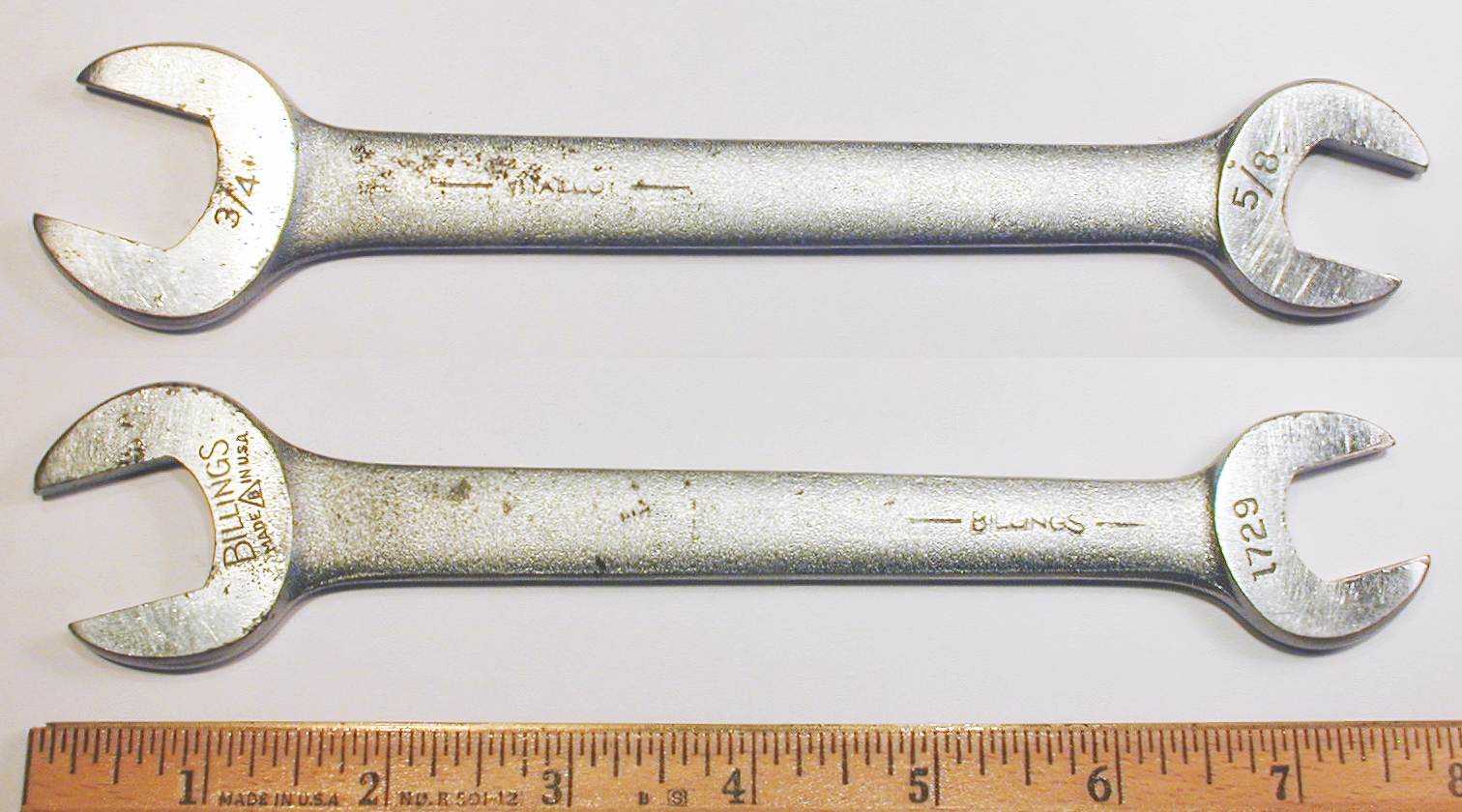

Later Vitalloy Open-End Wrenches

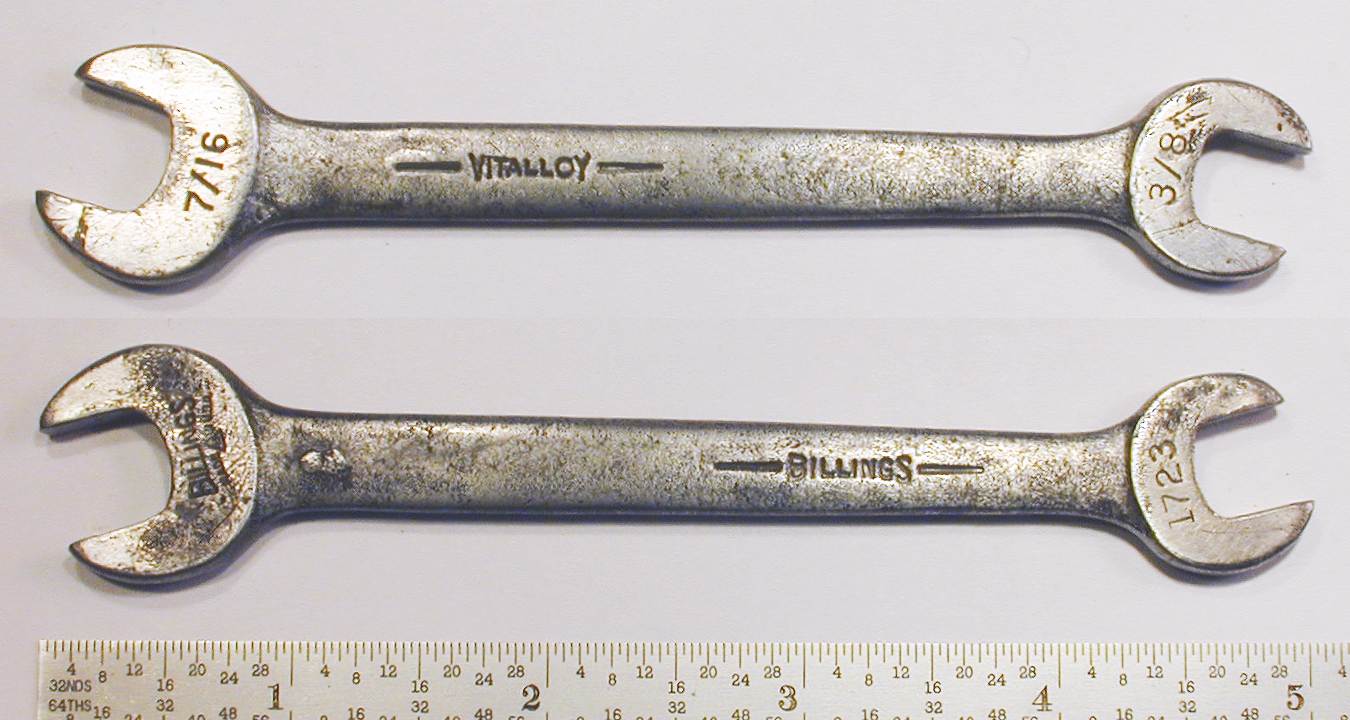

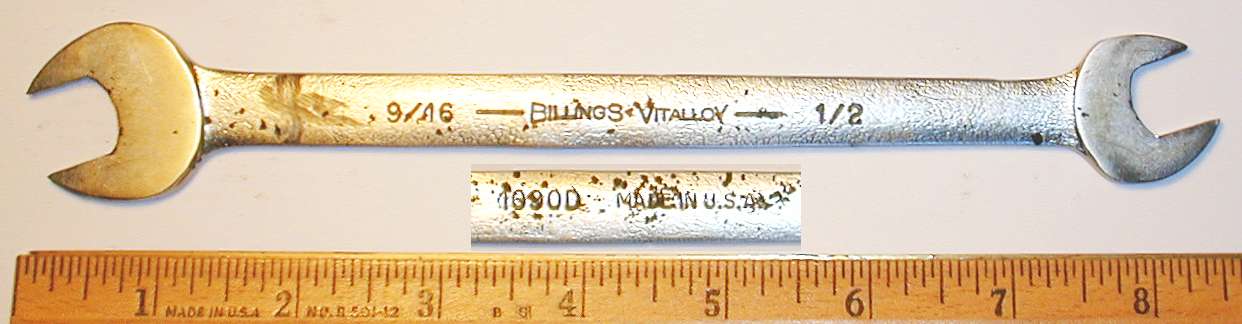

1723 Vitalloy 3/8x7/16 Open-End Wrench, Later Style

[Billings Vitalloy 1723 3/8x7/16 Open-End Wrench]
Fig. 311. Billings Vitalloy 1723 3/8x7/16 Open-End Wrench, with Inset for Back Side, ca. 1948-1962.

Fig. 311 shows a Billings 1723 3/8x7/16 open-end wrench, stamped "Made in U.S.A." with the B-Triangle logo on the face. The shank is stamped with "Billings" on the one side, with "Vitalloy" on the back side.

The overall length is 5.0 inches. The finish is mostly plain steel, with traces of the original chrome plating visible on the faces.


1729 Vitalloy 5/8x3/4 Open-End Wrench, Later Style

[Billings Vitalloy 1729 5/8x3/4 Open-End Wrench]
Fig. 312. Billings Vitalloy 1729 5/8x3/4 Open-End Wrench, with Inset for Back Side Detail, ca. 1948-1962.

Fig. 312 shows a Billings 1729 5/8x3/4 open-end wrench, stamped "Made in U.S.A." with the B-Triangle logo on the face. The shank is stamped with "Billings" on one side, with "Vitalloy" stamped on the back side.

The overall length is 7.8 inches, and the finish is chrome plating.


1731 Vitalloy 3/4x13/16 Open-End Wrench, Later Style

[Billings Vitalloy 1731 3/4x13/16 Open-End Wrench]
Fig. 313. Billings Vitalloy 1731 3/4x13/16 Open-End Wrench, with Inset for Back Side Detail, ca. 1948-1962.

Fig. 313 shows a Billings 1731 3/4x13/16 open-end wrench, marked "Made in U.S.A." with the B-Triangle logo on the face, and with "Billings" and "Vitalloy" stamped on the shank.

The overall length is 9.1 inches.


1031B Vitalloy 25/32x13/16 Open-End Wrench, Later Style

[Billings Vitalloy 1031B 25/32x13/16 Open-End Wrench]

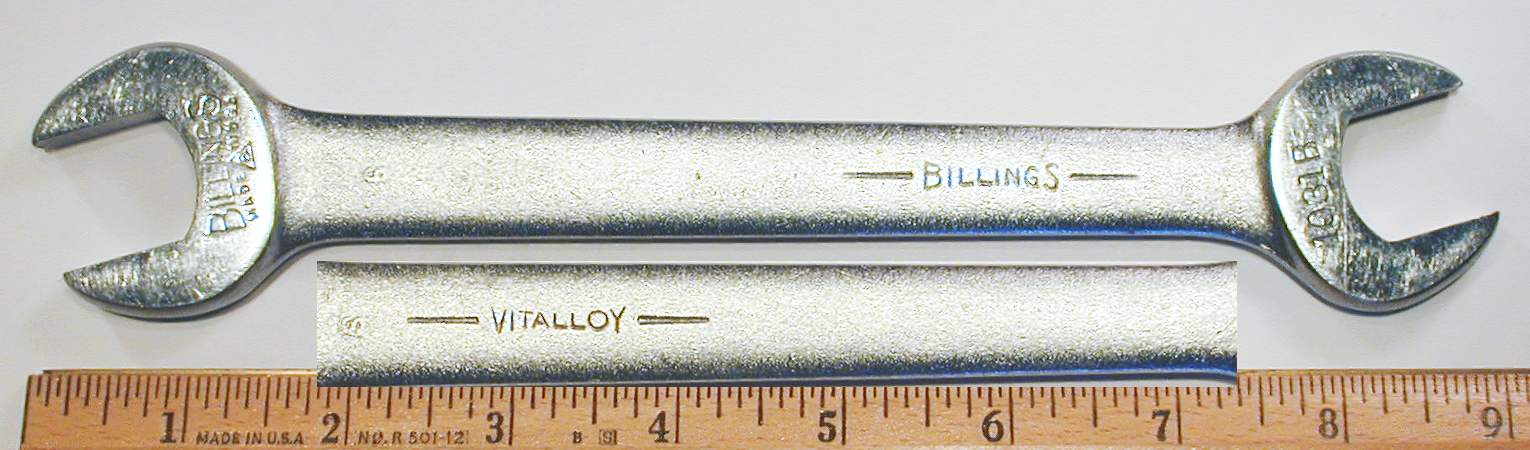

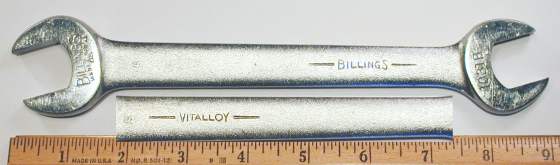

Fig. 314. Billings Vitalloy 1031B 25/32x13/16 Open-End Wrench, with Inset for Back Side Detail, ca. 1948-1962.

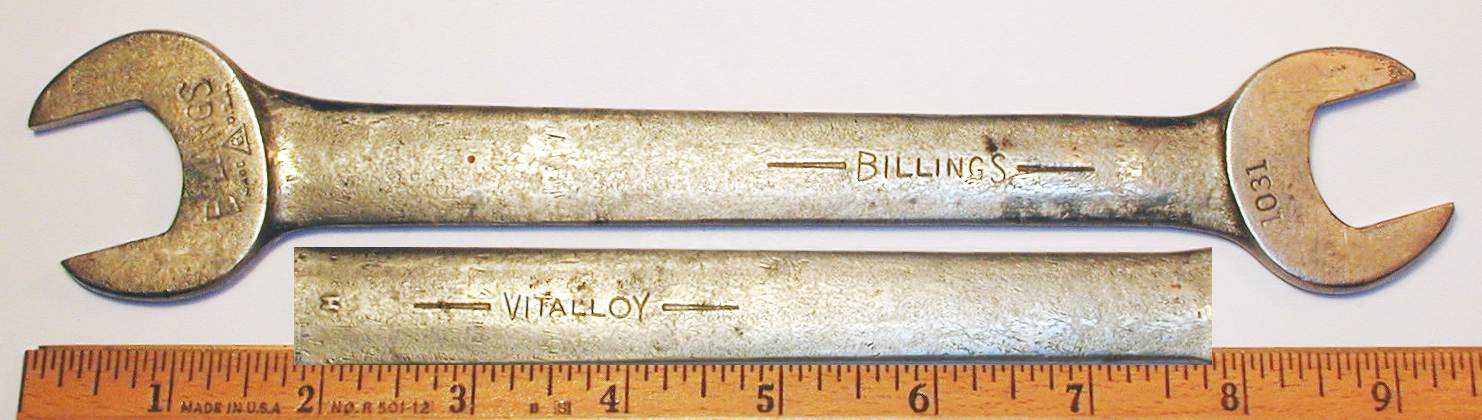

Fig. 314 shows a Billings 1031B 25/32x13/16 open-end wrench, stamped "Made in U.S.A." with the B-Triangle logo on the face, and with "Billings" and "Vitalloy" stamped on the shank.

The overall length is 9.0 inches, and the finish is chrome plating with polished faces.


1031 Vitalloy 25/32x7/8 Open-End Wrench, Later Style

[Billings Vitalloy 1031 25/32x7/8 Open-End Wrench]
Fig. 315. Billings Vitalloy 1031 25/32x7/8 Open-End Wrench, with Inset for Back Side Detail, ca. 1948-1962.

Fig. 315 shows a Billings 1031 25/32x7/8 open-end wrench, marked "Made in U.S.A." with the B-Triangle logo on the face, and with "Billings" and "Vitalloy" stamped on the shank.

The overall length is 9.4 inches. The finish is chrome plating, with some loss due to wear and rust.


1033A Vitalloy 7/8x15/16 Open-End Wrench, Later Style

[Billings Vitalloy 1033A 7/8x15/16 Open-End Wrench]

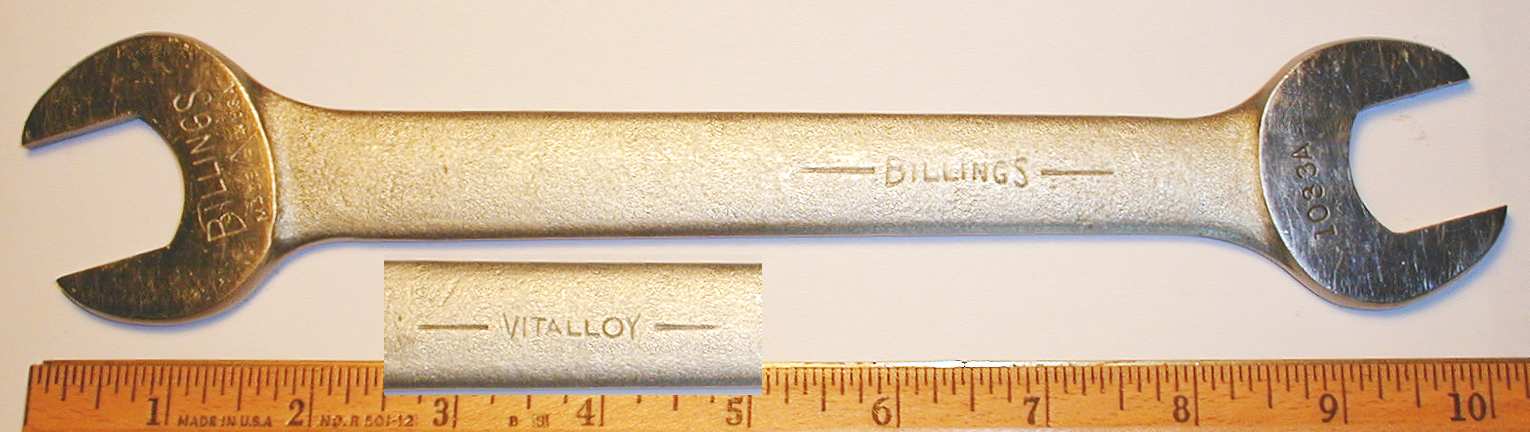

Fig. 316. Billings Vitalloy 1033A 7/8x15/16 Open-End Wrench, with Inset for Back Side Detail, ca. 1948-1962.

Fig. 316 shows a Billings 1033A 7/8x15/16 open-end wrench, marked "Made in U.S.A." with the B-Triangle logo on the face, and with "Billings" and "Vitalloy" stamped on the shank.

The overall length is 10.2 inches, and the finish is chrome plating with polished faces.


1033C Vitalloy 15/16x1 Open-End Wrench, Later Style

[Billings Vitalloy 1033C 15/16x1 Open-End Wrench]
Fig. 317. Billings Vitalloy 1033C 15/16x1 Open-End Wrench, with Inset for Back Side Detail, ca. 1948-1962.

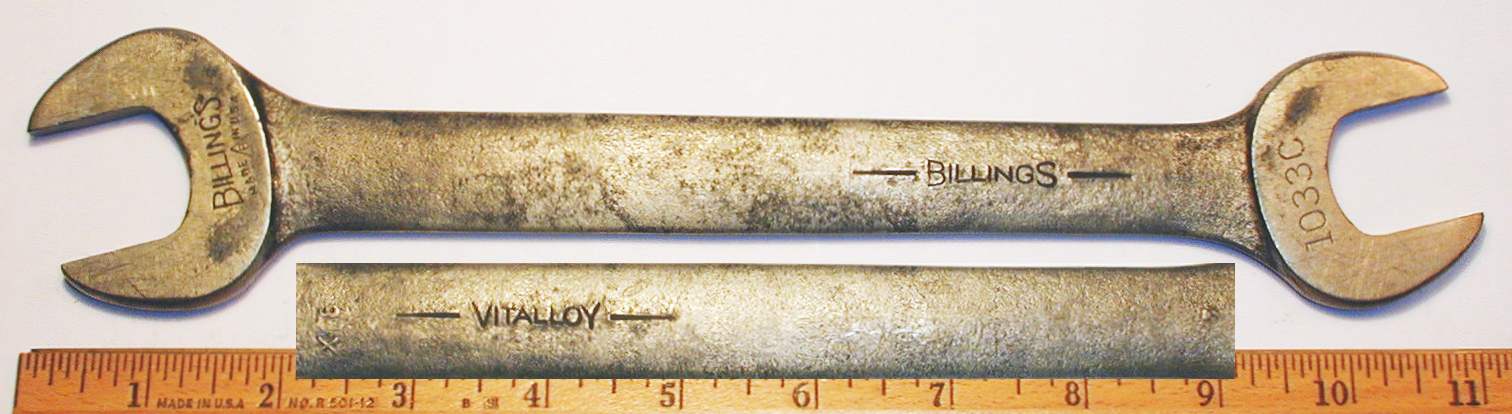

Fig. 317 shows a Billings 1033C 15/16x1 open-end wrench, marked "Made in U.S.A." with the B-Triangle logo on the face, and with "Billings" and "Vitalloy" stamped on the shank.

The overall length is 11.0 inches. The finish is chrome plating, now darkened by rust.


Later Vitalloy Box-End Wrenches

7025 Vitalloy 1/2x19/32 Box-End Wrench, Later Style

The next several figures show examples of the 7000 series box wrenches in the later style. For these models the style changes affected only the markings, with the wrench design showing little or no change.

[Billings Vitalloy 7025 1/2x19/32 Box-End Wrench]

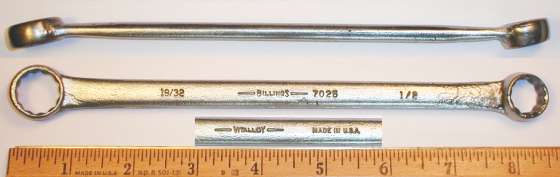

Fig. 318. Billings Vitalloy 7025 1/2x19/32 Box-End Wrench, with Insets for Side View and Back Side Detail, ca. 1948-1962.

Fig. 318 shows a later example of the Billings 7025 1/2x19/32 box wrench, marked with the company name, model, and fractional sizes on the front, with "Vitalloy" and "Made in U.S.A." on the back side. Note that the familiar B-Triangle logo is not marked on this example, having been discontinued at some point prior to manufacture.

The overall length is 8.4 inches, and the finish is chrome plating with polished ends.

7727 Vitalloy 9/16x5/8 Box-End Wrench, Later Style

[Billings Vitalloy 7727 9/16x5/8 Box-End Wrench]
Fig. 319. Billings Vitalloy 7727 9/16x5/8 Box-End Wrench, with Insets for Side View and Back Side Detail, ca. 1948-1962.

Fig. 319 shows a Billings 7727 9/16x5/8 box wrench in the later style, marked with the company name, model, and fractional sizes on the front, with "Vitalloy" and "Made in U.S.A." on the back side.

The overall length is 9.5 inches, and the finish is chrome plating with polished ends.

The changes in the style and markings can be seen by comparison to the earlier Billings 7727 Wrench.


7027 Vitalloy 19/32x11/16 Box-End Wrench, Later Style

[Billings Vitalloy 7027 19/32x11/16 Box-End Wrench]

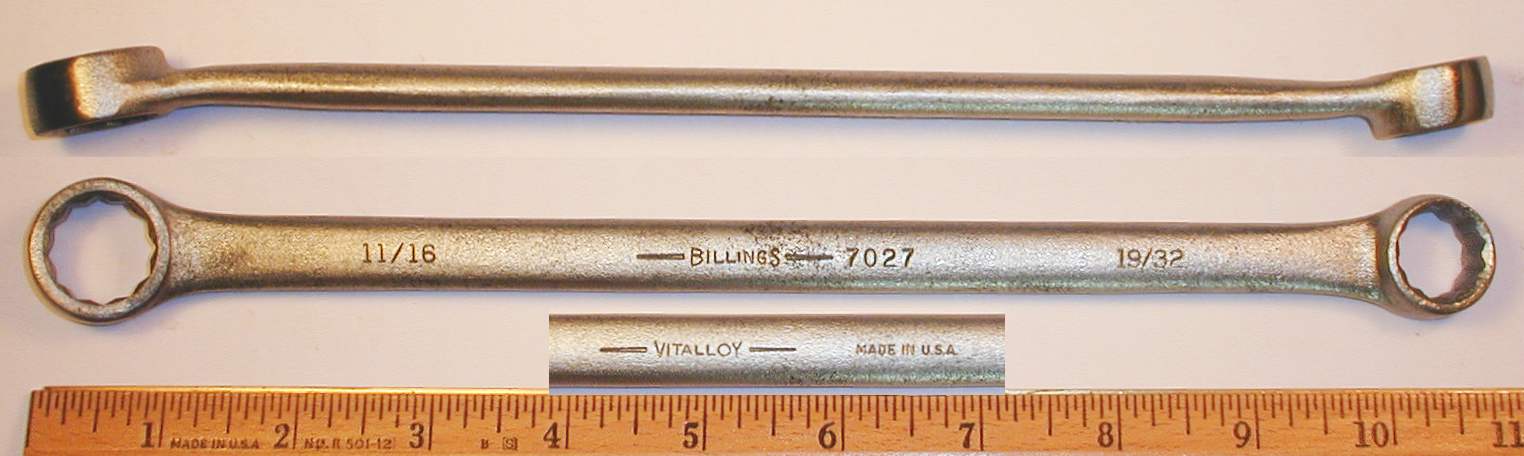

Fig. 320. Billings Vitalloy 7027 19/32x11/16 Box-End Wrench, with Insets for Side View and Back Side Detail, ca. 1948-1962.

Fig. 320 shows a Billings 7027 19/32x11/16 box wrench, stamped with the company name, model, and fractional sizes on the front, with "Vitalloy" and "Made in U.S.A." on the back side.

The overall length is 10.7 inches, and the finish is chrome plating with polished ends.


7029 Vitalloy 11/16x25/32 Box-End Wrench, Later Style

[Billings Vitalloy 7029 11/16x25/32 Box-End Wrench]
Fig. 321. Billings Vitalloy 7029 11/16x25/32 Box-End Wrench, with Insets for Side View and Back Side Detail, ca. 1948-1962.

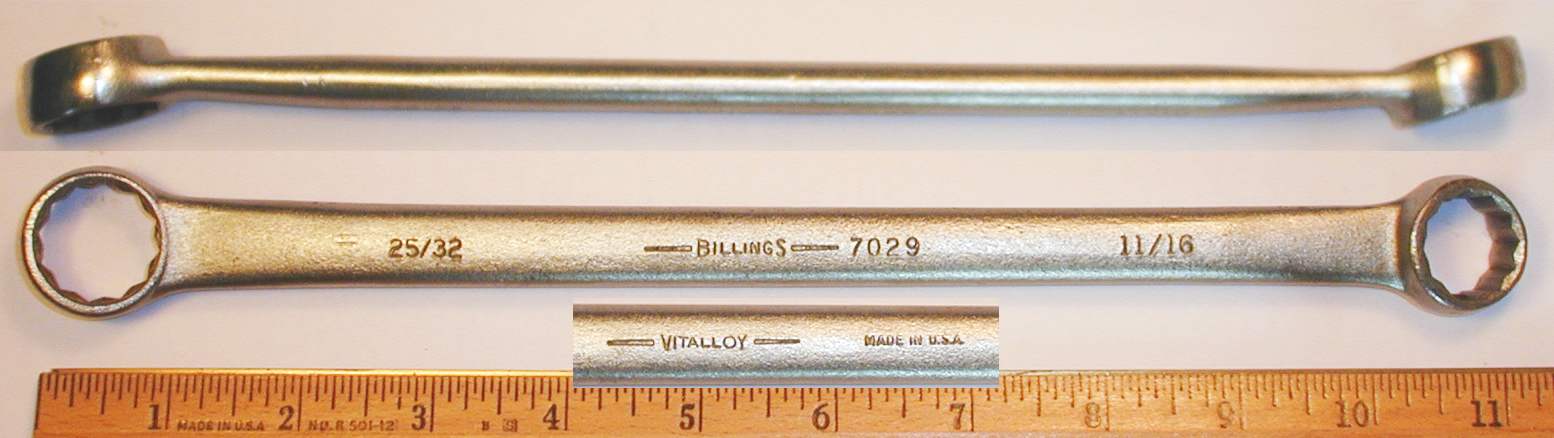

Fig. 321 shows a Billings 7029 11/16x25/32 box wrench, stamped with the company name, model, and fractional sizes on the front, with "Vitalloy" and "Made in U.S.A." on the back side.

The overall length is 11.2 inches, and the finish is chrome plating with polished ends.


7031B Vitalloy 25/32x13/16 Box-End Wrench, Later Style

[Billings Vitalloy 7031B 25/32x13/16 Box-End Wrench]

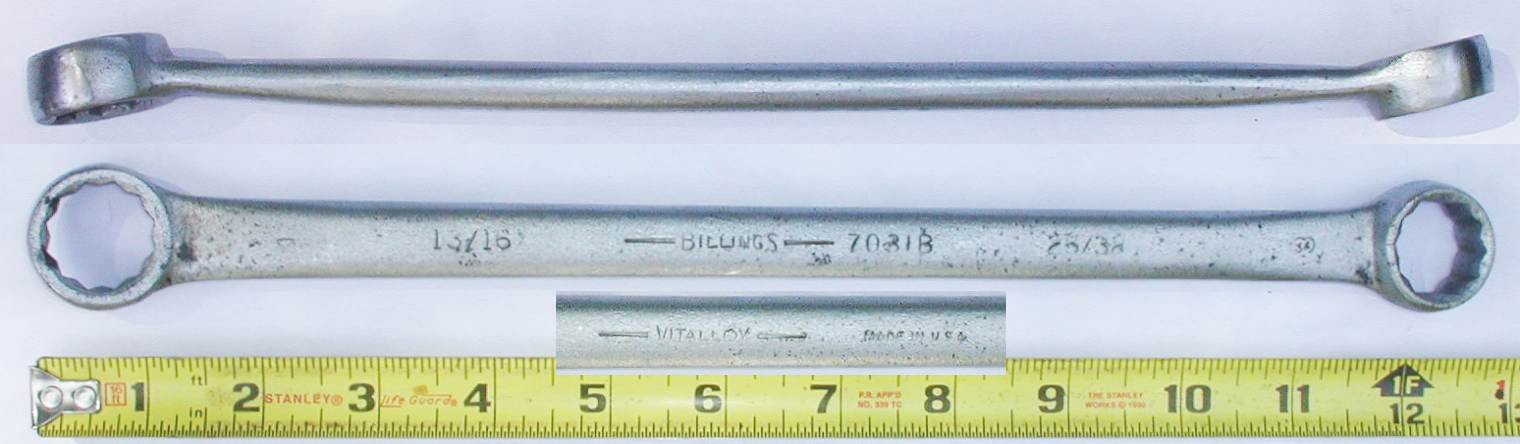

Fig. 322. Billings Vitalloy 7031B 25/32x13/16 Box-End Wrench, with Insets for Side View and Back Side Detail, ca. 1948-1962.

Fig. 322 shows a Billings 7031B 25/32x13/16 box wrench, stamped with the company name, model, and fractional sizes on the front, with "Vitalloy" and "Made in U.S.A." on the back side.

The overall length is 12.8 inches, and the finish is chrome plating with polished ends.


7031 Vitalloy 25/32x7/8 Box-End Wrench, Later Style

[Billings Vitalloy 7031 25/32x7/8 Box-End Wrench]

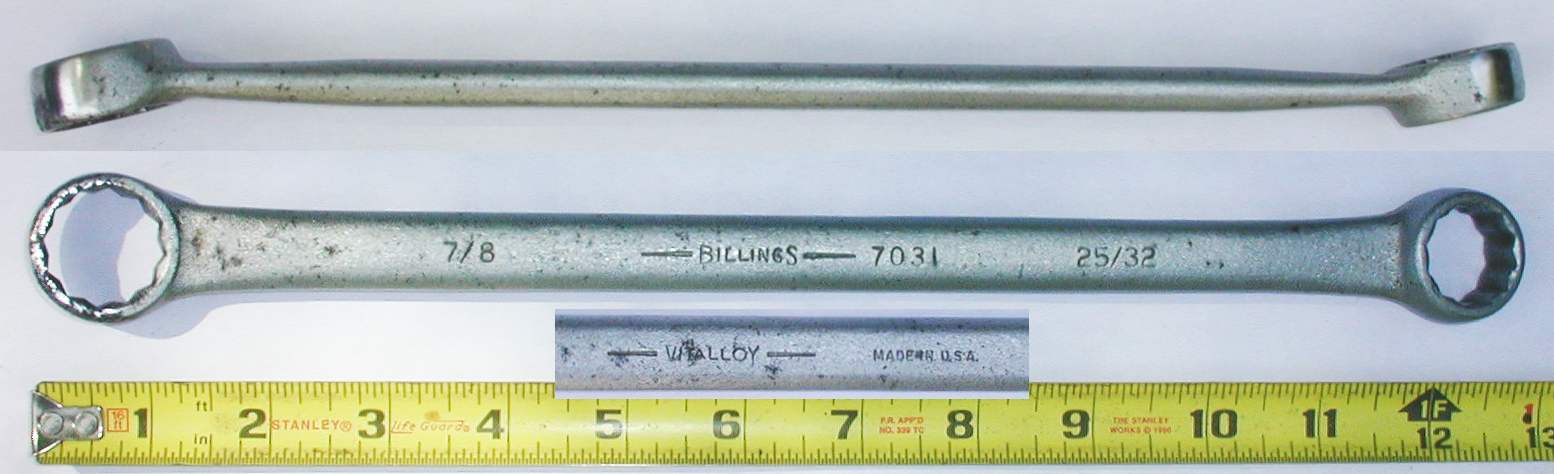

Fig. 323. Billings Vitalloy 7031 25/32x7/8 Box-End Wrench, with Insets for Side View and Back Side Detail, ca. 1948-1962.

Fig. 323 shows a Billings 7031 25/32x7/8 box wrench, stamped with the company name, model, and fractional sizes on the front, with "Vitalloy" and "Made in U.S.A." on the back side.

The overall length is 12.8 inches, and the finish is chrome plating with polished ends.


7033A Vitalloy 7/8x15/16 Box-End Wrench, Later Style

[Billings Vitalloy 7033A 7/8x15/16 Box-End Wrench]
Fig. 324. Billings Vitalloy 7033A 7/8x15/16 Box-End Wrench, with Insets for Side View and Back Side Detail, ca. 1948-1962.

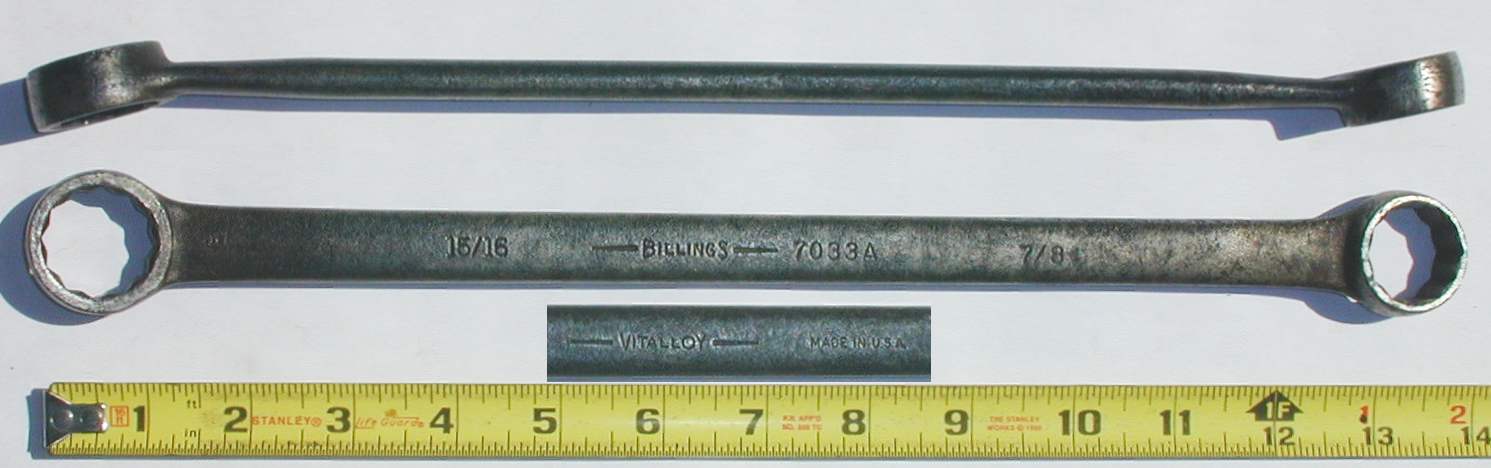

Fig. 324 shows a Billings 7033A 7/8x15/16 box wrench, stamped with the company name, model, and fractional sizes on the front, with "Vitalloy" and "Made in U.S.A." on the back side.

The overall length is 14.0 inches. The original finish was chrome plating, but most has been lost due to rust.


7033C Vitalloy Box-End Wrench, Later Style

[Billings Vitalloy 7033C 15/16x1 Box-End Wrench]
Fig. 325. Billings Vitalloy 7033C 15/16x1 Box-End Wrench, with Inset for Back Side Detail, ca. 1948-1962.

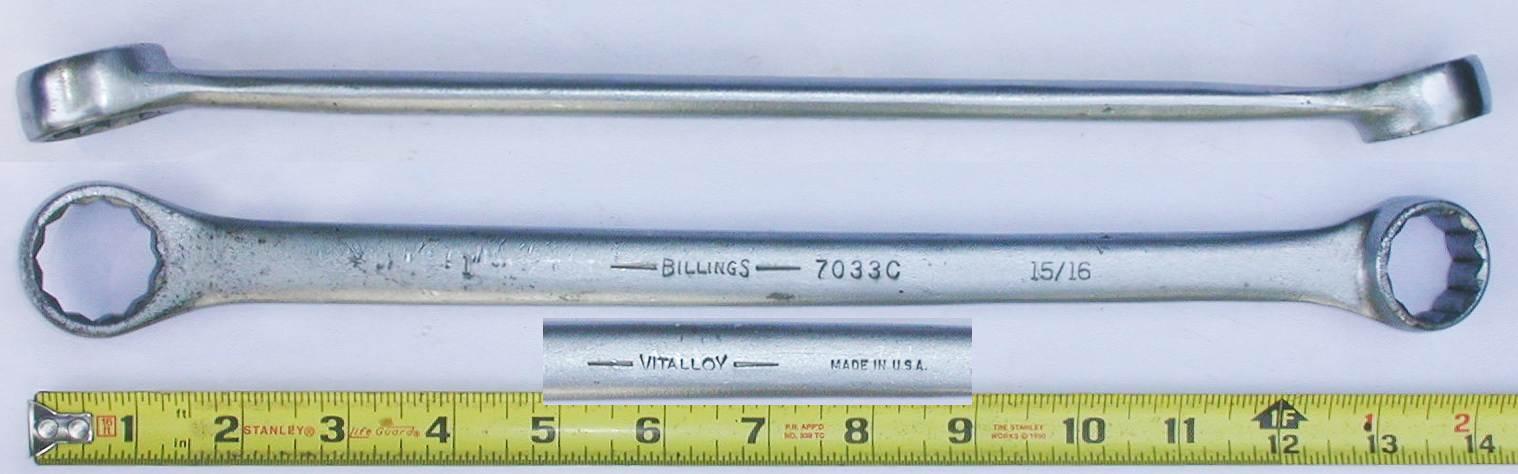

Fig. 325 shows a Billings 7033C 15/16x1 box wrench with an oval shank, stamped "Billings Vitalloy" with the B-Triangle logo and a "Made in U.S.A" marking.

The overall length is 14.1 inches, and the finish is chrome plating with polished ends.

This wrench is very similar to the earlier Billings 7033C example of this model.


8727 Vitalloy Offset Box-End Wrench, Later Style

The next figures show the updated design of the later 8000 series offset box wrenches.

[Billings Vitalloy 8727 9/16x5/8 Offset Box-End Wrench]
Fig. 326. Billings Vitalloy 8727 9/16x5/8 Offset Box-End Wrench, with Insets for Side View and Back Side Detail, ca. 1948-1962.

Fig. 326 shows a Billings 8727 9/16x5/8 offset box wrench, stamped with the company name, model, and fractional sizes on the front, with "Vitalloy" and "Made in U.S.A." stamped on the back side.

The overall length is 9.2 inches, and the finish is chrome plating with some loss due to rust.

This wrench can be compared to the previous generation paneled style shown as the Billings 8727 Paneled Offset Box Wrench. The earlier model was significantly longer, 10.1 inches compared with the present 9.2 inches, and had a generally heavier construction.


8731-B Vitalloy Offset Box-End Wrench, Later Style

[Billings Vitalloy 8731-B 13/16x7/8 Offset Box-End Wrench]

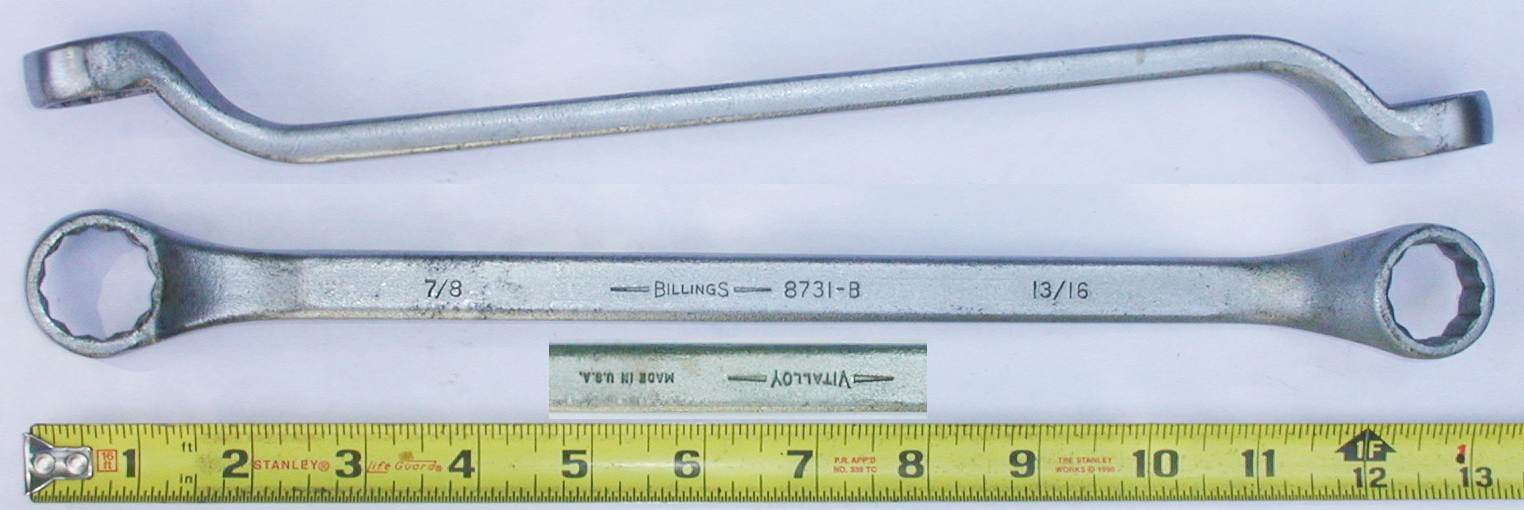

Fig. 327. Billings Vitalloy 8731-B 13/16x7/8 Offset Box-End Wrench, with Insets for Side View and Back Side Detail, ca. 1948-1962.

Fig. 327 shows a Billings 8731-B 13/16x7/8 offset box wrench, stamped with the company name, model, and fractional sizes on the front, with "Vitalloy" and "Made in U.S.A." stamped on the back side.

The overall length is 13.0 inches, and the finish is chrome plating with polished ends.


8034 Vitalloy Offset Box-End Wrench, Later Style

[Billings Vitalloy 8034 7/8x1-1/16 Offset Box-End Wrench]

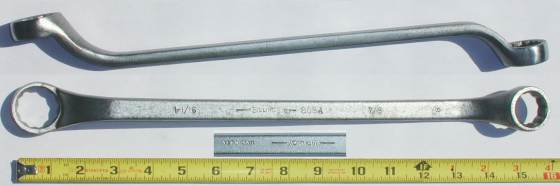

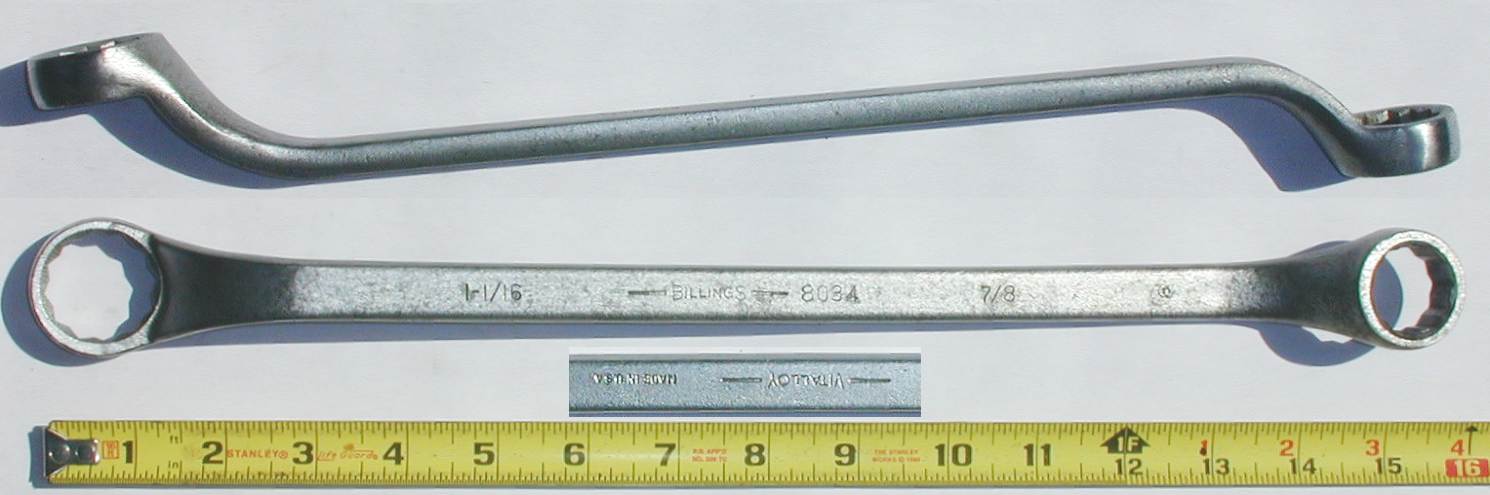

Fig. 328. Billings Vitalloy 8034 7/8x1-1/16 Offset Box-End Wrench, with Insets for Side View and Back Side Detail, ca. 1948-1962.

Fig. 328 shows a Billings 8034 7/8x1-1/16 offset box wrench, stamped with the company name, model, and fractional sizes on the front, with "Vitalloy" and "Made in U.S.A." stamped on the back side.

The overall length is 15.9 inches, and the finish is chrome plating with polished ends.


Later Vitalloy Combination Wrenches

Billings changed the markings on its combination wrenches in 1948, dropping the B-Triangle logo from the shank, and placing the "Billings" and "Vitalloy" trademarks on opposite sides of the shank. The changes in the markings are readily apparent by comparison with examples of the previous style.


1164 Vitalloy 5/8 Combination Wrench, Later Style

[Billings Vitalloy 1164 5/8 Combination Wrench]

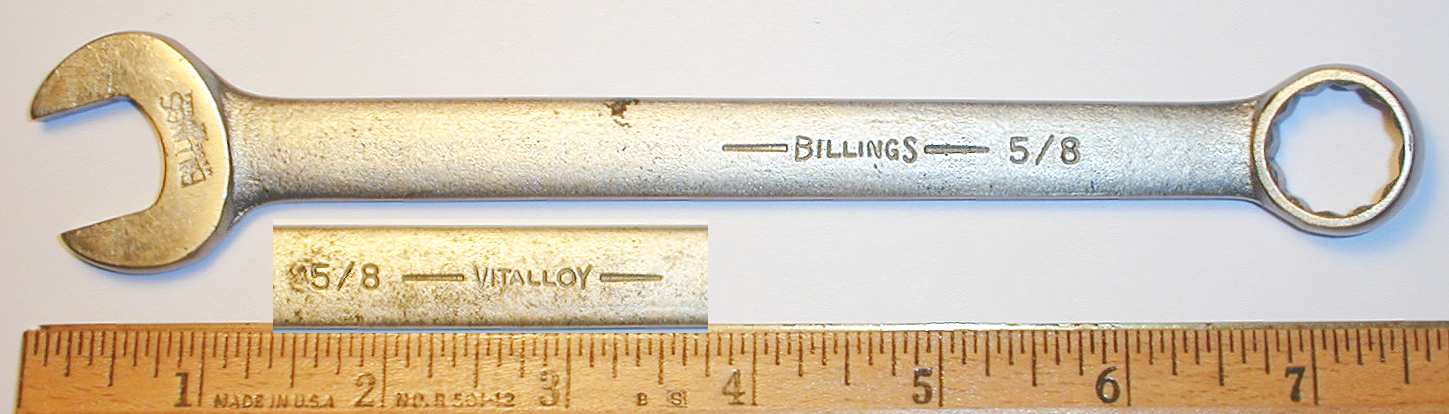

Fig. 329. Billings Vitalloy 1164 5/8 Combination Wrench, ca. 1948-1962.

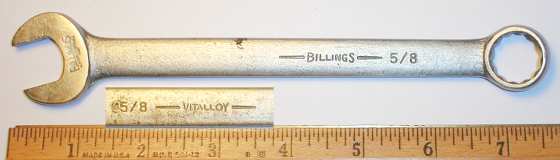

Fig. 329 shows a Billings 1164 5/8 combination wrench in the later style, stamped "Made in U.S.A." with the B-Triangle logo on the face, and with "Billings" and "Vitalloy" stamped on opposite sides of the shank.

The overall length is 7.5 inches, and the finish is chrome plating with polished faces.

An earlier version of this model can be seen as the Billings 1164 Combination Wrench.


1166 Vitalloy Combination Wrench, Later Style

[Billings Vitalloy 1166 3/4 Combination Wrench]

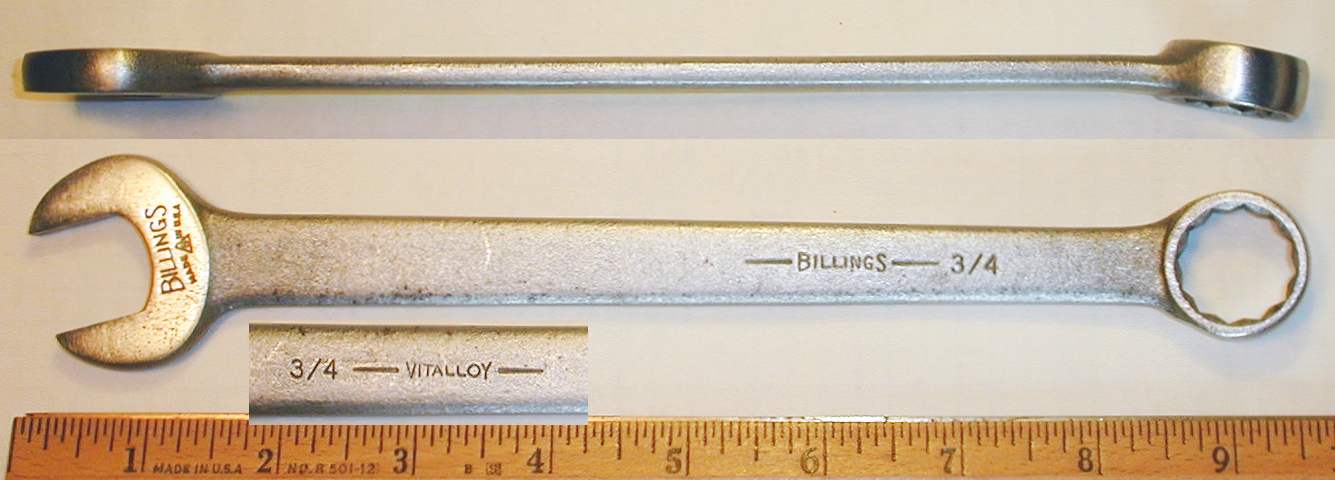

Fig. 330. Billings Vitalloy 1166 3/4 Combination Wrench, with Insets for Side View and Back Side Detail, ca. 1948-1962.

Fig. 330 shows a Billings 1166 3/4 combination wrench in the later style, stamped "Made in U.S.A." with the B-Triangle logo on the face. The shank is stamped with the "Billings" and "Vitalloy" trademarks, but on opposite sides of the shank.

The overall length is 9.4 inches, and the finish is chrome plating with polished faces.

An earlier version of this model can be seen as the Billings 1166 Combination Wrench.


1167 Vitalloy Combination Wrench, Later Style

[Billings Vitalloy 1167 7/8 Combination Wrench]

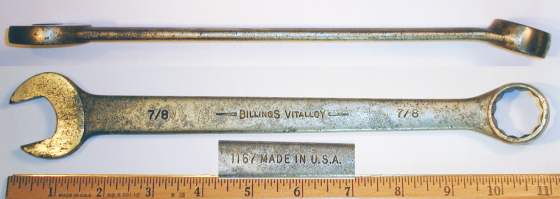

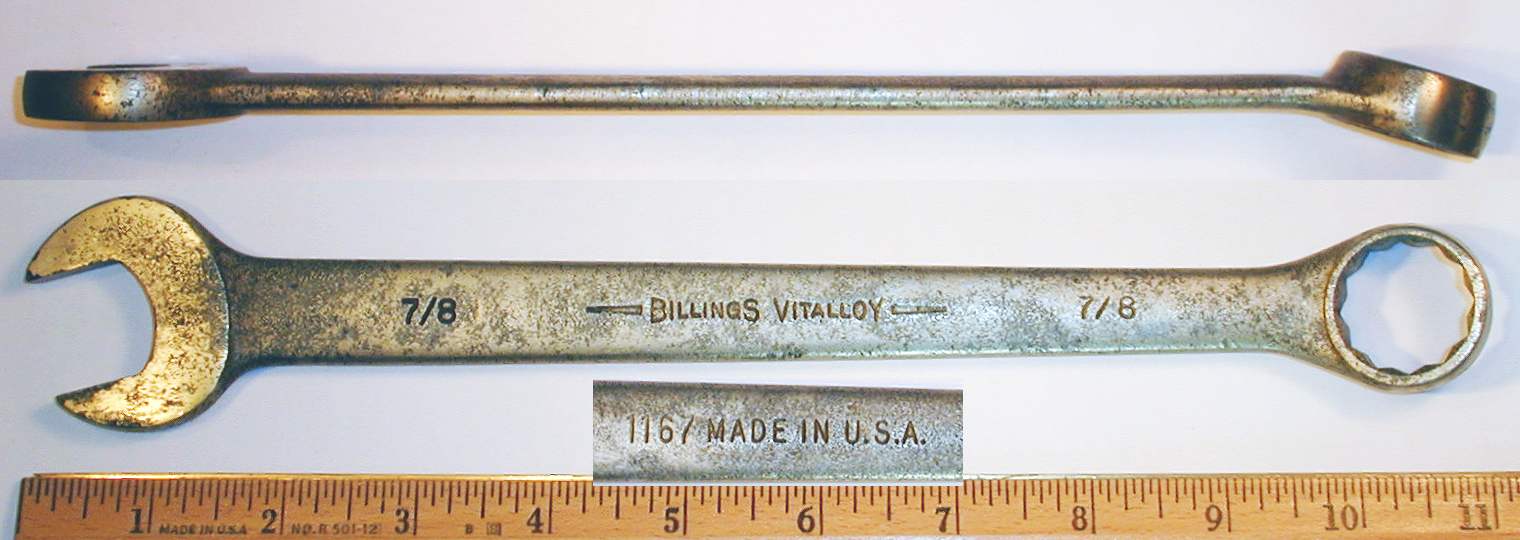

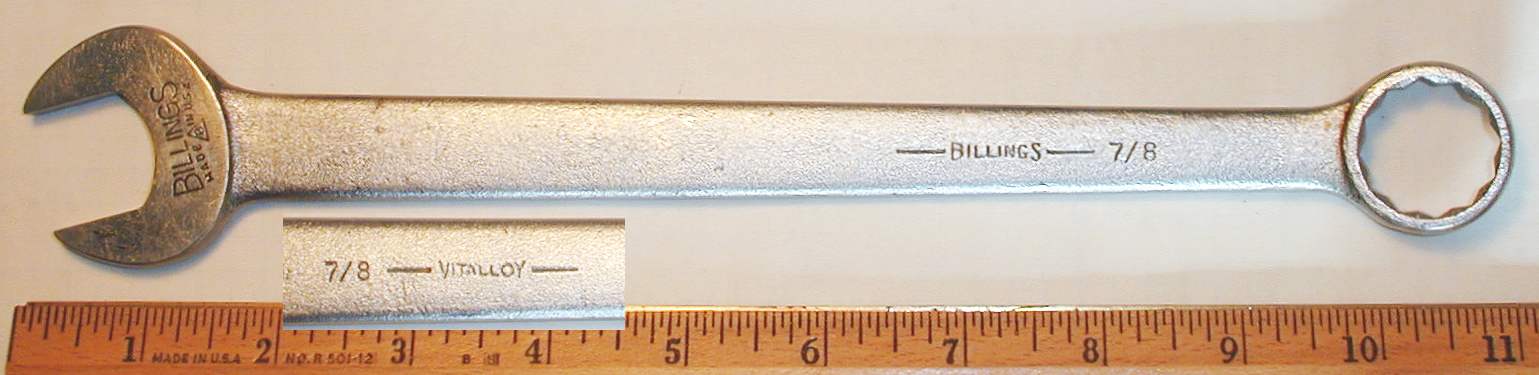

Fig. 331. Billings Vitalloy 1167 7/8 Combination Wrench, with Inset for Side View, ca. 1948-1962.

Fig. 331 shows a later Billings 1167 7/8 combination wrench. The face is stamped "Made in U.S.A." with the B-Triangle logo, and the shank is stamped "Billings" and "Vitalloy" on opposite sides.

The overall length is 10.9 inches, and the finish is chrome plating with polished faces.

An earlier version of this model can be seen as the Billings 1167 Combination Wrench.


Later Life-Time Wrenches

Billings first registered the "Life-Time" trademark in 1926 and used it briefly to identify their new alloy steel wrenches. Within a few years the Life-Time mark had been discontinued in favor of direct alloy markings and later the "Vitalloy" trademark, but Billings later decided to resurrect the Life-Time trademark for a second line of tools, targeted primarily for hardware stores.

This second appearance of the Life-Time brand occurred in the late 1940s or early 1950s. These later Life-Time tools were basically identical in design to the standard Vitalloy line of 1948 and later, but generally were less finely finished, in order to make them available at lower prices.

The Life-Time brand included open-end wrenches, box wrenches, combination wrenches, and socket tools in the smaller drive sizes. The markings on the tools typically included "Billings Life-Time" on one side, with the model number and "Made in U.S.A." on the back side. The model numbers followed the standard Vitalloy line, but with an "L" prefix.

The figures below will show some examples of the Life-Time line.


Life-Time Open-End Wrenches


L1033-C Life-Time Open-End Wrench

[Billings Life-Time L1033-C 15/16x1 Open-End Wrench]

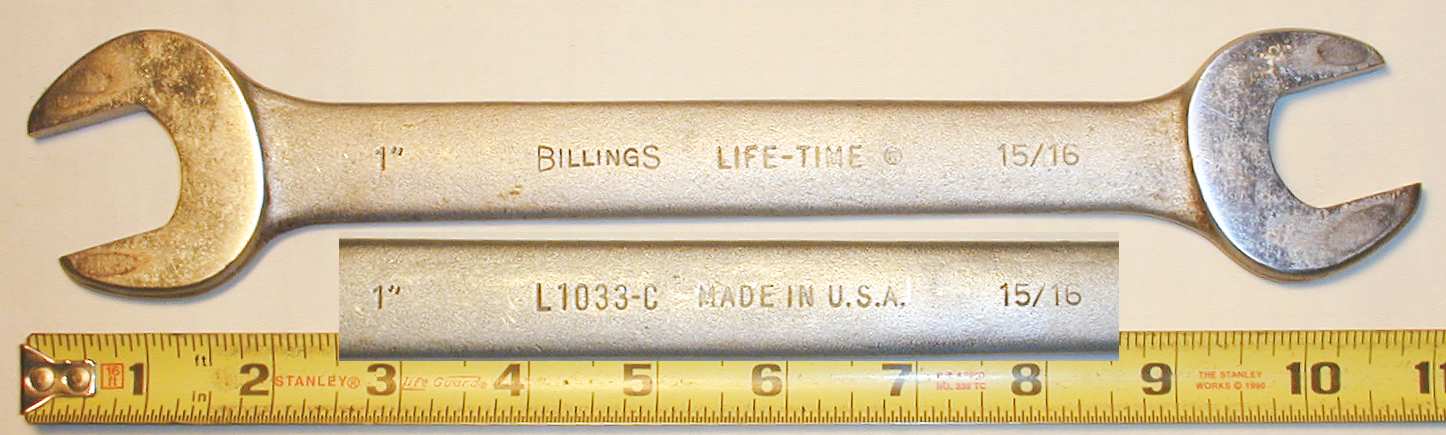

Fig. 332. Billings Life-Time L1033-C 15/16x1 Open-End Wrench, with Inset for Back Side Detail, ca. Late 1940s to Early 1960s.

Fig. 332 shows a Billings L1033-C 15/16x1 open-end wrench, stamped "Billings Life-Time" on the shank with "Made in U.S.A." on the back side.

The overall length is 11.0 inches, and the finish is chrome plating with polished faces.


Life-Time Box-End Wrenches


L8725-B Life-Time Offset Box-End Wrench

The next two figures show examples of offset box wrenches in the Life-Time series.

[Billings Life-Time L8725-B 1/2x9/18 Offset Box-End Wrench]

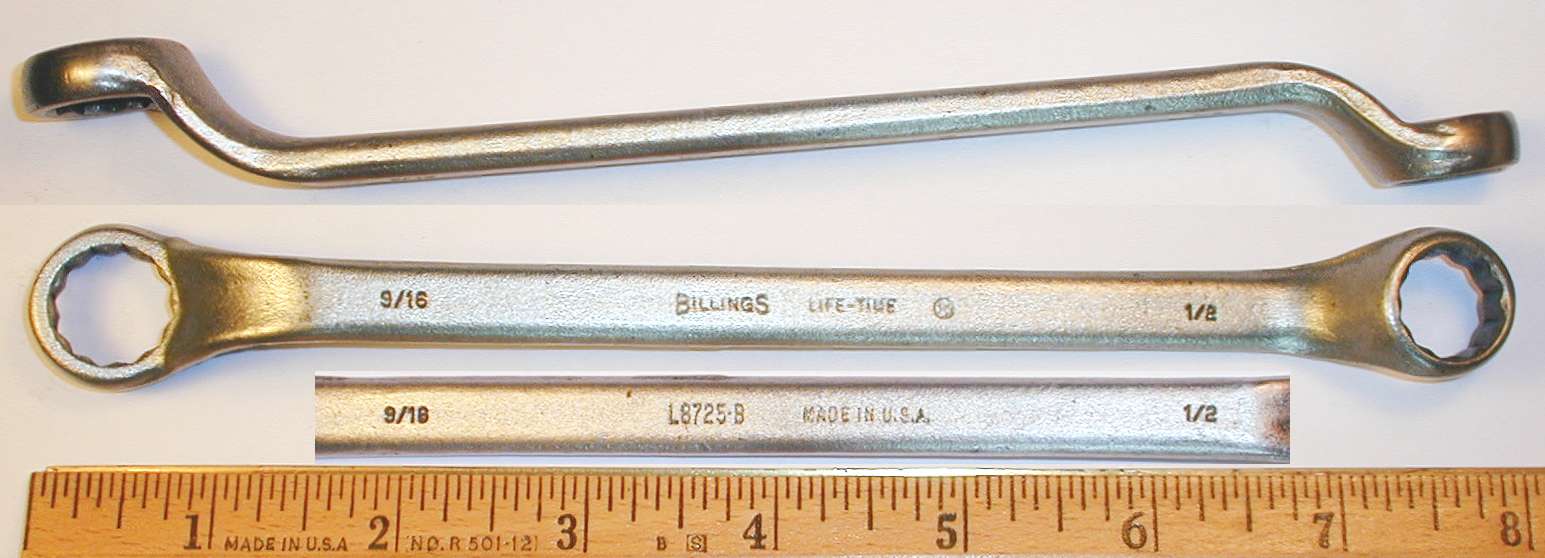

Fig. 333. Billings Life-Time L8725-B 1/2x9/16 Offset Box-End Wrench, with Insets for Side View and Back Side Detail, ca. Late 1940s to Early 1960s.

Fig. 333 shows a Billings L8725B 1/2x9/16 offset box wrench, stamped with "Billings Life-Time" on the front with the model number and "Made in U.S.A." on the back side.

The overall length is 7.9 inches, and the finish is chrome plating with polished faces.


L8729 Life-Time Offset Box-End Wrench

[Billings Life-Time L8729 5/8x3/4 Offset Box-End Wrench]
Fig. 334. Billings Life-Time L8729 5/8x3/4 Offset Box-End Wrench, with Insets for Side View and Back Side Detail, ca. Late 1940s to Early 1960s.

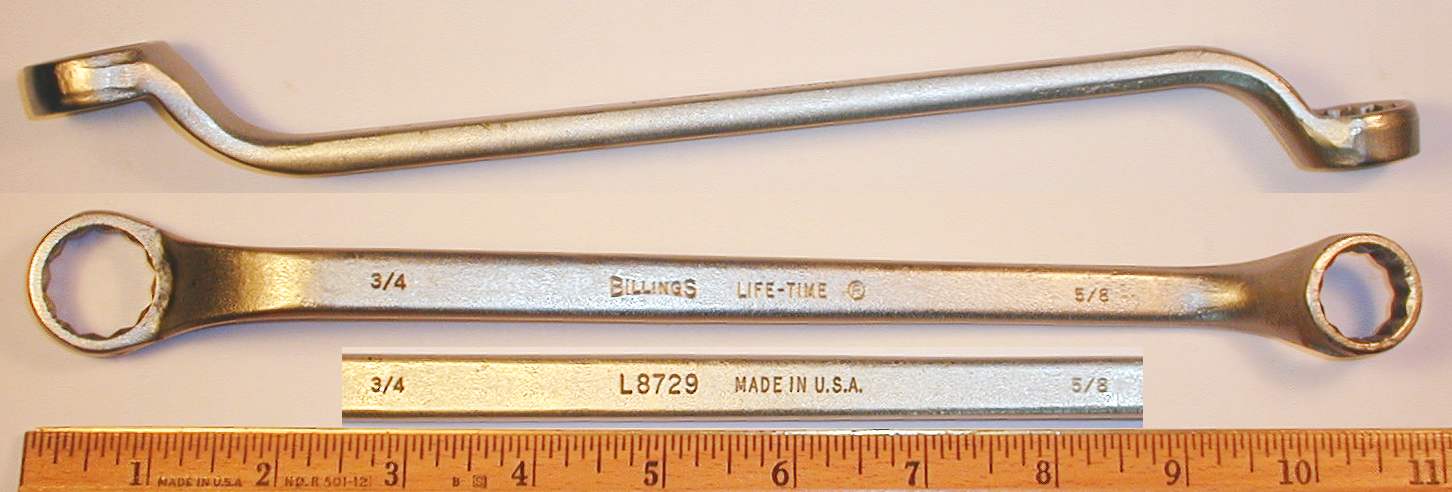

Fig. 334 shows a Billings L8729 5/8x3/4 offset box wrench, stamped with "Billings Life-Time" on the front with the model number and "Made in U.S.A." on the back side.

The overall length is 10.7 inches, and the finish is chrome plating with polished faces.


Life-Time Combination Wrenches


L1164 Life-Time 5/8 Combination Wrench

[Billings Life-Time L1164 5/8 Combination Wrench]

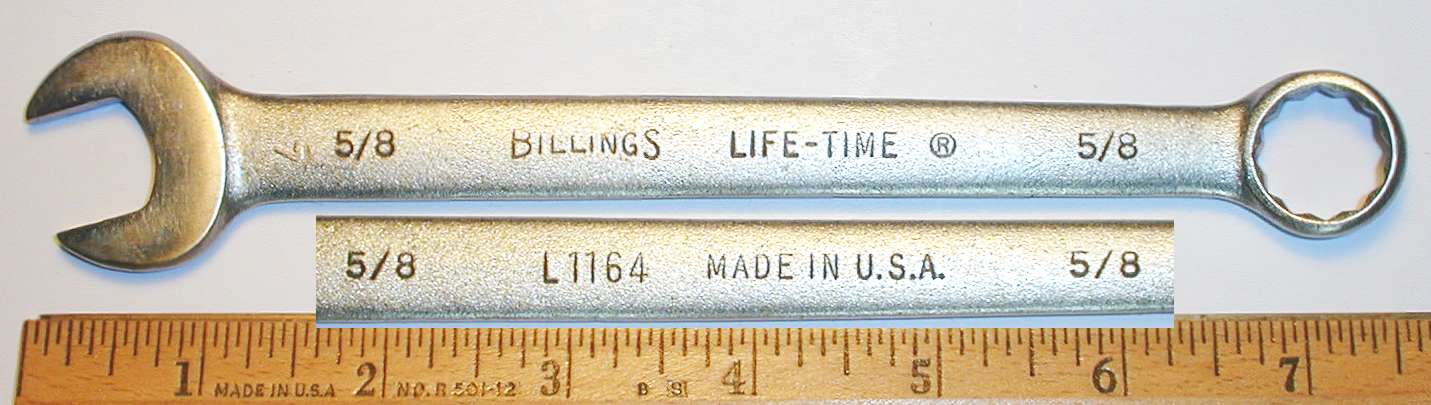

Fig. 335. Billings Life-Time L1164 5/8 Combination Wrench, with Inset for Back Side Detail, ca. Late 1940s to Early 1960s.

Fig. 335 shows a Billings L1164 5/8 combination wrench, marked "Life-Time" on the shank with the model number and "Made in U.S.A." on the back side.

The overall length is 7.6 inches, and the finish is chrome plating with polished faces.


L1166 Life-Time 3/4 Combination Wrench

[Billings Life-Time L1166 3/4 Combination Wrench]

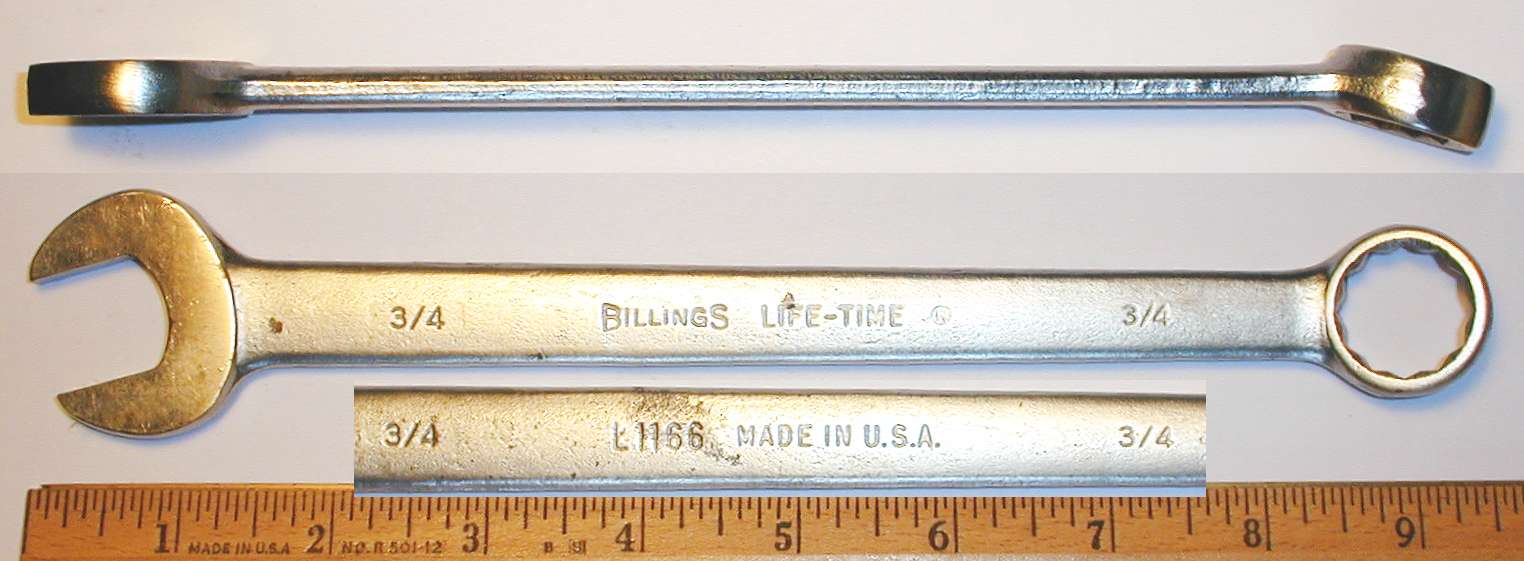

Fig. 336. Billings Life-Time L1166 3/4 Combination Wrench, with Insets for Side View and Back Side Detail, ca. Late 1940s to Early 1960s.

Fig. 336 shows a Billings L1166 3/4 combination wrench, marked "Life-Time" on the shank with the model number and "Made in U.S.A." on the back side.

The overall length is 9.4 inches, and the finish is chrome plating with polished faces.

The top inset shows a side view of the wrench. Note that the edges from the trimming operation are still visible after finishing, instead of having been ground smooth as is typically seen in the Vitalloy line.


L1167 Life-Time 7/8 Combination Wrench

[Billings Life-Time L1167 7/8 Combination Wrench]
Fig. 337. Billings Life-Time L1167 7/8 Combination Wrench, with Insets for Side View and Back Side Detail, ca. Late 1940s to Early 1960s.

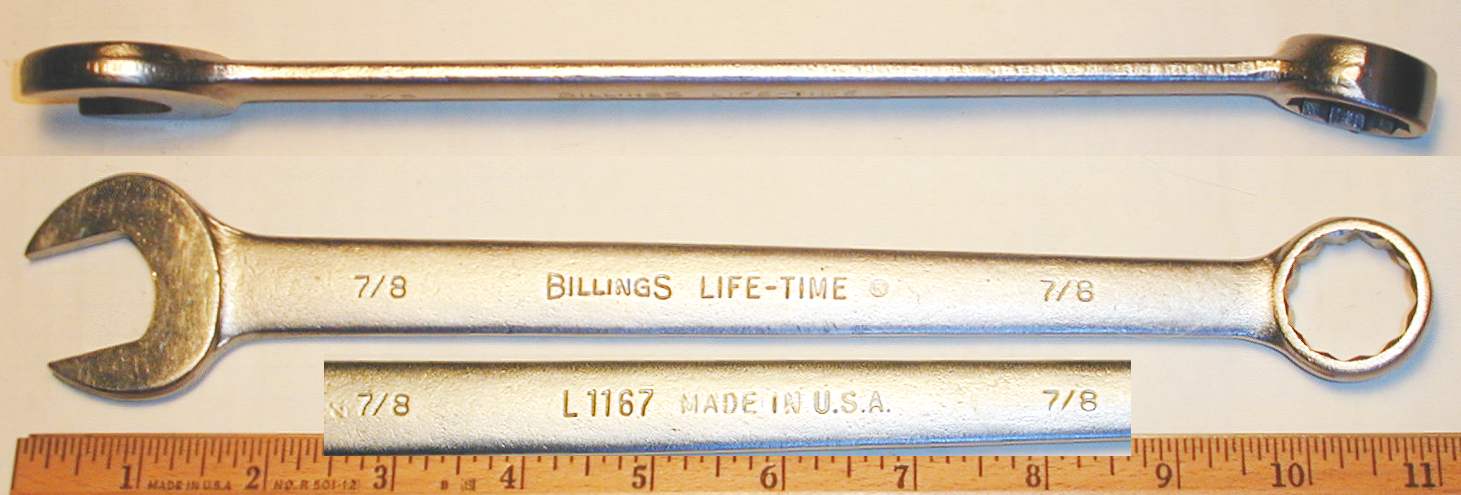

Fig. 337 shows a Billings L1167 7/8 combination wrench, marked "Life-Time" on the shank with "Made in U.S.A." on the back side.

The overall length is 11.0 inches, and the finish is chrome plating with polished faces.


L1171 Life-Time 1-1/16 Combination Wrench

[Billings Life-Time L1171 1-1/16 Inch Combination Wrench]

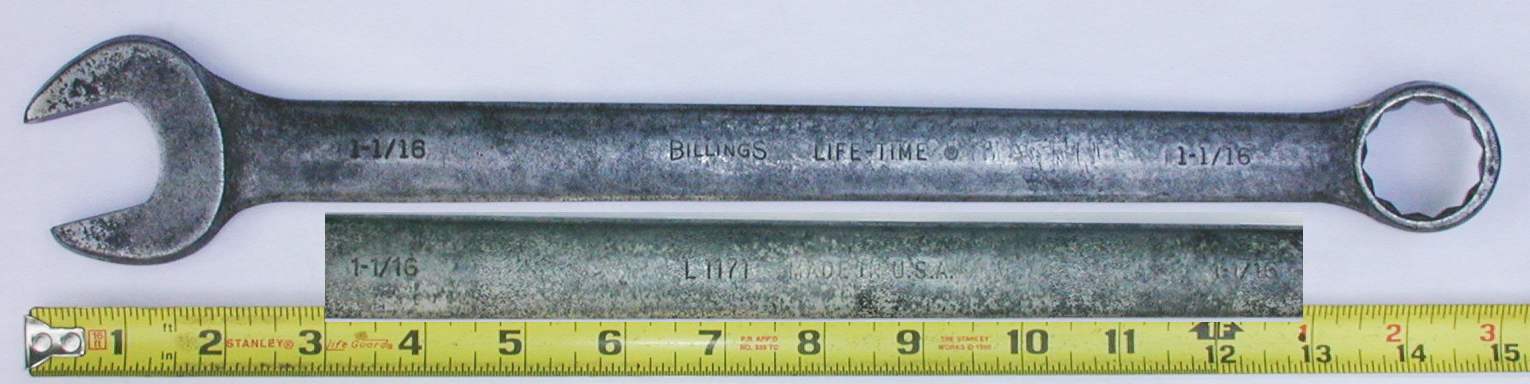

Fig. 338. Billings Life-Time L1171 1-1/16 Inch Combination Wrench, with Inset for Back Side Detail, ca. Late 1940s to Early 1960s.

Fig. 338 shows a Billings L1171 1-1/16 combination wrench, marked "Life-Time" on the shank with "Made in U.S.A." on the back side.

The overall length is 14.9 inches. The original finish was chrome plating with polished ends, but most has been lost due to rust and wear.

One detail to be noted is that the shank retains some marks from the trimming operation after forging.


Other Tools


Adjustable Wrenches


77-4 4 Inch Adjustable Wrench

[Billings Vitalloy 77-4 4 Inch Adjustable Wrench]

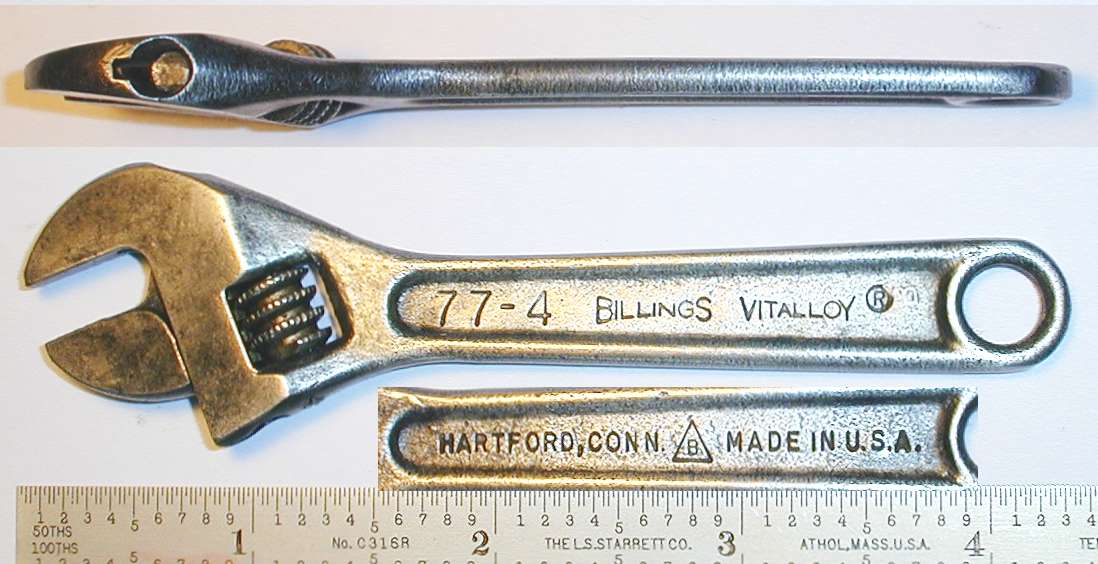

Fig. 339. Billings Vitalloy 77-4 4 Inch Adjustable Wrench, with Insets for Side View and Marking Detail.

Fig. 339 shows a Billings 77-4 4 inch adjustable wrench, stamped "Billings Vitalloy" on the handle. The back side is stamped "Hartford, Conn." and "Made in U.S.A." with the B-Triangle logo in between.

The overall length is 4.3 inches, and the finish is plain steel.


77-10 10 Inch Adjustable Wrench

[Billings Vitalloy 77-10 10 Inch Adjustable Wrench]

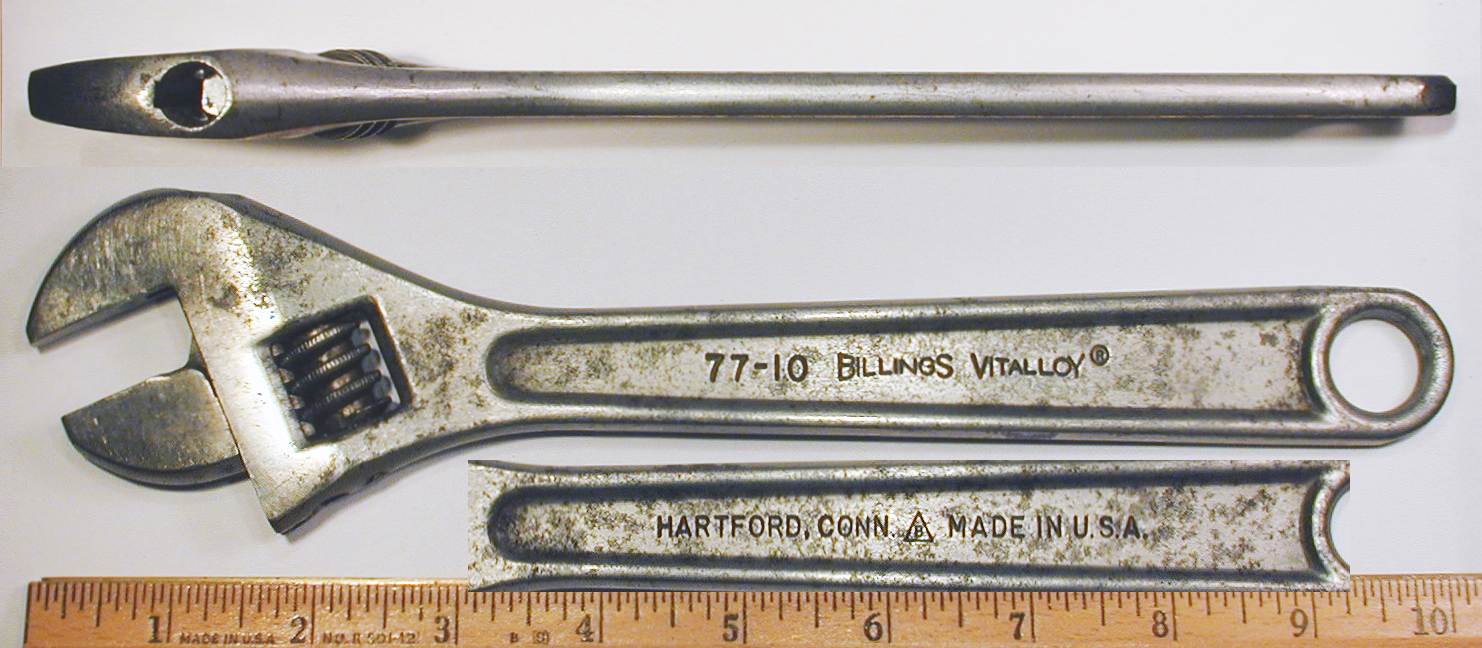

Fig. 340. Billings Vitalloy 77-10 10 Inch Adjustable Wrench, with Insets for Side View and Marking Detail.

Fig. 340 shows a Billings 77-10 10 inch adjustable wrench, stamped with the "Billings Vitalloy" logo and model number on the front. The back side is stamped "Hartford, Conn." and "Made in U.S.A." with the B-Triangle logo in the center.

The overall length is 10.0 inches, and the maximum opening is 1.1 inches. The maximum head thickness was measured at 0.60 inches.

The finish is chrome plating with polished faces.


77-12 12 Inch Adjustable Wrench

[Billings Vitalloy 77-12 12 Inch Adjustable Wrench]

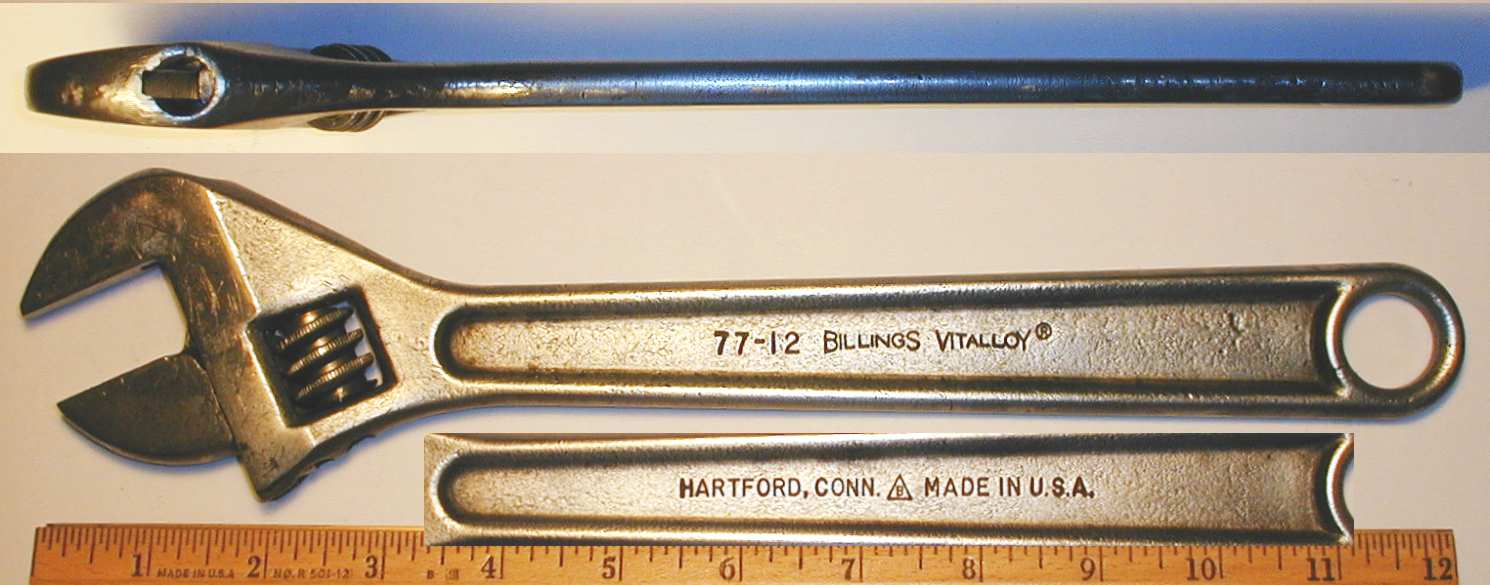

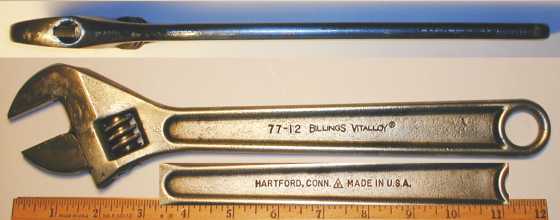

Fig. 341. Billings Vitalloy 77-12 12 Inch Adjustable Wrench, with Insets for Side View and Marking Detail.

Fig. 341 shows a Billings 77-12 12 inch adjustable wrench, stamped with the "Billings Vitalloy" logo and model number on the front. The back side is stamped "Hartford, Conn." and "Made in U.S.A." with the B-Triangle logo in the center.

The overall length is 12.2 inches, and the maximum opening is 1.4 inches. The maximum head thickness was measured at 0.71 inches.

The finish is plain steel.


Post-Crescent Production

Production of Billings tools is believed to have continued for some time after the 1962 acquisition by Crescent Niagara, but currently we're unsure of the extent of this final period. The figures in this section will show examples of tools believed to represent the post-Crescent era.

In 1962 Crescent Niagara filed a trademark application for the "Billings" name in the distinctive form with the narrowed center, but without the B-Triangle logo. (The trademark was issued as #750,104 in 1963.) The exclusion of the B-Triangle logo from the markings provides a simple way to distinguish the later Billings-marked production.

During this period the "Billings" and "Vitalloy" markings were placed on the same side of the wrench, as had been done in an earlier period. However, the B-Triangle logo was no longer marked, which serves to identify this late Post-Crescent production.


Billings Vitalloy 1033C Open-End Wrench, Late Style

[Billings Vitalloy 1033C 15/16x1 Open-End Wrench]
Fig. 342. Billings Vitalloy 1033C 15/16x1 Open-End Wrench, with Inset for Back Side Detail, ca. 1962+.

Fig. 342 shows a Billings 1033C 15/16x1 open-end wrench, stamped "Billings Vitalloy" with the fractional sizes on the front, with the model number and "Made in U.S.A." on the back side. Note that the B-Triangle logo is not marked anywhere on this tool.

The overall length is 10.9 inches, and the finish is chrome plating with polished faces.

This wrench is very similar to the Billings 1033C Wrench shown in an earlier figure.


1090D Vitalloy 1/2x9/16 Tappet Wrench, Late Style

[Billings Vitalloy 1090D 1/2x9/16 Tappet Wrench]
Fig. 343. Billings Vitalloy 1090D 1/2x9/16 Tappet Wrench, with Inset for Back Side Detail, ca. 1962+.

Fig. 343 shows a later Billings 1090D 1/2x9/16 tappet wrench, stamped "Billings Vitalloy" on the front with "Made in U.S.A." on the back side.

The overall length is 8.4 inches, and the finish is chrome plating with polished ends.

(The black spots in the photograph are pits caused by contact with some sort of corrosive agent.)

The "Billings Vitalloy" marking without the older B-Triangle logo is believed to indicate late production, after Billings had been acquired by Crescent Niagara.


Billings Vitalloy 1167 Combination Wrench, Late Style

[Billings Vitalloy 1167 7/8 Combination Wrench]
Fig. 344. Billings Vitalloy 1167 7/8 Combination Wrench, with Insets for Side View and Back Side Detail, ca. 1962+.

Fig. 344 shows a Billings 1167 7/8 combination wrench, stamped "Billings Vitalloy" with the fractional size on the front, with the model number and "Made in U.S.A." on the back side. Note that the B-Triangle logo is not marked anywhere on this tool.

The overall length is 10.9 inches. The finish is chrome plating, but with extensive losses due to rust.

77-12 12 Inch Adjustable Wrench, Late Style

[Billings Vitalloy 77-12 12 Inch Adjustable Wrench]

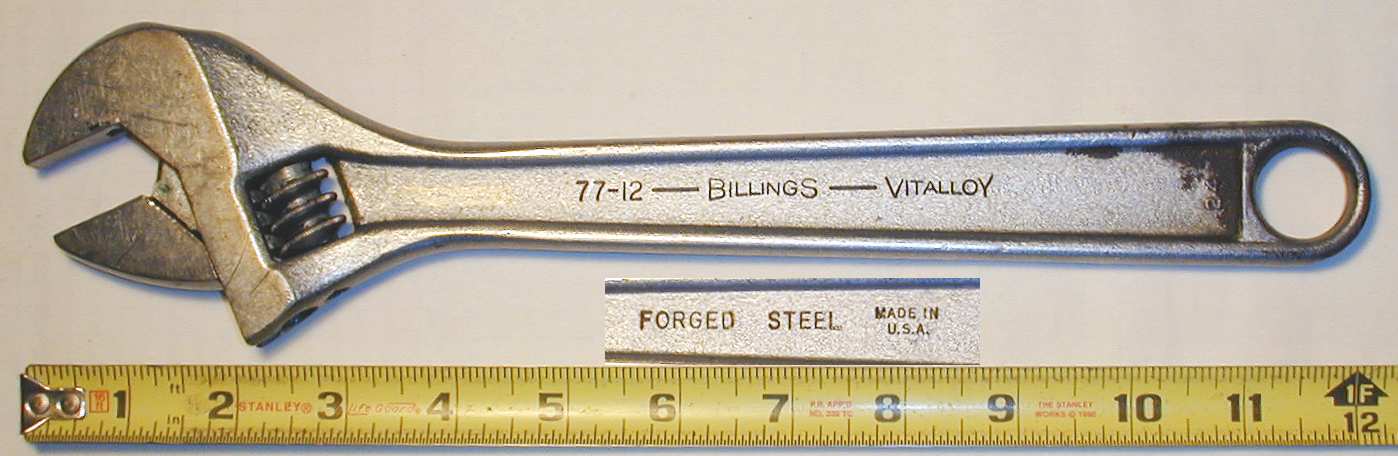

Fig. 345. Billings Vitalloy 77-12 12 Inch Adjustable Wrench, with Inset for Marking Detail, ca. 1962+.

Fig. 345 shows a later version of the Billings 77-12 adjustable wrench, stamped "Vitalloy" on the handle with "Forged Steel" and "Made in U.S.A." on the back side.

The overall length is 12.2 inches, and the maximum opening is 1.3 inches. The finish is chrome plating with polished faces.

The maximum head thickness was measured at 0.73 inches.

The design of this wrench closely resembles the later style produced by Crescent Tool, as can be seen by comparison with the Crescent Crestoloy Adjustable Wrench. In particular, note that the depressed panel of the handle extends all the way to the adjusting screw, and that the hole in the handle has a squared-of ridge on one side. Thus it's likely that this wrench is Crescent production marked for Billings, and was probably made after Billings had been acquired by Crescent Niagara.


Go To Page: << Prev   | 1 |   | 2 |   | 3 |

Alloy Artifacts Home Text and Photographs Copyright © 2005-2023 Alloy Artifacts Site Index
