Introduction

The Owatonna Tool Company is an important tool maker best known for its pullers and presses.

Company History

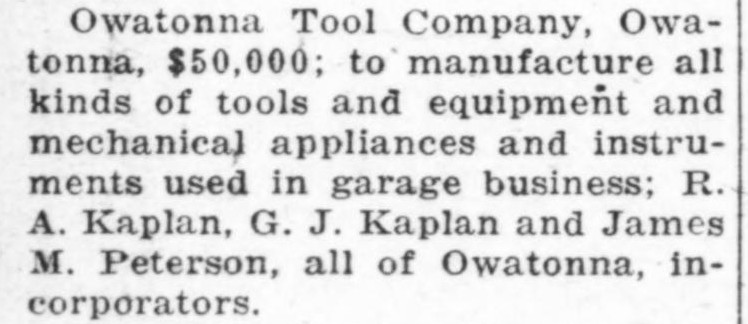

The Owatonna Tool Company (OTC) was founded in 1925 by Reuben A. Kaplan, an engineer and inventor who had previously worked for Truth Tool. The company took its name from its location in Owatonna, Minnesota.

Patents

Trademarks

In 1927 OTC filed a trademark application for the "OTC" logo, a design with the central "T" rising above and partially covering the "O" and "C". The application listed the first use date as September 1, 1925, and the trademark was issued as #237,653 on January 17, 1928. Reuben A. Kaplan was listed as president of the company.

The "Grip-O-Matic" and "Push-Puller" trademarks were registered with the first use in 1940.

Tool Identification

OTC-Shield Logo

Fig. 1. OTC-Shield Logo from Trademark #788,115.

The scan in Fig. 1 shows the OTC-Shield logo as presented for trademark #788,115.

References and Resources

Photographs and observations of particular tools are based on items in the Alloy Artifacts collection.

Catalog Coverage

Product information was obtained from a number of OTC catalogs, as summarized in the table below.

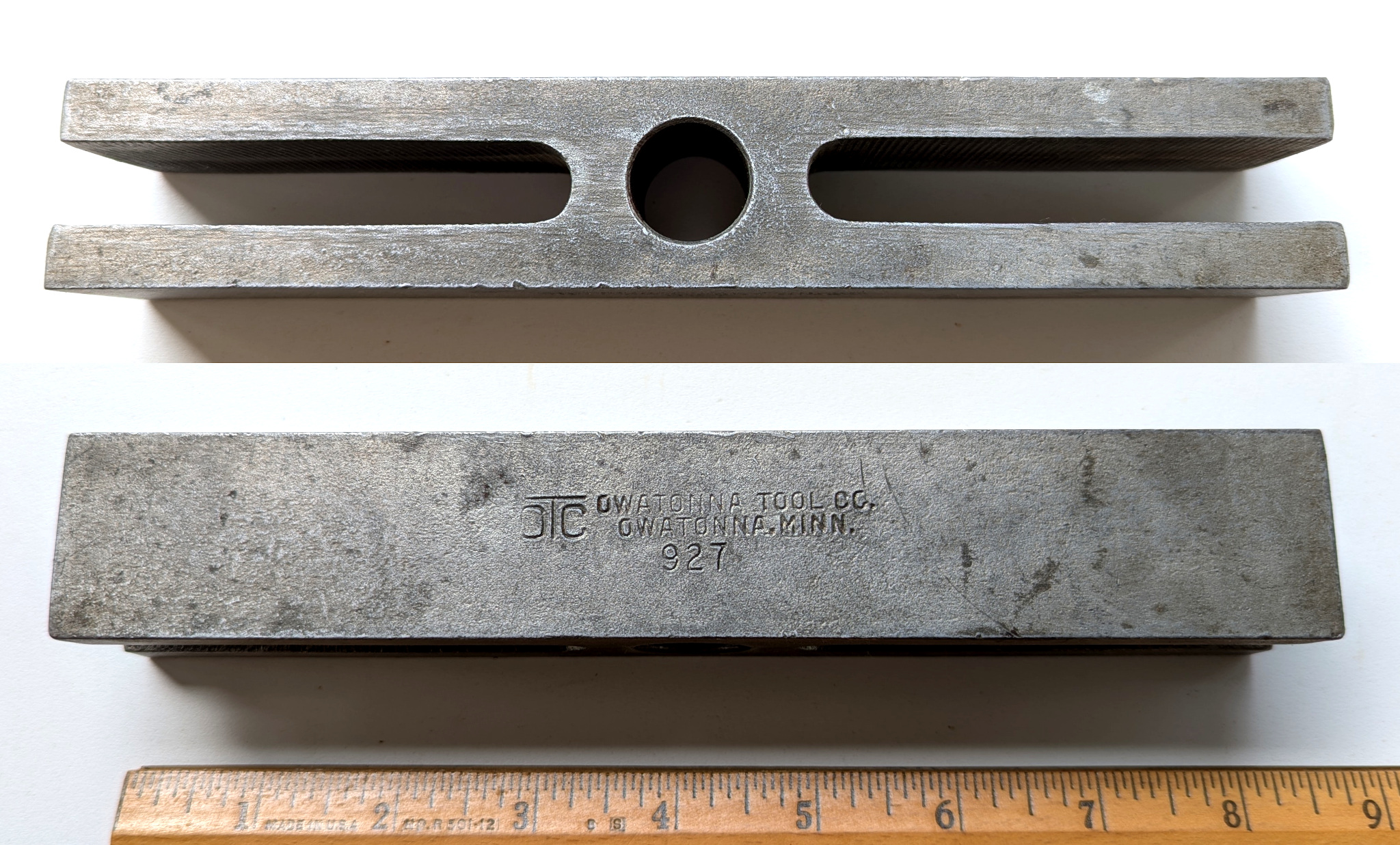

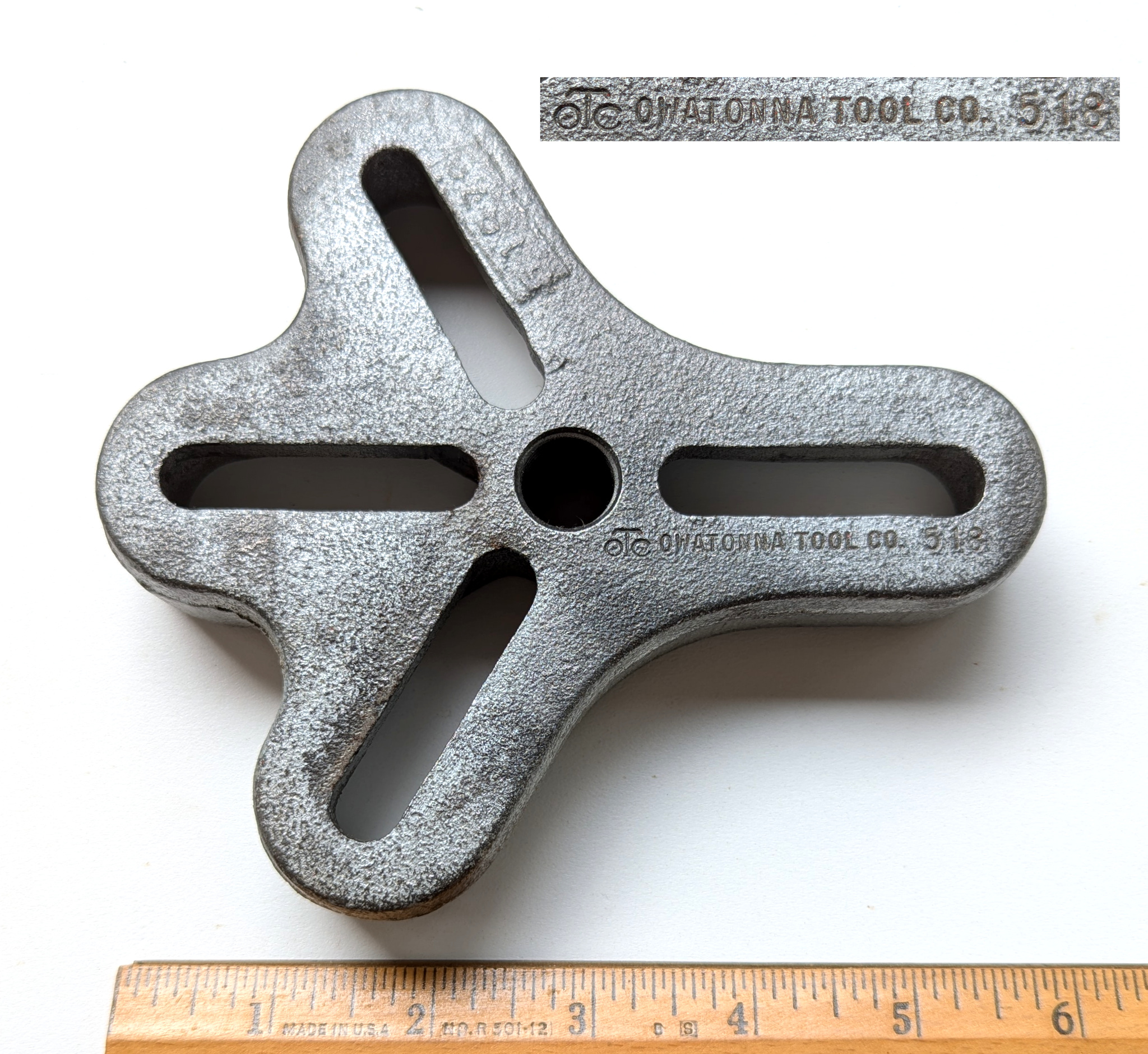

Pullers and Presses

No. 1000 "Grip-O-Matic" Two-Arm Gear Puller

Fig. 2. OTC No. 1000 Gear Puller.

Fig. 2 shows the smallest of the many OTC "Grip-O-Matic" puller models, the OTC No. 1000 gear puller.

The pressure screw is 4.0 inches long, the jaws is 2.7 inches long, and the yoke is 2.7 inches wide. The finish is plain steel for the yoke and pressure screw, and chrome plating for the jaws.

The "Grip-O-Matic" puller design is described by patent #1,709,913, filed by R.A. Kaplan in 1927 and issued in 1929.

No. 1001 "Grip-O-Matic" Two-Arm Reversible Gear Pullers

The next figures show two more examples of the OTC "Grip-O-Matic" line, both No. 1001 two-arm gear pullers, but with some differences in the construction.

Fig. 3. OTC Early No. 1001 Two-Arm Reversible Gear Puller.

Fig. 3 shows an early example of the OTC No. 1001 two-arm reversible gear puller, stamped "OTC Owatonna, Minn." and "Pat. 1709913" on one connecting plate with the model number on the opposite plate.

The pressure screw for this early model is 7.1 inches long and has a 1/2-20 diameter and thread pitch. The yoke is 3.0 inches wide, and the reversible jaws are 4.8 inches long. The finish is cadmium plating.

The "Grip-O-Matic" puller design is described by patent #1,709,913, filed by R.A. Kaplan in 1927 and issued in 1929.

Fig. 4. OTC No. 1001 Two-Arm Reversible Gear Puller.

Fig. 4 shows a somewhat later example of the OTC No. 1001 puller, stamped "OTC Owatonna, Minn." and "Pat. 1709913" on the connecting plate, with the model number stamped on the opposite plate.

The pressure screw for this puller is shorter at just 6.0 inches long, and the diameter has been increased to 9/16-20 diameter and thread pitch. The yoke is 3.0 inches wide, and the reversible jaws are 4.8 inches long.

The finish is cadmium plating.

No. 1002 "Grip-O-Matic" Two-Arm Reversible Gear Puller

Fig. 5. OTC No. 1002 Two-Arm Reversible Gear Puller, with Inset for Marking Detail.

Fig. 5 shows a larger example of the Grip-O-Matic series, an OTC No. 1002 two-arm reversible gear puller, stamped "Owatonna Tool Co. Owatonna, Minn." and "Made in U.S.A." on the connecting plate.

The pressure screw is 8.9 inches long with an 11/16-18 diameter and thread pitch. The yoke is 4.3 inches wide, and the reversible jaws are 8.6 inches long. The finish is chrome plating.

The "Grip-O-Matic" puller design is described by patent #1,709,913, filed by R.A. Kaplan in 1927 and issued in 1929.

Wrenches

OTC began as a maker primarily of automotive specialty tools and did not rush to provide the standard styles of wrenches widely available from other manufacturers. By 1929 the company was offering box-end wrenches (still relatively new at that time) and tappet wrenches.

Box-End Wrenches

By 1929 OTC was offering 12-point box-end wrenches in a number of sizes, and in standard, single-ended, and short styles.

Fig. 6. 1929 Catalog Listing for OTC Box-End Wrenches.

The scan in Fig. 6 shows the listing for box wrenches, as published on page 9 of the 1929 catalog 20-A.

The text notes that the wrenches were forged from chrome-vanadium steel.

Early [3034] 15/16x1-1/16 Offset Box Wrench

Fig. 7. OTC Early [3034] 15/16x1-1/16 Offset Box Wrench, with Insets for Side View and Marking Detail, ca. Late 1920s to Early 1930s.

Fig. 7 shows an early OTC [3034] 15/16x1-1/16 offset box wrench, marked only with the "OTC" logo.

The overall length is 16.5 inches, and the finish is plain steel.

This wrench is identified as model No. 3034 in the 1929 OTC catalog.

Early 13/32x7/16 Short Box-End Wrench

Fig. 8. OTC Early 13/32x7/16 Short Box-End Wrench, with Inset for Side View.

Fig. 8 shows an early OTC short box wrench in an unusual 13/32x7/16 size, marked only with the "OTC" logo.

The overall length is 5.7 inches, and the finish is plain steel.

OTC MA-60 1-7/8 Single-Box Heavy Duty Wrench

Stub-handle box wrenches were first offered in the 1941 catalog No. 32 and were available in straight and offset styles.

Fig. 9. OTC MA-60 1-7/8 Single-Box Heavy Duty Wrench, with Inset for Marking Detail, ca. 1941+.

Fig. 9 shows an OTC MA-60 1-7/8 single-box wrench, stamped with "Owatonna Tool Co. Owatonna, Minn." and "Made in U.S.A." on the shank.

The overall length is 13.6 inches, and the finish is plain steel.

The stub handle is fitted with a locking button to engage a hole in a tubular extension handle.

Open-End Wrenches

OTC E-1013 5/16x13/32 Open-End Wrench

Fig. 10. OTC E-1013 5/16x13/32 Open-End Wrench.

Fig. 10 shows an OTC E-1013 5/16x13/32 open-end wrench, stamped "Owatonna Tool Co." and "Owatonna, Minn." with "Made in U.S.A." on the shank. The shank also has a forged-in code "8740" visible at the left.

The overall length is 5.0 inches, and the finish is chrome plating.

OTC E-2225 11/16x25/32 Open-End Wrench

Fig. 11. OTC E-2225 11/16x25/32 Open-End Wrench, with Inset for Back Side Detail.

Fig. 11 shows an OTC E-2250 11/16x25/32 open-end wrench, stamped "Owatonna Tool Co." and "Made in U.S.A." with the OTC logo on the shank, with the model number and fractional sizes on the back side.

The overall length is 8.1 inches. The finish is chrome plating, with extensive losses due to wear.

OTC E-3640 1-1/8x1-1/4 Open-End Wrench

Fig. 12. OTC E-3640 1-1/8x1-1/4 Open-End Wrench, with Inset for Back Side Detail.

Fig. 12 shows an OTC E-3640 1-1/8x1-1/4 open-end wrench, stamped "Owatonna Tool Co." and "Made in U.S.A." with the OTC logo on the shank, with the model number and fractional sizes on the back side.

The overall length is 12.9 inches, and the finish is chrome plating.

OTC O-2428 3/4x7/8 Tappet Wrench

Fig. 13. OTC O-2428 3/4x7/8 Tappet Wrench, with Inset for back side.

Fig. 13 shows an OTC O-2428 3/4x7/8 tappet wrench, stamped "Owatonna Tool Co." and "Made in U.S.A." with the OTC logo on the shank, with the model number and fractional sizes on the back side.

The overall length is 9.4 inches, and the finish is chrome plating.

OTC B-12 3/8x3/8 Angle-Head Obstruction Wrench

Fig. 14. OTC B-12 3/8x3/8 Angle-Head Obstruction Wrench, with Inset for back side.

Fig. 14 shows an OTC B-12 3/8x3/8 obstruction wrench, stamped with the OTC logo and "Chrome-Vanadium Steel" on the shank.

The overall length is 5.5 inches, and the finish is nickel plating.

OTC No. 5 13/64x15/64 Ignition Wrench

OTC offered ignition wrenches in paired sizes with the same opening sizes but different offset angles. The next two figures show examples of a size pair.

Fig. 15. OTC No. 5 13/64x15/64 Ignition Wrench, with Inset for Back Side.

Fig. 15 shows an OTC No. 5 13/64x15/64 ignition wrench, stamped with the OTC logo and model on one side, with the fractional sizes on the back side.

The overall length is 3.1 inches, and the finish is nickel plating.

OTC No. 6 13/64x15/64 Ignition Wrench

Fig. 16. OTC No. 6 13/64x15/64 Ignition Wrench, with Inset for Back Side.

Fig. 16 shows an OTC No. 6 13/64x15/64 ignition wrench, stamped with the OTC logo and model on one side, with the fractional sizes on the back side.

The overall length is 3.1 inches, and the finish is nickel plating.

Combination Wrenches

OTC first offered combination wrenches in 1935 in four sizes from 7/16 to 5/8. Based on the illustration in catalog No. 26, these tools were contract production of Herbrand "MultiType" wrenches.

OTC C-12 3/8 Combination Wrench

Fig. 17. OTC C-12 3/8 Combination Wrench, with Inset for Back Side Detail.

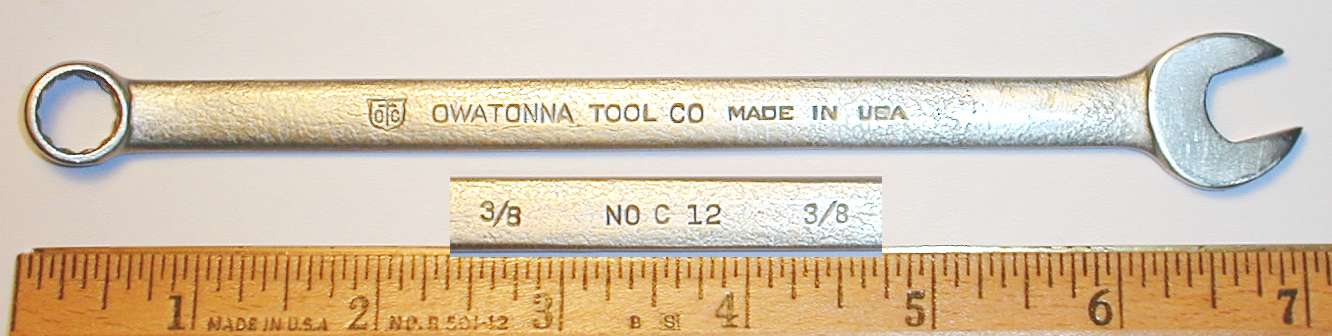

Fig. 17 shows an OTC C-12 3/8 combination wrench, marked "Owatonna Tool Co" and "Made in U.S.A." with the OTC-Shield logo.

The overall length is 7.0 inches, and the finish is chrome plating with polished faces.

OTC C-22 11/16 Combination Wrench

Fig. 18. OTC C-22 1-1/8 Combination Wrench, with Inset for Side View.

Fig. 18 shows an OTC C-22 11/16 combination wrench, stamped "Owatonna Tool Co." and "Owatonna, Minn." with "Made in U.S.A." on the shank.

The overall length is 8.6 inches, and the finish is plain steel.

OTC C-36 1-1/8 Combination Wrench

Fig. 19. OTC C-36 1-1/8 Combination Wrench, with Inset for Side View.

Fig. 19 shows an OTC C-36 1-1/8 combination wrench, marked "Owatonna" and "USA" with the OTC logo.

The overall length is 15.9 inches, and the finish is chrome plating with polished faces.

Flex-Box Wrenches

By 1941 OTC was offering flex-box wrenches in six sizes from F-1214 (3/8x7/16) up to F-2628 (13/16x7/8), and by 1947 a seventh size F-3032 (15/16x1) had become available.

F-1820 9/16x5/8 Flex-Box Wrench

Fig. 20. OTC F-1820 9/16x5/8 Flex-Box Wrench, with Inset for Top View, ca. 1941+.

Fig. 20 shows an OTC F-1820 9/16x5/8 flex-box wrench, stamped "Owatonna Tool Co. Owatonna, Minn." and "Made in U.S.A." on the raised panel.

The overall length is 9.7 inches fully extended, and the finish is cadmium plating.

F-2224 11/16x3/4 Flex-Box Wrench

Fig. 21. OTC F-2224 11/16x3/4 Flex-Box Wrench, with Inset for Top View, ca. 1941+.

Fig. 21 shows an OTC F-2224 11/16x3/4 flex-box wrench, marked "Owatonna Tool Co. Owatonna, Minn." and "Made in U.S.A." on the raised panel.

The overall length is 11.0 inches, and the finish is plain steel.

F-2628 13/16x7/8 Flex-Box Wrench

Fig. 22. OTC F-2628 13/16x7/8 Flex-Box Wrench, with Insets for Top View and Back Side Detail, ca. 1941+.

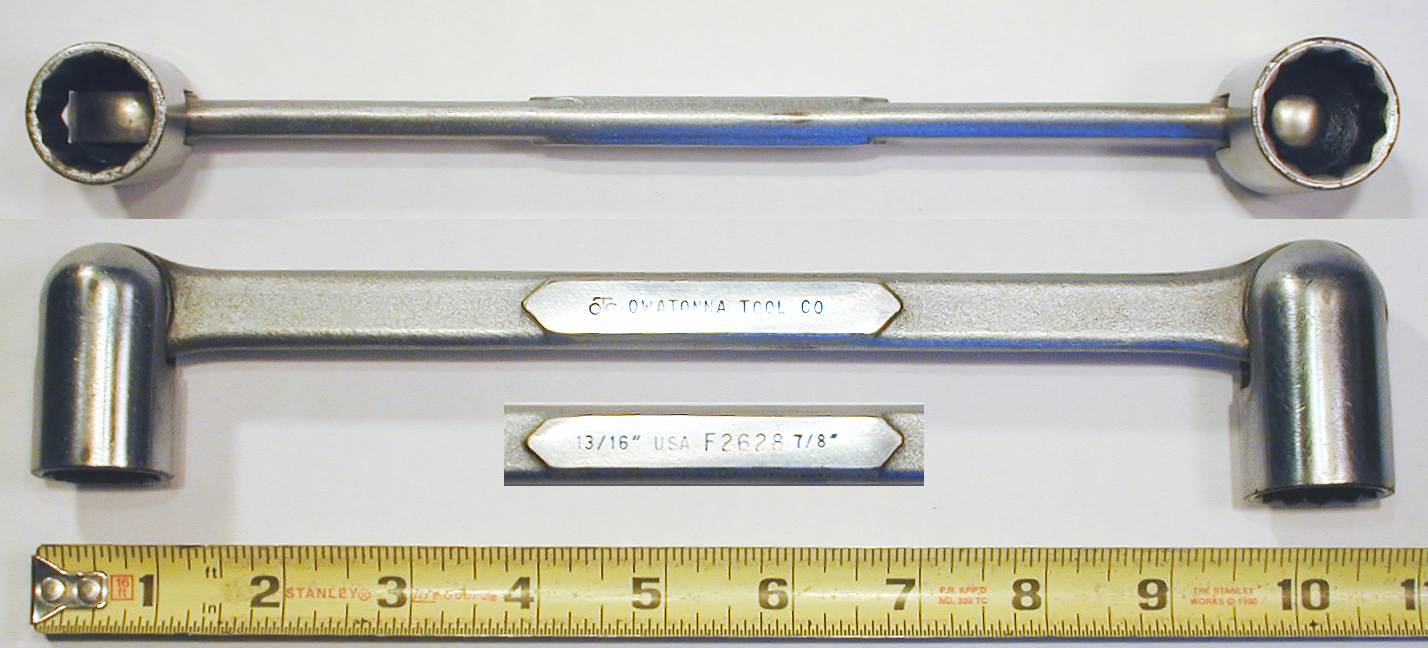

Fig. 22 shows an OTC F-2628 13/16x7/8 flex-box wrench, marked "Owatonna Tool Co." on the raised panel, with "USA" on the back side.

The overall length is 12.3 inches fully extended, and the finish is chrome plating with polished panels and sockets.

F-3032 15/16x1 Flex-Box Wrench

Fig. 23. OTC F-3032 15/16x1 Flex-Box Wrench, with Insets for Top View and Back Side Detail, ca. 1947+.

Fig. 23 shows an OTC F-3032 15/16x1 flex-box wrench, stamped "Owatonna Tool Co." with the OTC logo on the raised panel, with "Made in U.S.A." and the fractional sizes on the back side.

The overall length is 14.3 inches fully extended, and the finish is chrome plating with polished panels and sockets.

Specialty Wrenches

Early 9/16x5/8 Half-Moon Box Wrench

Fig. 24. OTC Early 9/16x5/8 Half-Moon Box Wrench.

Fig. 24 shows an early OTC 9/16x5/8 half-moon box wrench, probably intended for starter and manifold service. The wrench is unmarked except for the "OTC" logo.

The overall length is 7.1 inches, and the finish is plain steel.

OTC RB-2428 3/4x7/8 Ratcheting Box Wrench

Fig. 25. OTC RB-2428 3/4x7/8 Ratcheting Box Wrench, with Insets for Side View and Back Side Detail, ca. 1947-1950.

Fig. 25 shows an OTC RB-2428 3/4x7/8 ratcheting box wrench, stamped "Owatonna Tool Co." and "Made in U.S.A." with the OTC logo on the front, with "Pat. App." on the back side.

The overall length is 9.2 inches, and the finish is chrome plating.

The top inset shows the laminated and riveted construction of the wrench, allowing the maker to be identified as A&E Manufacturing, a major producer of ratcheting box wrenches from the 1950s onward.

The pending status refers to patent #2,500,835, filed by John W. Lang in 1947 and issued in 1950.

The round shank is equipped with a push-button locking pin to engage an extender handle.

OTC 7051 1-3/8x1-1/2 Speciaty Open-End Wrench

Fig. 26. OTC 7051 1-3/8x1-1/2 Open-End Wrench, ca. Late 1970s to 1980s.

Fig. 26 shows an OTC 7051 1-3/8x1-1/2 open-end wrench, stamped with the OTC logo on the raised panel.

The overall length is 9.9 inches, and the finish is chrome plating.

This wrench is listed in the 1978 OTC catalog AM-75 for front-end work, specifically for adjusting the camber on Cadillac models with ball-joint suspensions.

OTC 505 1/2 Distributor Wrench

Fig. 27. OTC 505 1/2 Distributor Wrench, with Insets for Construction and Marking Detail, ca. Late 1950s to 1960s.

Fig. 27 shows an OTC 505 1/2 distributor wrench, stamped with the OTC logo and model number around the shank.

The overall length is 9.5 inches, and the finish is cadmium plating.

This wrench is listed in the 1959 OTC catalog A-9 as a distributor lock-nut wrench for Cadillac and Studebaker service.

Sockets and Drive Tools

OTC H-183 1/2-Drive Speeder

Fig. 28. OTC H-183 1/2-Drive Speeder, with Inset for Marking Detail, ca. 1942-1945

Fig. 28 shows a 1/2-drive OTC H-183 speeder, stamped "Owatonna Tool Co. Owatonna, Minn." and "Made in U.S.A." on the end piece.

The overall length is 15.8 inches, and the finish is cadmium plating.

OTC H-187 1/2-Drive Sliding Tee Handle

Fig. 29. OTC H-187 1/2-Drive Sliding Tee Handle, with Insets for Marking Detail.

Fig. 29 shows a 1/2-drive OTC H-187 sliding Tee handle, stamped "Owatonna Tool Co. Owatonna, Minn." and "Made in U.S.A." on the sliding head.

The overall length is 10.0 inches, and the finish is cadmium plating.

OTC [41-H-1500] 1/2-Drive Flex Handle

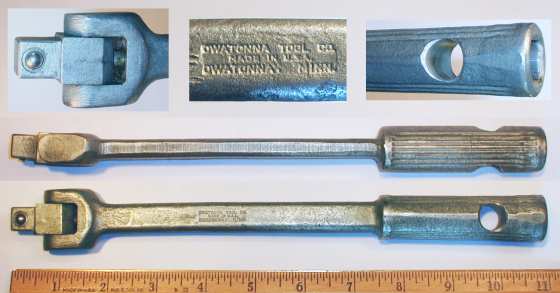

Fig. 30. OTC [41-H-1500] 1/2-Drive 10 Inch Flex Handle, with Insets for Side View and Detail, ca. 1941-1945.

Fig. 30 shows a 1/2-drive OTC 10 inch flex handle produced for a military tool kit, stamped "Owatonna Tool Co. Owatonna, Minn." and "Made in U.S.A." on the shank. Although not marked with a model number, the tool was identified as the "41-H-1500 Handle" illustrated in publication ORD 6 SNL G-27, a catalog of the "Tool-Set, General Mechanics'" from the WWII era.

The overall length is 10.8 inches, and the finish is cadmium plating.

The handle is equipped with a cross-bar hole and has a 1/2-drive end broaching, allowing use as a Tee-handle or extension.

The lower inset shows a side view of the tool, clearly illustrating the trimming marks left by the drop-forge trimming operation. The fairly rough finish was appropriate for a tool being made for a military tool kit, as the emphasis was on high-volume low-cost production.

The full description for the tool in the ORD 6 SNL G-27 catalog is "HANDLE, socket wrench, hinged, 1/2 in. sq-drive.,length 10 1/2 in.", and the catalog shows a $1.15 unit price.

OTC H-161 1/2-Drive Ratchet

Fig. 31. OTC H-161 1/2-Drive Ratchet, with Inset for Side View.

Fig. 31 shows a 1/2-drive OTC H-161 ratchet, with markings "Owatonna Tool Co. Owatonna, Minn." and "Made in U.S.A." stamped on the shank.

The overall length is 11.3 inches, and the finish is plain steel.

OTC H-160 1/2-Drive Rotating-Head Ratchet

Fig. 32. OTC H-160 1/2-Drive Rotating-Head Ratchet, with Insets for Marking Detail, ca. 1935+.

Fig. 32 shows a 1/2-drive OTC H-160 "flex" ratchet with a distinctive rotating head, stamped "Owatonna Tool Co. Owatonna, Minn." and "Made in U.S.A." on the shank.

The overall length is 11.9 inches, and the finish is cadmium plating.

This unusual style of flex-head ratchet allows the head to rotate through 360 degrees, providing the flexibility to operate at any angle in tight places. The OTC catalogs called these "Flex Ratchets", and models of this type (in 3/8-drive as well) were offered as early as 1935 in OTC catalog No. 26. Although this model was offered at a relatively early date, the design borrows from the even earlier Cunha 1919 patent, shown as the Peerless Wrench Cunha Patent Ratchet.

OTC H-260 3/8-Drive Rotating-Head Ratchet

Fig. 33. OTC H-260 3/8-Drive Rotating-Head Ratchet, with Inset for Side View.

Fig. 33 shows the 3/8-drive version of the rotating head ratchet, an OTC H-260 flex ratchet stamped with the OTC logo.

The overall length is 7.0 inches, and the finish is chrome plating.

The ratchet mechanism has a 24-tooth drive gear and uses dual pawls for greater strength. The ratchet action can be reversed by pushing the drive stud through to the other side.

As with other OTC ratchets, the ratchet head has been permanently sealed by crimping the edges.

OTC H-275 3/8-Drive Flex Handle

Fig. 34. OTC H-275 3/8-Drive Flex Handle, with Inset for Marking Detail.

Fig. 34 shows a 3/8-drive OTC H-275 flex handle, marked with the OTC logo on the shank.

The overall length is 8.3 inches, and the finish is plain steel.

OTC P-61 1.5-Hex Drive Ratchet

Fig. 35. OTC P-61 1.5 Hex Drive Ratchet, with Inset for Side View.

Fig. 35 shows an OTC P-61 1.5 hex drive ratchet, marked "Owatonna Tool Co. Owatonna, Minn." and "Made in U.S.A." on the shank.

The overall length is 11.3 inches, and the finish is chrome plating.

The stub handle is fitted with a locking button to engage a hole in a tubular extension handle.

The P-61 is a heavy-duty ratchet intended for several applications. The 1-1/2 hex opening can be used directly on the hex nuts for some large OTC pullers.

In addition, with a suitable adapter the ratchet can be used with 3/4-drive and 1 inch drive socket sets.

OTC P61-6 1.5 Hex To 3/4 Square Drive Adapter Plug

Fig. 36. OTC P-61-6 1.5 Hex To 3/4 Square Adapter Plug.

Fig. 36 shows one of the adapters available for the P-61 ratchet, an OTC P61-6 drive adapter going from 1.5 hex to 3/4 square drive. The adapter is marked with the OTC logo and model number.

The overall length is 3.0 inches, and the finish is chrome plating.

Specialty Tools

Bent Longnose Specialty Pliers

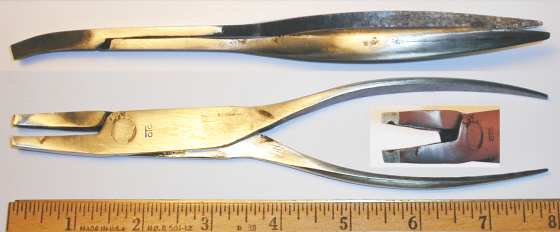

Fig. 37. OTC Bent Longnose Specialty Pliers, with Insets for Side View and Jaw Detail, ca. 1935.

Fig. 37 shows a rarely-seen pair of OTC bent longnose specialty pliers, constructed with a groove in the tip for handling pins and wires.

The overall length is 7.9 inches, and the finish is polished steel.

The lower inset shows a closeup of the jaws, with a matching groove in each side to help handle small cylindrical objects.

These pliers were listed in OTC catalog No. 26 from 1935, and were available in both straight and bent-nose styles.

614 Snap-Ring Pliers

Fig. 38. OTC 614 Snap-Ring Pliers.

Fig. 38 shows a pair of OTC 614 snap-ring pliers, marked "Owatonna Tool Co." with "Owatonna, Minn." and "Made in U.S.A." on the handle.

The overall length is 8.3 inches, and the finish is plain steel.

714 Snap-Ring Pliers

Fig. 39. OTC 714 Snap-Ring Pliers.

Fig. 39 shows a pair of OTC 714 snap-ring pliers, marked "Owatonna Tool Co." with "Owatonna, Minn." and "Made in U.S.A." on the handle.

The overall length is 7.2 inches, and the finish is plain steel.

OTC 776 Brake Spoon

Fig. 40. OTC 776 Brake Spoon, with Inset for Side View.

Fig. 40 shows an OTC 776 brake spoon, stamped with the OTC logo and "Made in U.S.A." on the shank.

The overall length is 7.0 inches, and the finish is plain steel.

OTC A-100 Valve Spring Lifter

Fig. 41. OTC A-100 Valve Spring Lifter, with Inset for Side View.

Fig. 41 shows an OTC A-100 valve spring lifter, stamped with the OTC logo and "Owatonna Tool Co. Owatonna Minn.", plus "Made in U.S.A." and a "Pat. No. 2,119,128" patent notice.

The overall length is 8.5 inches, and the finish is black oxide.

The patent notice refers to patent #2,119,128, filed by I.J. Clark in 1937 and issued in 1938. This patent was used by other tool makers as well as OTC, and an example can be seen in the Herbrand VL-540 Valve Spring Lifter.
