The Armaloy Era

Armstrong's earlier alloy tools had been marked as "Chrome-Vanadium", "Alloy Steel", or some equivalent, but in August of 1946 the company began using "Armaloy" as the standard marking for alloy steel tools. ("Armaloy" was registered as a trademark in 1957.)

Since it probably took some time to change over the markings, a beginning year of 1947 is reasonable for "Armaloy" marked tools. Within this era there were relatively few changes in design to allow for estimation of manufacturing dates, but in 1978 the model number system was revamped to use 5-digit numbers. Unless other factors are known, we will use a range of 1947-1978 for Armaloy tools in the older numbering system.

Hopefully further review of the catalogs will help refine the date estimation process.


Open-End Wrenches


1021-S Armaloy 1/4x5/16 Specialty Open-End Wrench

[Armstrong Armaloy 1021-S 1/4x5/16 Specialty Open-End Wrench]
Fig. 112. Armstrong Armaloy 1021-S 1/4x5/16 Specialty Open-End Wrench, with Inset for Reverse, ca. 1947-1978.

Fig. 112 shows an Armstrong 1021-S 1/4x5/16 specialty open-end wrench, stamped "Made in U.S.A." with the Strong-Arm logo on the face, and with the "Armaloy" trademark on the shank.

The overall length is 4.6 inches, and the finish is polished chrome plating.


1729 Armaloy 5/8x3/4 Open-End Wrench

[Armstrong Armaloy 1729 5/8x3/4 Open-End Wrench]
Fig. 113. Armstrong Armaloy 1729 5/8x3/4 Open-End Wrench, ca. 1947-1978.

Fig. 113 shows an Armstrong 1729 5/8x3/4 open-end wrench, stamped "Made in U.S.A." with the Strong-Arm logo on the face, and with the "Armaloy" trademark on the shank.

The overall length is 8.0 inches, and the finish is polished chrome.


1029 Armaloy 11/16x25/32 Open-End Wrench

[Armstrong Armaloy 1029 11/16x25/32 Open-End Wrench]

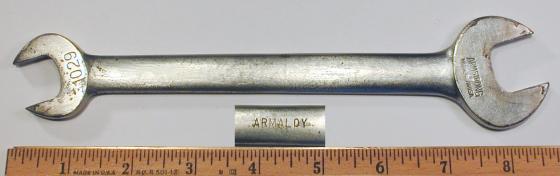

Fig. 114. Armstrong Armaloy 1029 11/16x25/32 Open-End Wrench, with Inset for Reverse Detail, ca. 1947-1978.

Fig. 114 shows an Armstrong 1029 11/16x25/32 open-end wrench, stamped "Made in U.S.A." with the Strong-Arm logo on the face, and with the "Armaloy" trademark on the reverse shank.

The overall length is 8.6 inches, and the finish is chrome plating.


1731 Armaloy 3/4x13/16 Open-End Wrench

[Armstrong Armaloy 1731 3/4x13/16 Open-End Wrench]
Fig. 115. Armstrong Armaloy 1731 3/4x13/16 Open-End Wrench, with Inset for Reverse, ca. 1947-1978.

Fig. 115 shows an Armstrong 1731 3/4x13/16 open-end wrench, stamped with "Made in U.S.A." and the Strong-Arm logo on the face, with the "Armaloy" trademark on the shank.

The overall length is 9.2 inches, and the finish is chrome plating with polished faces.


1731-A Armaloy 3/4x7/8 Open-End Wrench

[Armstrong Armaloy 1731-A 3/4x7/8 Open-End Wrench]
Fig. 116. Armstrong Armaloy 1731-A 3/4x7/8 Open-End Wrench, ca. 1947-1978.

Fig. 116 shows an Armstrong 1731-A 3/4x7/8 open-end wrench, marked "Made in U.S.A." with the Strong-Arm logo on the face, and with the "Armaloy" trademark on the shank.

The overall length is 9.3 inches, and the finish is chrome plating with polished faces.


1039-B Armaloy 1-1/4x1-5/16 Open-End Wrench

[Armstrong Armaloy 1039-B 1-1/4x1-5/16 Open-End Wrench]
Fig. 117. Armstrong Armaloy 1039-B 1-1/4x1-5/16 Open-End Wrench, ca. 1947-1978.

Fig. 117 shows an Armstrong 1039-B 1-1/4x1-5/16 open-end wrench, stamped "Made in U.S.A." with the Strong-Arm logo on the face, although barely visible due to wear and pitting. The shank is stamped "Armaloy" near the center.

The overall length is 14.1 inches, and the finish is chrome plating.


1029-C 11/16x13/16 Open-End Wrench

In later production Armstrong dropped the venerable Strong-Arm logo from its tools, but continued to use the Armaloy trademark for some time.

[Armstrong Armaloy 1029-C 11/16x13/16 Open-End Wrench]
Fig. 118. Armstrong Armaloy 1029-C 11/16x13/16 Open-End Wrench, with Inset for Reverse Detail, ca. 1947-1978.

Fig. 118 shows an Armstrong 1029-C 11/16x13/16 open-end wrench, stamped "U.S.A." and "Armaloy" on the shank, with the model number and sizes on the reverse.

The overall length is 8.5 inches, and the finish is chrome plating.


H-15 9/32x3/8 Miniature Open-End Wrench

Armstrong also produced open-end wrenches in miniature sizes, commonly called ignition wrenches.

[Armstrong H-15 9/32x3/8 Miniature Open-End Wrench]
Fig. 119. Armstrong H-15 9/32x3/8 Miniature Open-End Wrench, with Inset for Reverse Detail.

Fig. 119 shows an Armstrong H-15 9/32x3/8 miniature open-end wrench, stamped "Made in U.S.A." with the Strong-Arm logo on the face, and with "Armaloy" on the shank.

The overall length is 3.8 inches, and the finish is polished chrome.

The inset shows the dual marking "Blackhawk-Armstrong", indicating that this wrench was contract production for Blackhawk.


1122 11/32x11/32 Ignition Wrench

[Armstrong 1122 11/32x11/32 Ignition Wrench]
Fig. 120. Armstrong 1122 11/32x11/32 Ignition Wrench, with Inset for Reverse Detail, ca. 1947-1978.

Fig. 120 shows an Armstrong 1122 11/32x11/32 obstruction-style ignition wrench, stamped "Armstrong U.S.A." and "Armaloy" on the reverse.

The overall length is 3.7 inches, and the finish is polished chrome.


Tappet Wrenches

For the Armaloy era Armstrong offered tappet wrenches in a 109x series, using the same design with unequal openings and 15 degree offset angles as the older 42x series. By this time the older 40x series wrenches with asymmetric offsets had been discontinued.


Armstrong Armaloy 1092-F 5/8x11/16 Tappet Wrench

[Armstrong) 1092-F 5/8x11/16 Tappet Wrench]
Fig. 121A. Armstrong Armaloy 1092-F 5/8x11/16 Tappet Wrench, with Inset for Reverse, ca. 1947-1978.

Fig. 121A shows an Armstrong Armaloy 1092-F 5/8x11/16 tappet wrench, stamped with "Armstrong" and "Made in U.S.A. plus the Strong-Arm logo on the left face, with the model number on the right. The shank is stamped with "Armaloy" on the front.

The overall length is 8.4 inches, and the finish is chrome plating, with losses due to wear and rust.


Armaloy (Blackhawk-Armstrong) 1090-D 1/2x9/16 Tappet Wrench

Some earlier examples of Armaloy tappet wrenches can be seen in tools marked for the Blackhawk-Armstrong line. These tools all bear the standard Armstrong markings of the time, clearly illustrating that these were really just standard Armstrong production with the Blackhawk name added. Blackhawk Manufacturing was acquired by New Britain Machine in 1955 and the tool production changed after that, providing a 1947-1955 date range for the Armaloy-marked tools.

[Armaloy (Blackhawk-Armstrong) 1090-D 1/2x9/16 Tappet Wrench]
Fig. 121B. Armaloy (Blackhawk-Armstrong) 1090-D 1/2x9/16 Tappet Wrench, with Insets for Reverse and Marking Detail, ca. 1947-1955.

Fig. 121B shows a Blackhawk-Armstrong 1090-D 1/2x9/16 tappet wrench, stamped with "Armstrong" and "Made in U.S.A. plus the Strong-Arm logo on the face. The shank is stamped with "Blackhawk-Armstrong" on the front, with "Armaloy" on the reverse.

The overall length is 8.0 inches, and the finish is chrome plating.

This wrench is marked with Armstrong's "Armaloy" trademark, indicating production in 1947 or later.


Armaloy (Blackhawk-Armstrong) 1094 3/4x7/8 Tappet Wrench

[Armaloy (Blackhawk-Armstrong) 1094 3/4x7/8 Tappet Wrench]
Fig. 121C. Armaloy (Blackhawk-Armstrong) 1094 3/4x7/8 Tappet Wrench, with Insets for Reverse, ca. 1947-1955.

Fig. 121C shows a Blackhawk-Armstrong 1094 3/4x7/8 tappet wrench, stamped with "Armstrong" and "Made in U.S.A." plus the Strong-Arm logo on the reverse face. The shank is stamped with "Blackhawk-Armstrong" on the front, with "Armaloy" on the reverse.

The overall length is 8.9 inches, and the finish is chrome plating.

This wrench is marked with Armstrong's "Armaloy" trademark, indicating production in 1947 or later.


Box-End Wrenches

Armaloy box wrenches were available in several different configurations, all denoted by industry-standard numbers with a 4-digit prefix to specify the design. Specifically, the 6xxx series denoted short angled wrenches, the 7xxx series denoted long angled wrenches, the 8xxx series denoted long offset wrenches, and the 9xxx series denoted short offset wrenches. An additional 5xxx series was used to indicate extra heavy duty offset box wrenches.


8723 Armaloy 3/8x7/16 Offset Box-End Wrench

[Armstrong Armaloy 8723 3/8x7/16 Offset Box-End Wrench]
Fig. 122A. Armstrong Armaloy 8723 3/8x7/16 Offset Box-End Wrench, with Insets for Side View and Reverse Detail, ca. 1947-1978.

Fig. 122A shows an Armstrong 8723 3/8x7/16 offset box wrench, stamped "Made U.S.A." with the "Armaloy" trademark, and with the model and sizes on the reverse.

The overall length is 8.0 inches, and the finish is chrome plating.


8025 Armaloy 1/2x19/32 Offset Box-End Wrench

[Armstrong Armaloy 8025 1/2x19/32 Offset Box-End Wrench]
Fig. 122. Armstrong Armaloy 8025 1/2x19/32 Offset Box-End Wrench, with Insets for Side View and Reverse Detail, ca. 1947-1978.

Fig. 122 shows an Armstrong 8025 1/2x19/32 offset box wrench, stamped "Made U.S.A." with the "Armaloy" trademark, and with the model and sizes on the reverse.

The overall length is 9.1 inches, and the finish is chrome plating.


8727 Armaloy 9/16x5/8 Offset Box-End Wrenches

The next two figures show examples of the 8727 offset box wrench.

[Armstrong Armaloy 8727 9/16x5/8 Offset Box-End Wrench]
Fig. 123. Armstrong Armaloy 8727 9/16x5/8 Offset Box-End Wrench, with Insets for Side View and Reverse Detail, ca. 1947-1978.

Fig. 123 shows an earlier Armstrong 8727 9/16x5/8 offset box wrench, marked "Made in U.S.A." with the Strong-Arm logo, and with "Armaloy" on the reverse.

The overall length is 9.7 inches, and the finish is plain steel.

The rough, unplated finish of this wrench suggests that it was probably made during the wartime period, but the "Armaloy" marking would normally indicate a manufacturing date after 1946. To reconcile these observations, this wrench may a very early example of the use of "Armaloy", perhaps an informal marking before the trademark was actually registered.

[Armstrong Armaloy 8727 9/16x5/8 Offset Box-End Wrench]
Fig. 124. Armstrong Armaloy 8727 9/16x5/8 Offset Box-End Wrench, with Inset for Reverse Detail, ca. 1947-1978.

Fig. 124 shows a much later version of the Armstrong 8727 offset box wrench, marked "Made U.S.A." and "Armaloy", with the model number on the reverse.

The overall length is 9.7 inches, and the finish is chrome plating with polished ends.


9725 Armaloy 9/16x5/8 Short Offset Box Wrench

Armstrong also offered a 9000 series of short offset box wrenches, as the next figure illustrates.

[Armstrong Armaloy 9725 9/16x5/8 Short Offset Box Wrench]
Fig. 125. Armstrong Armaloy 9725 7/16x1/2 Short Offset Box Wrench, with Insets for Side View and Reverse Detail, ca. 1947-1978.

Fig. 125 shows an Armstrong 9725 7/16x1/2 short offset box wrench, stamped "Made U.S.A." with the Armaloy trademark, and with the model number and fractional sizes on the reverse.

The overall length is 5.6 inches, and the finish is plain steel.


Combination Wrenches

Armaloy combination wrenches were offered in a 11xx model series, the same numbering used by J.H. Williams.


1159-A Armaloy 11/32 Combination Wrench

[Armstrong Armaloy 1159-A 11/32 Combination Wrench]
Fig. 126. Armstrong Armaloy 1159-A 11/32 Combination Wrench, with Inset for Reverse Detail, ca. 1947-1978.

Fig. 126 shows an Armstrong 1159-A 11/32 combination wrench, stamped "Armstrong U.S.A." and "Armaloy" on the shank, with the size and model number stamped on the reverse.

The overall length is 4.0 inches, and the finish is polished chrome.


1160 Armaloy 3/8 Combination Wrench

[Armstrong Armaloy 1160 3/8 Combination Wrench]
Fig. 127. Armstrong Armaloy 1160 3/8 Combination Wrench, with Insets for Side View and Reverse Detail, ca. 1947-1978.

Fig. 127 shows an Armstrong 1160 3/8 combination wrench, stamped "Made in U.S.A." with the Strong-Arm logo on the face, and with the size and "Armaloy" trademark stamped on the shank. The reverse face is stamped with the model number, as seen in the lower inset.

The overall length is 4.2 inches, and the finish is polished chrome.


1163 Armaloy 9/16 Combination Wrench

[Armstrong Armaloy 1163 9/16 Combination Wrench]
Fig. 128. Armstrong Armaloy 1163 9/16 Combination Wrench, with Inset for Reverse Detail, ca. 1947-1978.

Fig. 128 shows an Armstrong 1163 9/16 combination wrench, stamped "Armstrong U.S.A." and "Armaloy" on the shank, with the size and model number stamped on the reverse.

The overall length is 5.9 inches, and the finish is polished chrome.


1166 Armaloy 3/4 Combination Wrench

[Armstrong Armaloy 1166 3/4 Combination Wrench]
Fig. 129. Armstrong Armaloy 1166 3/4 Combination Wrench, with Inset for Reverse Detail, ca. 1947-1978.

Fig. 129 shows an Armstrong 1166 3/4 combination wrench, stamped "Armstrong U.S.A." and "Armaloy" on the shank, with the size and model number stamped on the reverse.

The overall length is 8.1 inches, and the finish is polished chrome.


1167 Armaloy 7/8 Combination Wrench

[Armstrong Armaloy 1167 7/8 Combination Wrench]

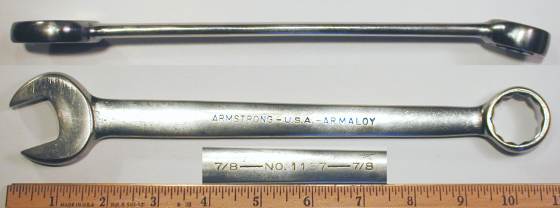

Fig. 130. Armstrong Armaloy 1167 7/8 Combination Wrench, with Insets for Side View and Reverse Detail.

Fig. 130 shows an Armstrong 1167 7/8 combination wrench, stamped "Armstrong U.S.A." and "Armaloy" on the shank, with the size and model number stamped on the reverse.

The overall length is 10.6 inches, and the finish is polished chrome.


1168-L Armaloy 15/16 Long Combination Wrench

[Armstrong Armaloy 1168-L 15/16 Long Combination Wrench]
Fig. 131. Armstrong Armaloy 1168-L 15/16 Long Combination Wrench, with Insets for Side View and Reverse Detail.

Fig. 131 shows an Armstrong 1168-L 15/16 long-series combination wrench, stamped "Made in U.S.A." with the Strong-Arm logo on the face, and with the "Armaloy" trademark on the shank.

The overall length is 13.2 inches. The finish is chrome plating with polished faces.


1170-L Armaloy 1 Inch Long Combination Wrench

[Armstrong Armaloy 1170-L 1 Inch Long Combination Wrench]
Fig. 132. Armstrong Armaloy 1170-L 1 Inch Long Combination Wrench, with Insets for Side View and Reverse Detail.

Fig. 132 shows an Armstrong 1170-L 1 Inch long-series combination wrench, stamped "Made in U.S.A." with the Strong-Arm logo on the face, and with the size and "Armaloy" trademark stamped on the shank. The reverse face is stamped with the model number, as seen in the lower inset.

The overall length is 13.3 inches, and the finish is polished chrome.


1172-L Armaloy 1-1/8 Long Combination Wrench

[Armstrong Armaloy 1172-L 1-1/8 Long Combination Wrench]
Fig. 133. Armstrong Armaloy 1172-L 1-1/8 Long Combination Wrench, with Insets for Side View and Reverse Detail.

Fig. 133 shows an Armstrong 1172-L 1-1/8 long-series combination wrench, stamped "U.S.A." and "Armaloy" on the shank, with the model number and fractional size on the reverse.

The overall length is 15.9 inches, and the finish is polished chrome.


25-524 Armaloy 3/4 Flex-Box Combination Wrench

[Armstrong Armaloy 25-524 3/4 Flex-Box Combination Wrench]
Fig. 134. Armstrong Armaloy 25-524 3/4 Flex-Box Combination Wrench, with Inset for Reverse Detail, 1978+.

Fig. 134 shows a fairly recent Armstrong 25-524 3/4 flex-box combination wrench, stamped "U.S.A." and "Armaloy" on the shank, with the model number and fractional size on the reverse.

The overall length is 10.9 inches, and the finish is polished chrome.

The revised model number indicates production in 1978 or later.

Specialty Tools


4122 Armaloy 11/16 Flare-Nut Wrench

[Armstrong Armaloy 4122 11/16 Flare-Nut Wrench]
Fig. 135. Armstrong Armaloy 4122 11/16 Flare-Nut Wrench, ca. 1947-1978.

Fig. 135 shows an Armstrong 4122 11/16 single-ended flare-nut wrench, marked "U.S.A." with the "Armaloy" trademark.

The overall length is 6.9 inches, and the finish is polished chrome.


T-4 Shock Absorber Wrench

[Armstrong T-4 Shock Absorber Wrench]
Fig. 136. Armstrong T-4 Shock Absorber Wrench, with Insets for Side View and Reverse Detail.

Fig. 136 shows an Armstrong T-4 shock absorber specialty wrench, stamped "U.S.A." with the Strong-Arm logo, with "Columbus Shock Absorbers" on the reverse.

The overall length is 8.4 inches, and the finish is nickel (or possibly chrome) plating.
