JIS Summary Reports

The following sections will provide JIS certification data from various summary reports, including the Factory Name Lists of 1955 and 1958, the Certified Lists of 1962, 1964, 1967, 1972, and 1982, and a web-based summary from 1999.

In general, the summary reports provided the cumulative certification status for companies that remained certified at the time of the report.

Prior to 1971 the summary reports served as the only source for product notes, including the notes that defined the class suffixes "N", "H", "P", and "S". The product notes should have been published in the JIS Monthly Reports, so that an association with the test date could be established, but for unknown reasons this was delayed until 1971.

1955 JIS Factory Name List

Fig. 30. Cover of 1955 JIS Factory Name List.

In 1955 the JIS administration published the first edition of the JIS工場名簿, commonly translated as the "JIS Factory Name List". This publication was a directory of all factories with JIS certifications for a wide range of product classes.

The scan in Fig. 30 shows the cover of the 1955 Factory Name List, as published by the Japanese Standards Association.

As might be expected for a first edition, there are some limitations in the data presented. In particular, the test dates for the certifications are omitted, and there are no notes such as jaw angle or "heavy" grade to describe the tested products.

We have extracted scans from the 1955 Factory Name List for classes B4604/B4606, B4614, B4623-B4625, B4630, and B4631, which are presented in the figures below.

1955 JIS Summary for Classes B4604 and B4606

Fig. 31. JIS Classes B4604 and B4606 from 1955 Factory Name List.

The scan in Fig. 31 shows the JIS certifications for Classes B4604 (adjustable wrenches) and B4606 (pipe wrenches), as published on page 37 of the 1955 Factory Name List.

This report omits the dates of the certifications, and although the JIS class is specified, no further notes are provided.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date known from other reports.

Comments on JIS 1955 Class B4604 and B4606 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 26, corresponding to 1951. (Add 1925 to convert Showa dates.)
• JIS number 657 is listed for both classes B4604 and B4606, but we think this is an error. Toho Kōki received JIS 1452 for pipe wrenches and it should have been listed separately.
• The scan shows class "B4624" for JIS 1448 and 2356, but this has been corrected to B4604.
• JIS 2356 (Yamaco) originally tested in class B4605, and some reports give the test date as 29.1.30 when class B4605 was folded into class B4604.
• The certifications in the above table have all been entered into the JIS database.

1955 JIS Summary for Class B4614

Fig. 32. JIS Class B4614 from 1955 Factory Name List.

The scan in Fig. 32 shows the JIS certifications for Class B4614 (combination pliers), as published on page 38 of the 1955 Factory Name List.

This report omits the dates of the certifications, and although the JIS class is specified, no further notes are provided.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date known from other reports.

Comments on JIS 1955 Class B4614 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 28, corresponding to 1953. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1955 JIS Summary for Classes B4623-B4625

Fig. 33. JIS Classes B4623-B4625 from 1955 Factory Name List.

The composite scan in Fig. 33 shows the JIS certifications for classes B4623, B4624, and B4625, as published on pages 38 and 39 of the 1955 Factory Name List.

This report omits the dates of the certifications, but does include the JIS classes. In addition, class B4623 includes a note "1, 2 級", a reference to the two jaw types specified in the standard.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date known from other reports.

Comments on JIS 1955 Classes B4623-B4625 Data

• The Showa era date when known from other reports has been added for convenience.
• The earliest date in the table is for Showa 26, corresponding to 1951. (Add 1925 to convert Showa dates.)
• JIS 647 (Eiko) is currently the lowest known JIS number. Pliers in classes B4623-B4625 and wrenches in classes B4604-B4606 share the earliest JIS certification date of June 28, 1951.
• The dates for JIS 1222 (Morioka) and JIS 3489 (Ōyane) have been estimated from adjacent JIS numbers.
• The certifications in the above table have all been entered into the JIS database.

1955 JIS Summary for Class B4630

Fig. 34. JIS Class B4630 from 1955 Factory Name List.

The scan in Fig. 34 shows the JIS certifications for class B4630, as published on page 39 of the 1955 Factory Name List.

This report omits the dates of the certifications, and although the JIS class is specified, no further notes are provided.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date known from other reports.

Comments on JIS 1955 Class B4630 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 27, corresponding to 1952. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1955 JIS Summary for Class B4631

Fig. 35. JIS Class B4631 from 1955 Factory Name List.

The scan in Fig. 35 shows the JIS certifications for class B4631 (needlenose or "radio" pliers), as published on page 39 of the 1955 Factory Name List.

This report provides the JIS numbers but omits the dates of the certifications. The report covers only JIS class B4631, and no product notes are needed for this class.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date known from other reports.

Comments on JIS 1955 Class B4631 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 28, corresponding to 1953. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1958 JIS Factory Name List

In 1958 the Japanese Standards Association published its second "Factory Name List" as a summary of current JIS certifications. The report was similar to the previous edition and did not provide the test dates, but product notes were included for certain classes.

We have extracted scans from the 1958 Factory Name List for classes B4604/B4606, B4614, B4623-B4625, B4630, B4631, B4636-B4641, and B4643, which are presented in the figures below.

1958 JIS Summary for Classes B4604 and B4606

Fig. 36. JIS Classes B4604 and B4606 from 1958 Factory Name List.

The scan in Fig. 36 shows the JIS certifications for classes B4604 (adjustable wrenches) and B4606 (pipe wrenches), as published on page 40 of the 1958 Factory Name List.

As with the previous report, this report omits the dates of the certifications, but it does provide notes for the product specifications, such as the jaw offset angle and "strong" type.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date known from other reports.

Comments on JIS 1958 Class B4604 and B4606 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 26, corresponding to 1951. (Add 1925 to convert Showa dates.)
• Note that JIS number 1452 for class B4606 is now separate from JIS 657, as it should have been in the previous report.
• JIS 2356 (Yamaco) originally tested in class B4605, and some reports give the test date as 29.1.30 when class B4605 was folded into class B4604.
• This is currently the earliest known report to includes notes for "強力形" ("Strong" or "Heavy" grade), as seen for JIS 658 and 1452.
• The certifications in the above table have all been entered into the JIS database.

1958 JIS Summary for Class B4614

Fig. 37. JIS Class B4614 from 1958 Factory Name List.

The scan in Fig. 37 shows the JIS certifications for class B4614 (combination pliers), as published on page 42 of the 1958 Factory Name List.

As with the previous report, this report omits the dates of the certifications.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date known from other reports.

Comments on JIS 1958 Class B4614 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 28, corresponding to 1953. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1958 JIS Summary for Classes B4623-B4625

Fig. 38. JIS Classes B4623-B4625 from 1958 Factory Name List.

The composite scan in Fig. 38 shows the JIS certifications for classes B4623, B4624, and B4625, as published on pages 39 and 40 of the 1958 Factory Name List.

As with the previous report, this report omits the dates of the certifications, but it does provide notes for the product specifications.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date when known from other reports.

Comments on JIS 1958 Classes B4623-B4625 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 26, corresponding to 1951. (Add 1925 to convert Showa dates.)
• JIS 4092 (Showa Kikai) is incorrectly listed as 4072 in the scan.
• The certifications in the above table have all been entered into the JIS database.

1958 JIS Summary for Class B4630

Fig. 39. JIS Class B4630 from 1958 Factory Name List.

The scan in Fig. 39 shows the JIS certifications for class B4630, as published on page 42 the 1958 Factory Name List.

As with the previous report, this report omits the dates of the certifications.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date known from other reports.

Comments on JIS 1958 Class B4630 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 27, corresponding to 1952. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1958 JIS Summary for Class B4631

Fig. 40. JIS Class B4631 from 1958 Factory Name List.

The scan in Fig. 40 shows the JIS certifications for class B4631, as published on page 42 the 1958 Factory Name List.

As with the previous report, this report omits the dates of the certifications.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date known from other reports.

Comments on JIS 1958 Class B4631 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 28, corresponding to 1953. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1958 JIS Summary for Class B4632

Fig. 41. JIS Class B4632 from 1958 Factory Name List.

The scan in Fig. 41 shows the JIS certifications for class B4632, as published on page 42 the 1958 Factory Name List.

As with the previous report, this report omits the dates of the certifications.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date known from other reports.

Comments on JIS 1958 Class B4632 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 30, corresponding to 1955. (Add 1925 to convert Showa dates.)
• The test dates for JIS 4250 (Kyoto Kikai) and 4251 (Kyoto Kikai Kōgu) have been estimated based on the sequence of JIS 4246-4249 on 30.9.6.
• The certifications in the above table have all been entered into the JIS database.

1958 JIS Summary for Classes B4636, B4637, and B4639

Fig. 42. JIS Classes B4636, B4637, and B4639 from 1958 Factory Name List.

The scan in Fig. 42 shows the JIS certifications for classes B4636, B4637, and B4639, as published on page 43 the 1958 Factory Name List.

As with the previous report, this report omits the dates of the certifications.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date when known from other reports.

Comments on JIS 1958 Classes B4636, B4637, and B4639 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 30, corresponding to 1955. (Add 1925 to convert Showa dates.)
• JIS 4249 is assumed to have the same date as the other registrations in sequence.
• The certifications in the above table have all been entered into the JIS database.

1958 JIS Summary for Classes B4638, B4640, and B4641

Fig. 43. JIS Classes B4638, B4640, and B4641 from 1958 Factory Name List.

The scan in Fig. 43 shows the JIS certifications for classes B4638, B4640, and B4641, as published on page 44 the 1958 Factory Name List.

As with the previous report, this report omits the dates of the certifications.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date when known from other reports.

Comments on JIS 1958 Classes B4638, B4640, and B4641 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 32, corresponding to 1957. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1958 JIS Summary for Class B4643

Fig. 44. JIS Classes B4643 from 1958 Factory Name List.

The scan in Fig. 44 shows the JIS certifications for class B4643, as published on page 44 the 1958 Factory Name List.

As with the previous report, this report omits the dates of the certifications.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date when known from other reports.

Comments on JIS 1958 Class B4643 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 33, corresponding to 1958. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1962 JIS Certified List

Fig. 45. Cover of 1962 JIS Certified List.

In 1962 the Japanese Standards Association published the first JIS表示許可工場名簿 or "List of Factories Approved for JIS Certification". As with the previous Factory Name Lists, this was a directory of the factories with JIS certification in effect at the time.

For brevity we will refer to these reports as the "Certified List" in the particular year.

The scan in Fig. 45 shows the cover of the 1962 Certified List, as published by the Japanese Standards Association.

The 1962 Certified List was a substantial improvement over the previous summary publications, as it included the dates for the certifications and provided notes describing the tested products.

We have extracted data from the 1962 Certified List for classes B4604/B4606, B4614, B4623-B4625, B4630, B4631, B4632, B4636-B4641, and B4643, which are presented in the figures below.

1962 Report for JIS Classes B4604 and B4606

Fig. 46. JIS Classes B4604 and B4606 from 1962 Certified List.

The scan in Fig. 46 shows the JIS certifications for classes B4604 (adjustable wrenches) and B4606 (pipe wrenches), as published on pages 44-45 of the 1962 Certified List (JIS表示許可工場名簿).

The table below shows an approximate conversion of the above scan into Japanese text. The companies in the scan all appear in other scans and we were able to cut and paste most of the text from earlier OCR conversions.

Comments on 1962 Report for JIS Classes B4604 and B4606 Data

• The earliest date in the table is for Showa 26, corresponding to 1951. (Add 1925 to convert Showa dates.)
• Several notes in the scan include "230形", an obvious typo for "23°形".
• Note that JIS number 1452 (Toho Kōki) for class B4606 is now listed separately, but in the 1955 summary it had been aggregated with JIS 657.
• JIS 2356 (Yamaco) originally tested in class B4605, and some reports give the test date as January 30, 1954 when class B4605 was folded into class B4604.
• JIS 3064 (MCC) listed only class B4606 in 1955 and 1958, but now includes class B4604.
• The certifications in the above table have all been entered into the JIS database.

1962 Report for JIS B4614

Fig. 47. JIS Class B4614 from 1962 Report.

The scan in Fig. 47 shows the JIS certifications for class B4614 (combination pliers) from the 1962 report, as published on the CWC website.

We ran this scan through a Japanese OCR conversion and have placed the output in the table below.

Comments on JIS 1962 Class B4614 Data

• The earliest date in the table is for Showa 28, corresponding to 1953. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1962 Report for JIS Classes B4623, B4624, and B4625

Fig. 48. JIS Classes B4623, B4624, and B4625 from 1962 Certified List.

The scan in Fig. 48 shows the JIS certifications for classes B4623, B4624, and B4625, as published on page 45 of the 1962 Certified List (JIS表示許可工場名簿).

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1962 Classes B4623-B4625 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 26, corresponding to 1951. (Add 1925 to convert Showa dates.)
• JIS 4092 (Showa Kikai) is incorrectly listed as 4072 in the scan.

1962 Report for JIS B4630

Fig. 49. JIS Class B4630 from 1962 Report.

The scan in Fig. 49 shows the JIS certifications for Class B4630 (open-end wrenches) from the 1962 report, as published on the CWC website.

We ran this scan through a Japanese OCR conversion and have placed the output in the table below, with headers added for convenience.

Comments on JIS 1962 Class B4630 Data

• The earliest date in the table is for Showa 27, corresponding to 1952. (Add 1925 to convert Showa dates.)
• JIS numbers 7001, 8117, and 6036 include the "强力" characters in the "Notes" column to indicate "Strong" or "H" class.
• The certifications in the above table have all been entered into the JIS database.

1962 Report for JIS B4631

Fig. 50. JIS Class B4631 from 1962 Certified List.

The scan in Fig. 50 shows the JIS certifications for Class B4631 (needlenose pliers), as published on the page 46 of the 1962 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1962 Class B4631 Data

• The earliest date in the table is for Showa 28, corresponding to 1953. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1962 Report for JIS B4632

Fig. 51. JIS Class B4632 from 1962 Certified List.

The scan in Fig. 51 shows the JIS certifications for Class B4632 (box-end wrenches), as published on the page 46 of the 1962 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1962 Class B4632 Data

• The earliest date in the table is for Showa 30, corresponding to 1955. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1962 Report for JIS Classes B4636, B4637, and B4639

Fig. 52. JIS Classes B4636, B4637, and B4639 from 1962 Certified List.

The composite scan in Fig. 52 shows the JIS certifications for classes B4636, B4637, and B4639, as published on pages 46-47 of the 1962 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1962 Classes B4636, B4637, and B4639 Data

• The earliest date in the table is for Showa 30, corresponding to 1955. (Add 1925 to convert Showa dates.)
• The notes in the scan appear to be garbled, so we have used the notes from the 1958 FNL.
• The certifications in the above table have all been entered into the JIS database.

1962 Report for JIS Classes B4638, B4640, and B4641

Fig. 53. JIS Classes B4638, B4640, and B4641 from 1962 Certified List.

The scan in Fig. 53 shows the JIS certifications for classes B4638, B4640, and B4641, as published on page 47 of the 1962 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1962 Classes B4638, B4640, and B4641 Data

• The earliest date in the table is for Showa 32, corresponding to 1957. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1962 JIS Summary for Class B4643

Fig. 54. JIS Class B4643 from 1962 Certified List.

The scan in Fig. 54 shows the JIS certifications for class B4643, as published on page 47 the 1962 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1962 Class B4643 Data

• The earliest date in the table is for Showa 33, corresponding to 1958. (Add 1925 to convert Showa dates.)

1964 JIS Certified List

Data from the 1964 JIS Certified List is available for classes B4604, B4606, B4614, and B4630.

1964 Certified List for JIS Classes B4604 and B4606

Fig. 55. JIS Classes B4604 and B4606 from 1964 Certified List.

The composite scan in Fig. 55 shows the JIS certifications for classes B4604 and B4606, as published on pages 60 and 61 of the 1964 Certified List.

The table below shows an approximate conversion of the scan into Japanese text. The OCR conversion of the full scan didn't work well at all, so we ended up clipping small parts of the image to run through OCR.

Comments on JIS 1964 Class B4604 and B4606 Data

• The earliest date in the table is for Showa 26, corresponding to 1951. (Add 1925 to convert Showa dates.)
• Comparison with the 1962 Certified List shows that JIS number 655 (Sanjo Machinery) is no longer included.
• The entry for JIS 1447 has "230形" in the notes, an obvious typo for "23°形".
• The company name for JIS number 656 has changed from Nakajima Precision Forging in the 1962 report to TOP Kōgyō, and the date has changed from 26.6.28 to 38.1.28. More surprisingly, the footnote ② indicates pipe wrenches, but also mentions normal and strong grades and a 23 degree angle, which are typical specs for adjustable wrenches. We think this is an error and have corrected it to ① .
• The company name for JIS number 1449 has changed from "Shin Mitsubishi-den Kōgyō" in the 1955 report to just "Mitsubishi Den Kōgyō", but the factory name is the same.
• The company name for JIS number 2722 is now correctly listed as "Shin Sanda Kōgyō".
• The entry for JIS number 658 (Nippon Riki) has a footnote ② indicating pipe wrenches in both normal and strong grade, fully forged, and a 23° angle. We have reordered the notes to show that the fully forged and 23° angle attributes apply to ① adjustable wrenches.
• For JIS 2356 the 29.1.30 date in the scan is incorrect and has been corrected to 28.6.20.
• The certifications in the above table have all been entered into the JIS database.

1964 Certified List for JIS Class B4614

Fig. 56. JIS Class B4614 from 1964 Certified List.

The scan in Fig. 56 shows the JIS certifications for Class B4614 (combination pliers), as published on page 61 of the 1964 Certified List.

The table below shows an approximate conversion of the scan to Japanese text. Most of the data in the scan was the same as in the 1962 report, so we copied the data from 1962 into the table below and updated the changed entries.

Comments on JIS 1964 Class B4614 Data

• The earliest date in the table is for Showa 28, corresponding to 1953. (Add 1925 to convert Showa dates.)
• The company name for JIS 2717 is now TOP Kōgyō, instead of Nakajima Precision Forging in the 1962 report.
• JIS numbers 3195 and 7002 were present in 1962, but are no longer listed in 1964.
• The certifications in the above table have all been entered into the JIS database.

1964 Certified List for JIS Classes B4623-B4625

Fig. 57. JIS Classes B4623-B4625 from 1964 Certified List.

The scan in Fig. 57 shows the JIS certifications for Classes B4623-B4625, as published on page 62 of the 1964 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1964 Classes B4623-B4625 Data

• The earliest date in the table is for Showa 26, corresponding to 1951. (Add 1925 to convert Showa dates.)
• The scan shows class B4625 for JIS 1018, but it should be B4623 as in 1962 and 1967.
• The date for JIS 8191 in the scan is incorrect, and we have left it at the 1962 value.
• JIS 4092 (Showa Kikai) is incorrectly listed as 4072 in the scan.

1964 Certified List for JIS Class B4630

Fig. 58. JIS Class B4630 from 1964 Certified List.

The scan in Fig. 58 shows the JIS certifications for class B4630 (open-end wrenches), as published on page 62 of the 1964 Certified List.

The table below shows an approximate conversion of the scan to Japanese text. The OCR conversion for the notes field didn't work well, so the entries have been edited by hand.

Comments on JIS 1964 Class B4630 Data

• The earliest date in the table is for Showa 27, corresponding to 1952. (Add 1925 to convert Showa dates.)
• JIS number 7001 (for Matsudo) is dated 34.10.22 in the 1964 data, but 34.10.23 in the 1962 data.
• The name for JIS number 8986 is incorrectly shown as S.T.K. in the scan, but should be N.T.K.
• The date for JIS number 9589 (for Sugimoto Tankō) is incorrect and should be 38.9.17.
• JIS number 6039 (Toho Kōki) in the scan is incorrect and should be 6036, as it was in 1962.
• The certifications in the above table have all been entered into the JIS database.

1964 Report for JIS B4631

Fig. 59. JIS Class B4631 from 1964 Certified List.

The scan in Fig. 59 shows the JIS certifications for Class B4631 (needlenose pliers), as published on the page 62 of the 1964 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1964 Class B4631 Data

• The earliest date in the table is for Showa 28, corresponding to 1953. (Add 1925 to convert Showa dates.)
• The date for JIS 9785 in the scan is incorrect and should be 38.12.28, based on later reports.
• The certifications in the above table have all been entered into the JIS database.

1964 Report for JIS B4632

Fig. 60. JIS Class B4632 from 1964 Certified List.

The composite scan in Fig. 60 shows the JIS certifications for class B4632 (box-end wrenches), as published on the pages 62 and 63 of the 1964 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1964 Class B4632 Data

• The earliest date in the table is for Showa 30, corresponding to 1955. (Add 1925 to convert Showa dates.)
• JIS 4019 in the scan is incorrect and should be 4619.
• The certifications in the above table have all been entered into the JIS database.

1964 Report for JIS Classes B4636, B4637, and B4639

Fig. 61. JIS Classes B4636, B4637, and B4639 from 1964 Certified List.

The scan in Fig. 61 shows the JIS certifications for classes B4636, B4637, and B4639, as published on page 63 of the 1964 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1964 Classes B4636, B4637, and B4639 Data

• The earliest date in the table is for Showa 30, corresponding to 1955. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1964 Report for JIS Classes B4638, B4640, and B4641

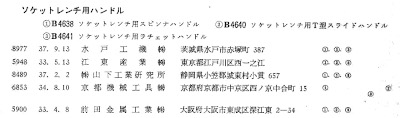

Fig. 62. JIS Classes B4638, B4640, and B4641 from 1964 Certified List.

The scan in Fig. 62 shows the JIS certifications for classes B4638, B4640, and B4641, as published on page 63 of the 1964 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1964 Classes B4638, B4640, and B4641 Data

• The earliest date in the table is for Showa 32, corresponding to 1957. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1964 JIS Summary for Class B4643

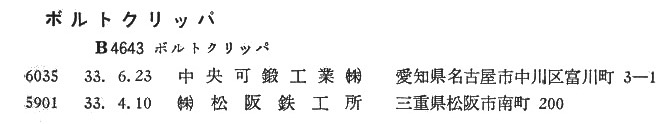

Fig. 63. JIS Class B4643 from 1964 Certified List.

The scan in Fig. 63 shows the JIS certifications for class B4643, as published on page 63 the 1964 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1964 Class B4643 Data

• The earliest date in the table is for Showa 33, corresponding to 1958. (Add 1925 to convert Showa dates.)

1967 JIS Certified List

The 1967 JIS Certified List has a different format from previous editions, and unfortunately (and inexplicably) omits the test dates from the tables! It also seems not to have page numbers, so we can't give a very precise reference for the extracted scans.

1967 Report for JIS Classes B4604 and B4606

Fig. 64. JIS Classes B4604 and B4606 from 1967 Certified List.

The scan in Fig. 64 shows the JIS certifications for classes B4604 and B4606, as published in the 1967 Certified List.

Unfortunately the date has been omitted from the table, but most of these certifications were already known from other sources.

The table below shows an approximate conversion of the scan into Japanese text. The date has been added when known from other reports.

Comments on JIS 1967 Class B4604 and B4606 Data

• The earliest date in the table is for Showa 26, corresponding to 1951. (Add 1925 to convert Showa dates.)
• JIS 657 (Toho Kōki) now includes the pipe wrench certification previously reported as JIS 1452.
• JIS 3064 (MCC) previously included B4604 P (partially forged), but now shows only B4606.
• The certifications in the above table have all been entered into the JIS database.

1967 Report for JIS Class B4614

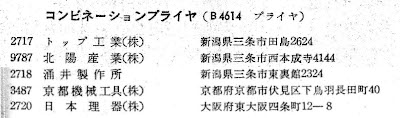

Fig. 65. JIS Class B4614 from 1967 Certified List.

The composite scan in Fig. 65 shows the JIS certifications for classes B4614, as published in the 1967 Certified List. (In the original publication the table spanned two pages.)

Unfortunately the date has been omitted from the table, but these certifications were already known from other sources.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date when known from other reports.

Comments on JIS 1967 Class B4614 Data

• The earliest date in the table is for Showa 28, corresponding to 1953. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1967 Report for JIS Classes B4623-B4625

Fig. 66. JIS Classes B4623-B4625 from 1967 Certified List.

The scan in Fig. 66 shows the JIS certifications for classes B4623-B4625, as published in the 1967 Certified List.

Unfortunately the date has been omitted from the table, but most of these certifications were already known from other sources.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date when known from other reports.

Comments on JIS 1967 Classes B4623-B4625 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 26, corresponding to 1951. (Add 1925 to convert Showa dates.)

1967 Report for JIS Class B4630

Fig. 67. JIS Class B4630 from 1967 Certified List.

The scan in Fig. 67 shows the JIS certifications for class B4630 (open-end wrenches) from the 1967 Certified List, as published on the CWC website.

Unfortunately the date has been omitted from the table, but most of these certifications were already known from other sources.

The table below has an approximate conversion of the scan into Japanese text. Many of the characters in the notes field were too small for the OCR to handle, so we have filled in some of them by hand.

Since the scan is missing the date field, where possible we have filled it in from known JIS certifications in prior years.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date when known from other reports.

Comments on JIS 1967 Class B4630 Data

• The earliest date in the table is for Showa 27, corresponding to 1952. (Add 1925 to convert Showa dates.)
• The date reported for JIS number 364147 is believed to be incorrect, and should be 39.9.15 (September 15, 1964). (Source: CWC)
• JIS number 6039 (Toho Kōki) in the scan is incorrect and should be 6036, as it was in 1962.
• The certifications in the above table have all been entered into the JIS database.

1967 Report for JIS Class B4631

Fig. 68. JIS Class B4631 from 1967 Certified List.

The scan in Fig. 68 shows the JIS certifications for class B4631 (needlenose or "radio" pliers), as published in the 1967 Certified List.

Unfortunately the date has been omitted from the table, but most of these certifications were already known from other sources.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date known from other reports.

Comments on JIS 1967 Class B4631 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 28, corresponding to 1953. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1967 Report for JIS Class B4632

Fig. 69. JIS Class B4632 from 1967 Certified List.

The scan in Fig. 69 shows the JIS certifications for class B4632 (box-end wrenches), as published in the 1967 Certified List.

Unfortunately the date has been omitted from the table, but most of these certifications were already known from other sources.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date known from other reports.

Comments on JIS 1967 Class B4632 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 30, corresponding to 1955. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1967 Report for JIS Class B4635

Fig. 70. JIS Class B4635 from 1967 Certified List.

The scan in Fig. 70 shows the JIS certifications for class B4635 (diagonal cutters), as published on page 117 of the 1967 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date when known from other reports.

Comments on JIS 1967 Class B4635 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 40, corresponding to 1965. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1967 Report for JIS Classes B4636, B4637, and B4639

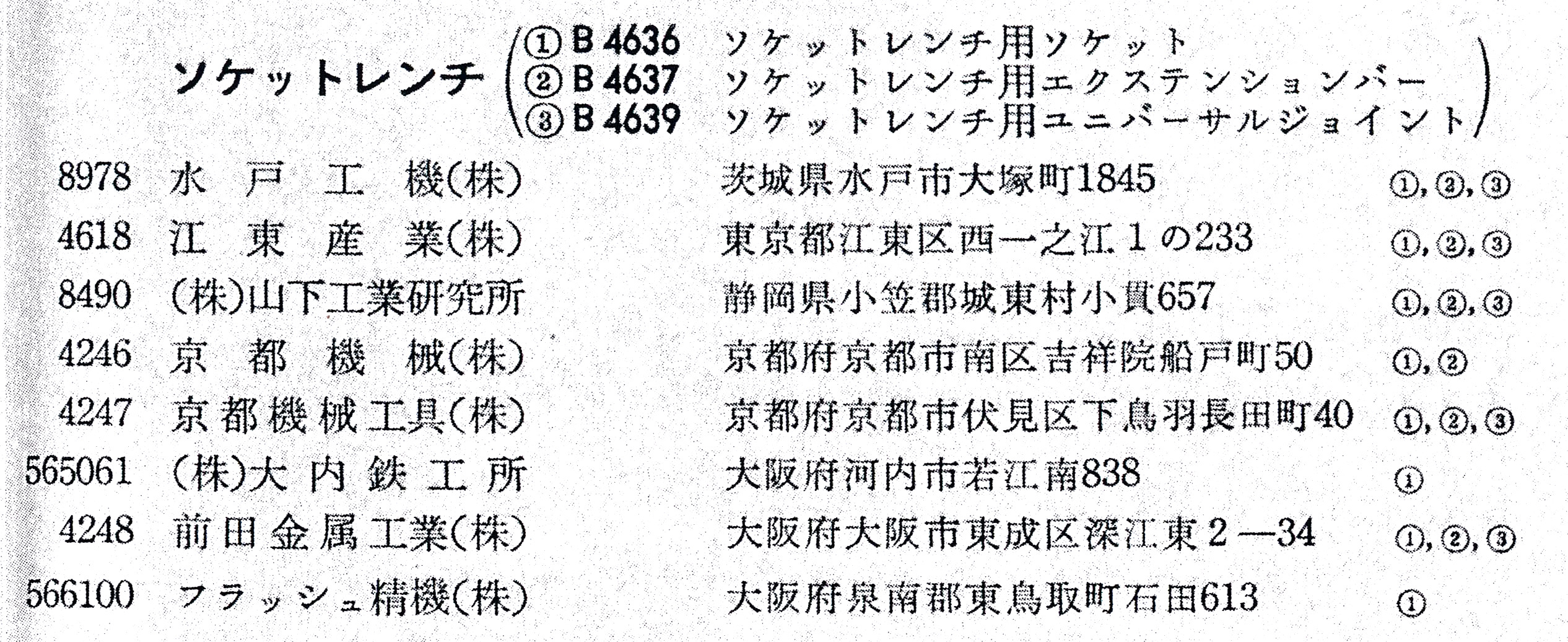

Fig. 71. JIS Classes B4636, B4637, and B4639 from 1967 Certified List.

The scan in Fig. 71 shows the JIS certifications for classes B4636, B4637, and B4639, as published on page 117 of the 1967 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date when known from other reports.

Comments on JIS 1967 Classes B4636, B4637, and B4639 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 30, corresponding to 1955. (Add 1925 to convert Showa dates.)
• The date for JIS 565061 has been estimated.
• The certifications in the above table have all been entered into the JIS database.

1967 Report for JIS Classes B4638, B4640, and B4641

Fig. 72. JIS Classes B4638, B4640, and B4641 from 1967 Certified List.

The scan in Fig. 72 shows the JIS certifications for classes B4638, B4640, and B4641, as published on page 117 of the 1967 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date when known from other reports.

Comments on JIS 1967 Classes B4638, B4640, and B4641 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 33, corresponding to 1958. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1967 Report for JIS Class B4643

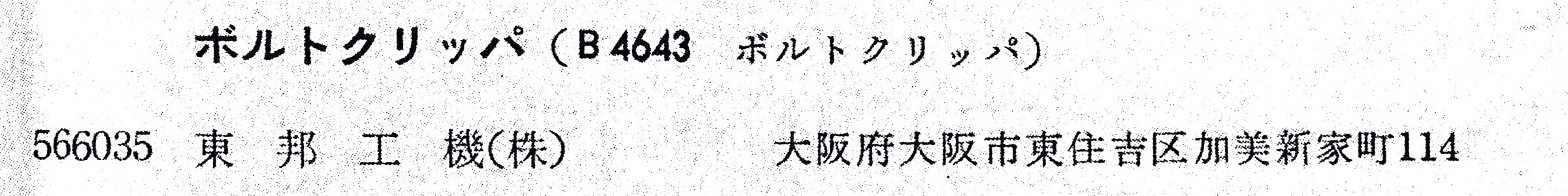

Fig. 73. JIS Class B4643 from 1967 Certified List.

The scan in Fig. 73 shows the JIS certifications for class B4643, as published on page 117 of the 1967 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have also added the test date when known from other reports.

Comments on JIS 1967 Class B4643 Data

• The Showa era date known from other reports has been added for convenience.
• The earliest date in the table is for Showa 41, corresponding to 1966. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1972 JIS Certified List

The 1972 JIS Certified List is similar to the 1962 and 1964 reports in that it includes all of data fields. We have extracted scans for classes B4604/B4606, B4614, B4623-B4625, B4630, B4631, B4632, B4635, B4636-B4641, and B4643.

1972 Report for JIS Classes B4604 and B4606

Fig. 74. JIS Classes B4604 and B4606 from 1972 Certified List.

The scan in Fig. 74 shows the JIS certifications for classes B4604 and B4606, as published on page 162 of the 1972 Certified List.

There's no key to explain the fourth column of the table, but based on a later report it appears to be the Japanese postal code.

The table below has an approximate conversion of the above scan into Japanese text, with headers added for convenience. The fourth column (postal codes) has been omitted since it's not relevant to our application.

Comments on JIS 1972 Class B4604 and B4606 Data

• The earliest date in the table is for Showa 26, corresponding to 1951. (Add 1925 to convert Showa dates.)
• In the scan JIS 657 (Toho Kōki) has notes only for ① , but should show ② in H grade as well, as was indicated in prior Certified Lists.
• The certifications in the above table have all been entered into the JIS database.

1972 Report for JIS Class B4614

Fig. 75. JIS Class B4614 from 1972 Certified List.

The scan in Fig. 75 shows the JIS certifications for classes B4614, as published on page 163 of the 1972 Certified List.

There's no key to explain the fourth column of the table, but based on a later report it appears to be the Japanese postal code.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. The fourth column (postal codes) has been omitted since it's not relevant to our application.

Comments on JIS 1972 Class B4614 Data

• The earliest date in the table is for Showa 28, corresponding to 1953. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1972 Report for JIS Classes B4623-B4625

Fig. 76. JIS Classes B4623-B4625 from 1972 Certified List.

The scan in Fig. 76 shows the JIS certifications for classes B4623, B4624, and B4625, as published on page 163 of the 1972 Certified List.

There's no key to explain the fourth column of the table, but based on a later report it appears to be the Japanese postal code.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. The fourth column (postal codes) has been omitted since it's not relevant to our application.

Comments on JIS 1972 Classes B4623-B4625 Data

• The earliest date in the table is for Showa 27, corresponding to 1952. (Add 1925 to convert Showa dates.)
• The date in the scan for JIS 1223 (Hanazono) is incorrect and should be 27.1.16.
• JIS 1223 (Hanazono) shows a new factory address.
• The certifications in the above table have all been entered into the JIS database.

1972 Report for JIS Class B4630

Fig. 77. JIS Class B4630 from 1972 Certified List.

The composite scan in Fig. 77 shows the JIS certifications for class B4630, as published on pages 163 and 164 of the 1972 Certified List.

There's no key to explain the fourth column of the table, but based on a later report it appears to be the Japanese postal code.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. The fourth column (postal codes) has been omitted since it's not relevant to our application.

Comments on JIS 1972 Class B4630 Data

• The earliest date in the table is for Showa 27, corresponding to 1952. (Add 1925 to convert Showa dates.)
• JIS number 6039 (Toho Kōki) in the scan is incorrect and should be 6036, as it was in 1962.
• The certifications in the above table have all been entered into the JIS database.

1972 Report for JIS Class B4631

Fig. 78. JIS Class B4631 from 1972 Certified List.

The scan in Fig. 78 shows the JIS certifications for class B4631, as published on page 164 of the 1972 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. The fourth column (postal codes) has been omitted since it's not relevant to our application.

Comments on JIS 1972 Class B4631 Data

• The earliest date in the table is for Showa 28, corresponding to 1953. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1972 Report for JIS Class B4632

Fig. 79. JIS Class B4632 from 1972 Certified List.

The scan in Fig. 79 shows the JIS certifications for class B4632, as published on page 164 of the 1972 Certified List.

There's no key to explain the fourth column of the table, but based on a later report it appears to be the Japanese postal code.

The table below has an approximate conversion of the above scan into Japanese text, with headers added for convenience. The fourth column (postal codes) has been omitted since it's not relevant to our application.

Comments on JIS 1972 Class B4632 Data

• The earliest date in the table is for Showa 31, corresponding to 1956. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1972 Report for JIS Class B4635

Fig. 80. JIS Class B4635 from 1972 Certified List.

The scan in Fig. 80 shows the JIS certifications for class B4635, as published on page 165 of the 1972 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. The fourth column in the scan appears to be the Japanese postal code and has been omitted.

Comments on JIS 1972 Class B4635 Data

• The earliest date in the table is for Showa 40, corresponding to 1965. (Add 1925 to convert Showa dates.)
• The notes field of the scan for 370217 (Maruto) is believed to be incorrect. Class B4635 had only one grade of testing, but the standard itself was considered "H" grade.
• The certifications in the above table have all been entered into the JIS database.

1972 Report for JIS Class B4636, B4637, and B4639

Fig. 81. JIS Classes B4636, B4637, and B4639 from 1972 Certified List.

The scan in Fig. 81 shows the JIS certifications for classes B4636, B4637, and B4639, as published on page 165 of the 1972 Certified List.

The fourth column of the table appears to be the Japanese postal code.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1972 Classes B4636, B4637, and B4639 Data

• The earliest date in the table is for Showa 30, corresponding to 1955. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1972 Report for JIS Classes B4638, B4640, and B4641

Fig. 82. JIS Classes B4638, B4640, and B4641 from 1972 Certified List.

The scan in Fig. 82 shows the JIS certifications for classes B4638, B4640, and B4641, as published on page 165 of the 1972 Certified List.

The fourth column of the table appears to be the Japanese postal code.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience.

Comments on JIS 1972 Classes B4638, B4640, and B4641 Data

• The earliest date in the table is for Showa 33, corresponding to 1958. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1972 Report for JIS Class B4643

Fig. 83. JIS Class B4643 from 1972 Certified List.

The scan in Fig. 83 shows the JIS certifications for class B4643, as published on page 165 of the 1972 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. The fourth column of the table appears to be the Japanese postal code and has been omitted.

Comments on JIS 1972 Class B4643 Data

• The earliest date in the table is for Showa 41, corresponding to 1966. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1982 JIS Certified List

The 1982 JIS Certified List was published with a very serious deficiency in that the product notes were omitted. The loss of the product notes is most serious in the case of reports covering multiple product classes, as the classes applying to a particular company are supposed to be identified by numbered circles in the notes field. Ironically a number of the reports supply a key in the heading with numbered circles for the JIS classes, but since the notes were omitted we don't even know which classes apply!

In an attempt to salvage some utility from the 1982 report, we have copied the notes field from the 1972 report, but this will obviously overlook any changes that might have occurred in the decade between the reports.

The 1982 published reports include the Japanese postal code as the fourth column of the tables, but since this is not relevant for our application, it has been omitted from our OCR conversions.

1982 Report for JIS Classes B4604 and B4606

Fig. 84. JIS Classes B4604 and B4606 from 1982 Certified List.

The scan in Fig. 84 shows the JIS certifications for Class B4604 and B4606 from the 1982 Certified List.

Note the heading at the top providing a key to the JIS classes, but unfortunately and inexplicably the scan does not include a notes column for the product descriptions.

The table below has an approximate conversion of the above scan into Japanese text, with headers added for convenience. Since the essential footnotes for product classes were omitted from the scan, we have copied the notes from the 1972 Certified List.

The fourth column (postal codes) has been omitted since it's not relevant to our application.

Comments on JIS 1982 Class B4604 and B4606 Data

• The earliest date in the table is for Showa 26, corresponding to 1951. (Add 1925 to convert Showa dates.)
• Product class footnotes are from 1972 (1999 for JIS 376004 and 374091) and may not be accurate for 1982.
• JIS number "544" in the scan is a typo and has been corrected to 657.
• The certifications in the above table have all been entered into the JIS database.

1982 Report for JIS Class B4614

Fig. 85. JIS Classes B4614 from 1982 Certified List.

The scan in Fig. 85 shows the JIS certifications for Class B4614, as published on page 208 of the 1982 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. We have omitted the fourth column (postal codes) since it's not relevant to our application.

Comments on JIS 1982 Class B4614 Data

• The earliest date in the table is for Showa 28, corresponding to 1953. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1982 Report for JIS Classes B4623-B4625

Fig. 86. JIS Classes B4623-B4625 from 1982 Certified List.

The scan in Fig. 86 shows the JIS certifications for Classes B4623-B4625, as published on page 208 of the 1982 Certified List.

Note that the heading provides a key for three JIS classes, but the notes to indicate the class(es) applicable to each company have been omitted, leaving the scan with only limited utility.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. Since the essential footnotes for product classes were omitted from the scan, we have copied the notes from the 1972 Certified List.

The fourth column (postal codes) has been omitted since it's not relevant to our application.

Comments on JIS 1982 Classes B4623-B4625 Data

• The earliest date in the table is for Showa 27, corresponding to 1952. (Add 1925 to convert Showa dates.)
• Product class footnotes are from 1972 unless otherwise noted and may not be accurate.
• The notes for 367229 (Koyama) have been updated to add B4625, as reported on the company website.
• The street number in the scan for JIS 1223 (Hanazono) is incorrect and should be 1130.
• The notes for 1223 (Hanazono) have been updated to add B4625 "H" grade, based on the recent re-certification.
• The B4623 class for JIS 579132 is presumed based on the 1999 Summary.
• The certifications in the above table have all been entered into the JIS database.

1982 Report for JIS Class B4630

Fig. 87. JIS Class B4630 from 1982 Certified List.

The scan in Fig. 87 shows the JIS certifications for class B4630 (open-end wrenches), as published on page 209 of the 1982 Certified List.

Unfortunately the scan does not include a notes column for the product descriptions.

The table below has an approximate conversion of the scan into Japanese text, with headers added for convenience. The fourth column (postal codes) has been omitted since it's not relevant to our application.

Comments on JIS 1982 Class B4630 Data

• The earliest date in the table is for Showa 27, corresponding to 1952. (Add 1925 to convert Showa dates.)
• For JIS 1974 (Showa) the scan shows an incorrect date 27.11.20, which should be 27.11.10.
• JIS number 1977 (KTC) is listed for both the Fushimi-ku and Kumiyama factories. The Fushimi-ku factory continued to operate for some years after the move to Kumiyama.
• The date reported for JIS number 364147 is believed to be incorrect, and should be 39.9.15 (September 15, 1964). (Source: CWC)
• The date reported for JIS number 366008 is believed to be incorrect, and should be between 41.2.1 and 41.4.14 (February 1, 1966 and April 14, 1966). (Source: CWC)
• JIS number 380243 for Kobayashi was later moved into 380242, the number reported in the 1999 SR.
• The address for JIS 380243 has a typo in the original scan:
  ...三条市大字野目... should be
  ...三条市大字塚野目...
• JIS number 6039 (Toho Kōki) in the scan is incorrect and should be 6036, as it was in 1962.
• The certifications in the above table have all been entered into the JIS database.

1982 Report for JIS Class B4631

Fig. 88. JIS Class B4631 from 1982 Certified List.

The scan in Fig. 88 shows the JIS certifications for Class B4631 (needlenose pliers), as published on page 209 of the 1982 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. The fourth column (postal codes) has been omitted since it's not relevant to our application.

Comments on JIS 1982 Class B4631 Data

• The earliest date in the table is for Showa 38, corresponding to 1963. (Add 1925 to convert Showa dates.)
• The street number in the scan for JIS 372259 is incorrect and should be 1240.
• The certifications in the above table have all been entered into the JIS database.

1982 Report for JIS Class B4632

Fig. 89. JIS Class B4632 from 1982 Certified List.

The composite scan in Fig. 89 shows the JIS certifications for Class B4632 (box-end wrenches), as published on pages 209 and 210 of the 1982 Certified List.

The table below has an approximate conversion of the above scan into Japanese text, with headers added for convenience. The fourth column (postal codes) has been omitted since it's not relevant to our application.

Comments on JIS 1982 Class B4632 Data

• The earliest date in the table is for Showa 38, corresponding to 1963. (Add 1925 to convert Showa dates.)
• The address for JIS 9181 in the scan is incorrect. On July 21, 1981 a new factory address for Maeda was reported on page 81 of the 1981-11 Monthly report, but the JIS number was incorrectly listed as 9185. As a result of the JIS error, the address in the 1982 CL was not updated. We have corrected the address.
• The certifications in the above table have all been entered into the JIS database.

1982 Report for JIS Class B4635

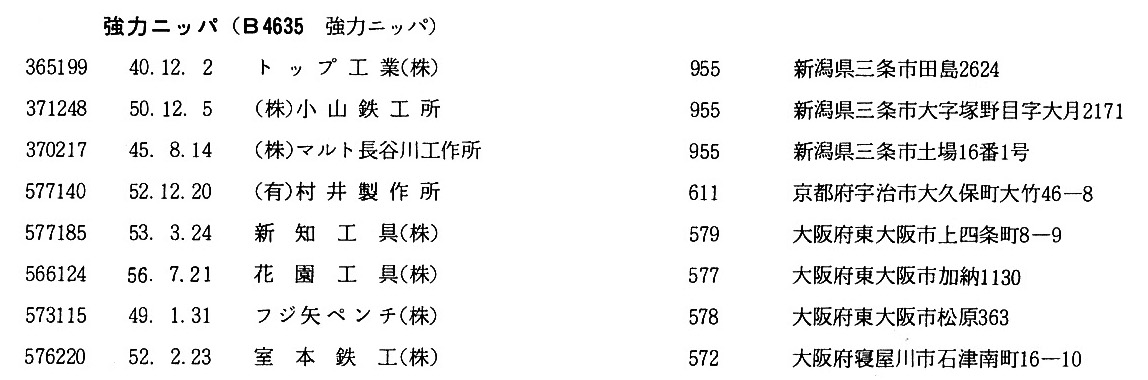

Fig. 90. JIS Class B4635 from 1982 Certified List.

The scan in Fig. 90 shows the JIS certifications for Class B4635 (diagonal cutters), as published on page 210 of the 1982 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. The fourth column in the scan appears to be the Japanese postal code and has been omitted.

Comments on JIS 1982 Class B4635 Data

• The earliest date in the table is for Showa 40, corresponding to 1965. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1982 Report for JIS Classes B4636, B4637, and B4639

Fig. 91. JIS Classes B4636, B4637, and B4639 from 1982 Certified List.

The scan in Fig. 91 shows the JIS certifications for classes B4636, B4637, and B4639, as published on page 210 of the 1982 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. Since the essential footnotes for product classes have been omitted, we have copied the notes from the 1972 Certified List.

The fourth column in the scan appears to be the Japanese postal code and has been omitted.

Comments on JIS 1982 Classes B4636, B4637, and B4639 Data

• The earliest date in the table is for Showa 30, corresponding to 1955. (Add 1925 to convert Showa dates.)
• The date for JIS 575083 is incorrect and should be 50.9.29, based on the cancellation in MR 1984-08 p. 55.
• Product classes for JIS 575083 were obtained from the cancellation in MR 1984-08 p. 55.
• Product class footnotes are from 1972 and may not be accurate.
• The certifications in the above table have all been entered into the JIS database, except for JIS 375073 and 579043, for which no product information is available.

1982 Report for JIS Classes B4638, B4640, and B4641

Fig. 92. JIS Classes B4638, B4640, and B4641 from 1982 Certified List.

The composite scan in Fig. 92 shows the JIS certifications for classes B4638, B4640, and B4641, as published on pages 210 and 211 of the 1982 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. Since the essential footnotes for product classes have been omitted, we have copied the notes from the 1972 Certified List, plus additions based on known earlier certifications..

Comments on JIS 1982 Classes B4638, B4640, and B4641 Data

• The earliest date in the table is for Showa 33, corresponding to 1958. (Add 1925 to convert Showa dates.)
• Product classes for JIS 576032 were obtained from the cancellation in MR 1984-08 p. 55.
• Product class footnotes are from 1972 and may not be accurate.
• The certifications in the above table have all been entered into the JIS database, except for JIS 579044, for which no product information is available.

1982 Report for JIS Class B4643

Fig. 93. JIS Class B4643 from 1982 Certified List.

The scan in Fig. 93 shows the JIS certifications for class B4643, as published on page 211 of the 1982 Certified List.

The table below shows an approximate conversion of the above scan into Japanese text, with headers added for convenience. The fourth column of the table appears to be the Japanese postal code and has been omitted.

Comments on JIS 1982 Class B4643 Data

• The earliest date in the table is for Showa 41, corresponding to 1966. (Add 1925 to convert Showa dates.)
• The certifications in the above table have all been entered into the JIS database.

1999 JIS Summary Website Archive

In 1999 the JISC website published the JIS certifications in effect at that time, at least for a brief time. But it was long enough for the pages to be archived, and as a result we have online access to this data. We'll refer to this resource as the 1999 JIS Summary.

This data is much easier to work with for us — since everything is already in machine-readable text, no OCR conversion step was necessary.

The 1999 data is organized somewhat differently than the earlier reports. In particular, the data is broken out by reporting region, and no footnotes are provided to indicate the product characteristics (e.g. strong grade).

In addition, the data is grouped by a product super-class combining several JIS classes.

Since the reporting region is not relevant for our purposes, we have folded all of the regions into one table.

The following link has the 1999 Summary (in Japanese).

• JIS Classes [External Link]

1999 Summary for Super-Class B010 (Pliers)

The 1999 Summary provides data for various types of pliers in super-class B010, consisting of JIS classes B4623, B4625, B4631, and B4635 in this sample.

The data in the table below was extracted from the website archive, with minor edits for presentation.

Comments on 1999 JIS Summary for Super-Class B010

• The certifications in the above table have all been entered into the JIS database.

1999 Summary for Super-Class B013 (Wrenches)

The 1999 Summary groups JIS classes B4604 and B4606 (adjustable and pipe wrenches) under the B013 super-class.

The data in the table below was extracted from the website archive, with minor edits for presentation.

Comments on JIS 1999 Summary for Class B4604 and B4606 Data

• Note that JIS number 657 for Toho Kōki is listed on 1985-06-13 with class B4606, but not with class B4604. Both classes B4604 and B4606 are known to have been re-registered on this date after a factory move, and the B4604 registration was later released on 2000-07-12. The absence of B4604 in this report may indicate that the registration had been suspended some time before its eventual release.
• The certifications in the above table have all been entered into the JIS database.

1999 Report for Super-Class B027 (Fixed Wrenches)

The 1999 Summary provides data for several types of fixed wrenches in super-class B027, which covers JIS classes B4630 (open-end wrenches), B4632 (box-end wrenches), and B4651 (combination wrenches).

The data in the table below was extracted from the website archive, with minor edits for presentation.

Comments on JIS 1999 Summary for Super-Class B027

• JIS 364147 (Hokuyo Sangyō) for class B4630 was cancelled on February 17, 1993, but has magically come back to life in this report. We think that what happened was that 369042 had been revoked in the early 1990s and then reassigned to JIS 364147, as part of the JIS consolidations occurring around that time. Then when certificate 364147 for B4630 was cancelled in 1993, it left 364147 still applying to B4632.
• The certifications in the above table have all been entered into the JIS database.

1999 Report for Super-Class B043 (Combination Pliers)

The 1999 Summary provides data for combination pliers in super-class B043, consisting of just JIS class B4614 in this sample.

The data in the table below was extracted from the website archive, with minor edits for presentation.

Comments on JIS 1999 Summary for Super-Class B043

• The certifications in the above table have all been entered into the JIS database.

1999 Report for Super-Class B070 (Waterpump Pliers)

The 1999 Summary data in super-class B070 includes JIS class B4626 (waterpump pliers). This is actually the first summary report to include class B4626.

The data in the table below was extracted from the website archive, with minor edits for presentation.

Comments on JIS 1999 Summary for Super-Class B070

• The certifications in the above table have all been entered into the JIS database.

1999 Report for Super-Class B072 (Socket Wrenches)

The 1999 Summary provides data for socket wrenches in super-class B072, which consists of JIS classes B4636-1 and 00225 in this sample.

The oddball class 00225 needs some explanation. In 1998 the JIS standards for socket wrenches were revised to classify tools based only on drive size, using class B4636-1 for 12.7mm square drive and class B4636-2 for other square drive sizes from 6.3 to 25mm. Prior to 1998 socket tools had been tested based on functional groups (sockets, ratchets, extensions, etc.) without regard to drive size, and apparently some of the prior tests that couldn't be grouped into the new classes were placed in 00225 instead.

The data in the table below was extracted from the website archive, with minor edits for presentation.

Comments on JIS 1999 Summary for Super-Class B072 Data

• The inclusion of JIS number 4248 (Maeda) in class B4636-1 at Fukae would be for old classes B4637 and B4639, which continued after B4636 was canceled on June 17, 1985. See the 1985-10 Monthly Report for details.

1999 Report for Super-Class B090 (Bolt Cutters)

The 1999 Summary data in super-class B090 includes JIS class B4643 (bolt cutters).

The data in the table below was extracted from the website archive, with minor edits for presentation.

Comments on JIS 1999 Summary for Super-Class B090

• The certifications in the above table have all been entered into the JIS database.
